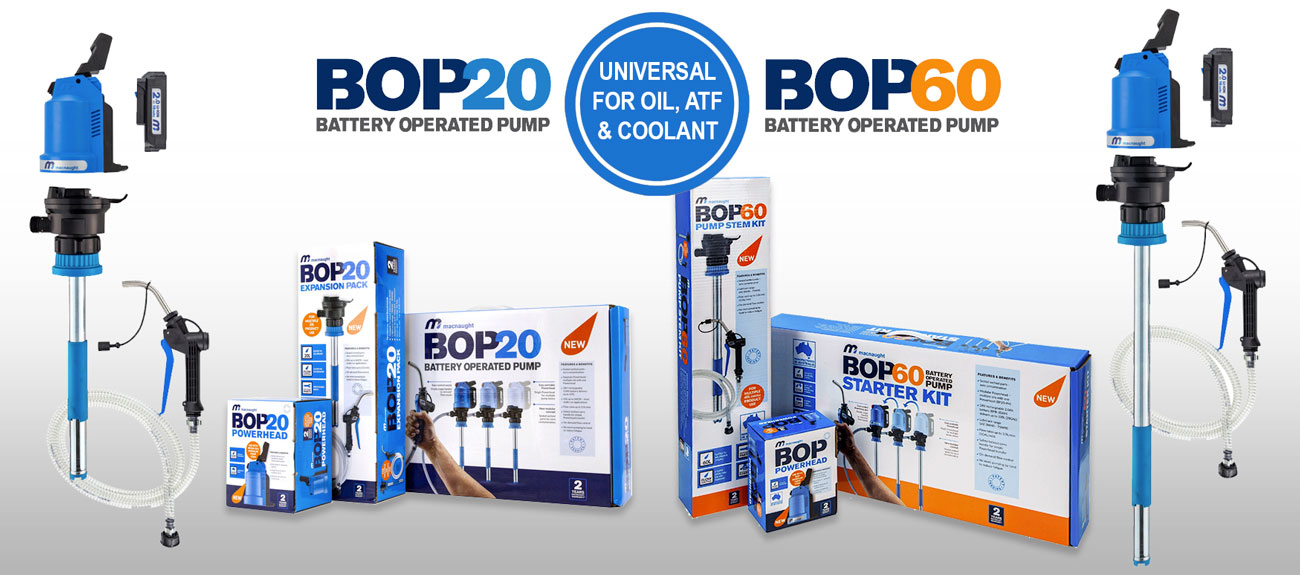

BOP Battery Operated Universal Pumps for Oil, DEF & ATF Transfer

Battery Operated Pumps are specifically designed to dispense fluids from transfer containers, 5 gallon buckets and 55 gallon drums.

BOP Battery Operated Universal Pumps Oil, DEF & ATF Transfer


Zero Contamination! One Powerhead powers multiple pumps.

Improve oil and automotive style fluid transfer efficiency with complete portability. Reduce spills, increase safety, eliminate hand pumps and stop manually pouring Oil, Coolant and ATF fluids into smaller containers. Recently tested and approved for OilSafe’s 10L and 5L transfer containers. Screw the stem kit directly into the Oil Container with Utility Lid – it’s a perfect fit! Also fits Trico 4 gallon and 3 gallon size units.

Battery Operated Pumps are designed to dispense all grades of oil up to 140W / ISO680 without cross contamination and delivers up to 40 Gallons on a typical full charge at 1.5 GPM.

Place the Stem Kit into any 5, 16 or 55 gallon container, attached and turn the Powerhead on, and engage the on-demand flow nozzle. Add a second Stem Kit to use with other fluids with out cross contamination. It’s that easy!



Battery Operated Pumps Features & Benefits

  • Sealed wetted parts – zero contamination
  • Separate Powerhead – multiple fluids with one Powerhead
  • 18v rechargeable 2.0Ah battery delivers up to 40 gallons
  • Flow rates up to 1.5+ GPM
  • Safety lockout carry handle for simple Powerhead transfer
  • On-demand flow control
  • No more pumping by hand eliminating fatigue

Technical Specifications

  • Compatible fluids – Oils up to SAE140 / ISO680, Coolant and ATF Fluids
  • Drum size – 5 gallon, 16 gallon, 55 gallon
  • Oil Container Size- 10L , 7L, 5L, 4 gal, 3 gal. Fits OilSafe, Des-Case & Trico Oil Jug Containers
  • Flow control – On demand
  • Delivery rate – Up to 1.5+ GPM @ 68F – cooler temps will reduce output
  • Priming – Self priming
  • Battery – 2.0Ah Li-Ion
  • Charger – 45 minutes

Industries and Applications:

  • Automotive, Truck & Bus
  • Marine
  • Mining
  • Heavy Equipment Maintenance
  • Aviation Plant Equipment
  • Farming Equipment
  • Crane Maintenance
  • Wind Farm Gear Box
  • Locomotive/Rail

Battery Operated Powerhead Kits

With One Portable Powerhead Which Powers Multiple Stems. Includes Everything Needed to Transfer up to 40 Gallons on a Full Charge (Oils up to 140W, Coolant & ATF Fluids).

Battery Operated Powerhead Kit for 5 Gallon PailsBattery Operated Powerhead Kit for 5 Gallon Pails
Part No# FHMBP20S-UNU
BOP20HV Powerhead Kit for 5 Gallon Pails. Includes Powerhead, Stem Kit, 5ft Hose with Nozzle, 18V Battery and Battery Charger. For use with Oil up to 140W, Coolant, and ATF Fluids.


Battery Operated Powerhead Kit for 16 & 55 Gallon DrumsBattery Operated Powerhead Kit for 16 & 55 Gallon Drums
Part No# FHMBP60S-UNU
BOP60HV Powerhead Kit for 16-55 Gallon Drums. Includes Powerhead, Stem Kit, 5ft Hose with Nozzle, 18V Battery and Battery Charger, and Stem Extender. For use with Oil up to 140W, Coolant, and ATF Fluids.


Battery Operated Stems

Typically Used with an Existing BOP Powerhead Kit for Differing Fluids.

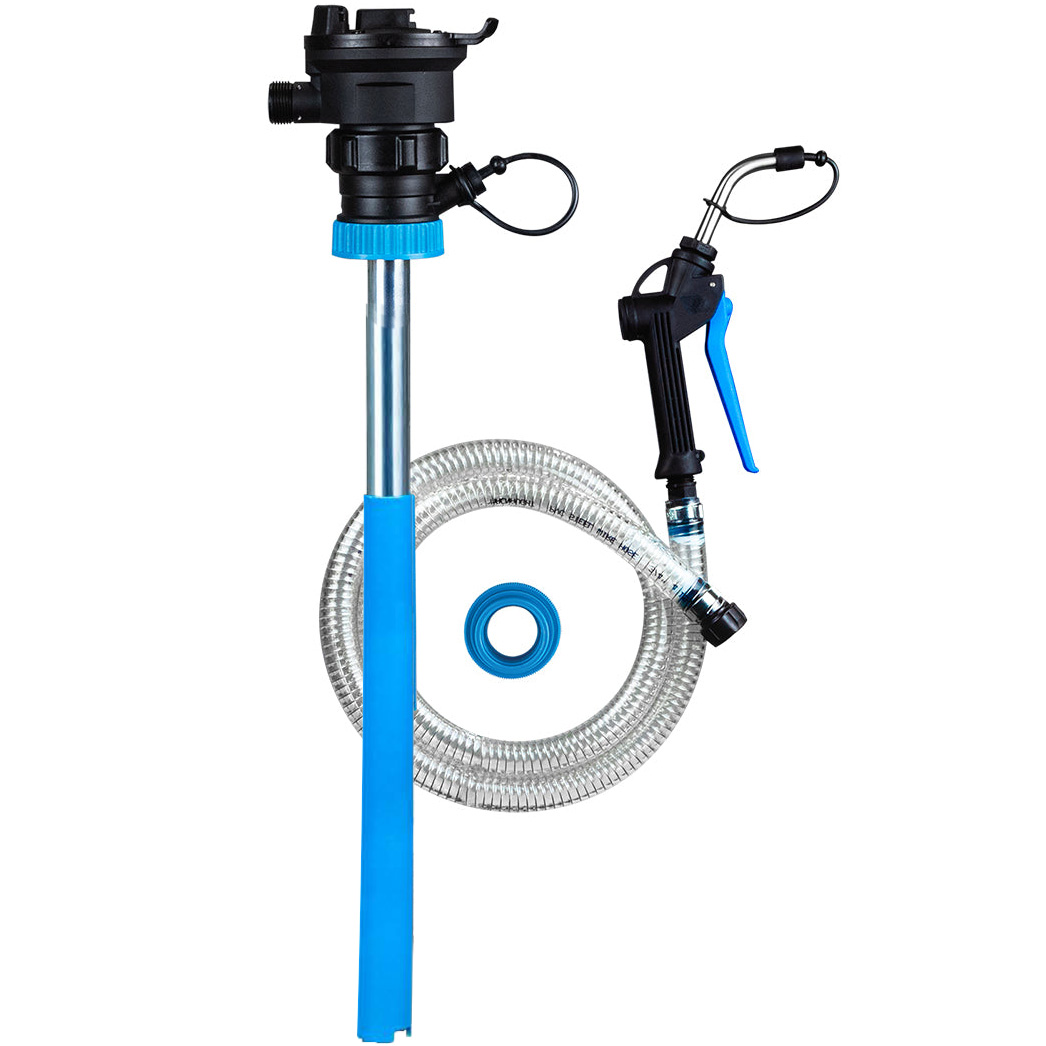

BOP Stem for Transfer Containers (Powerhead Not Included)BOP Stem for Transfer Containers (Powerhead Not Included)
Part No# FHMBP20X-UNA
BOP20HV Stem for 5 Gallon Pails. Includes Stem, 5ft Hose and Nozzle. For use with Oil up to 140W, Coolant, and ATF Fluids.


BOP Stem for Drums (Powerhead Not Included)BOP Stem for Drums (Powerhead Not Included)
Part No# FHMBP60X-UNA
BOP60HV Stem for 16-55 Gallon Drums. Includes Stem, 5ft Hose and Nozzle, and Stem Extender. For use with Oil up to 140W, Coolant, and ATF Fluids.


Battery Operated Pumps Accessories


Battery Operated Pump PowerheadBattery Operated Pump Powerhead
Part No# FHMBP20-PH
Use one Powerhead for multiple stems
Works with all Battery Operated Pumps
Locks on and off the Stem Kit quickly & easily
Generates up to 1.5+ GPM
Battery slides and locks into side mount

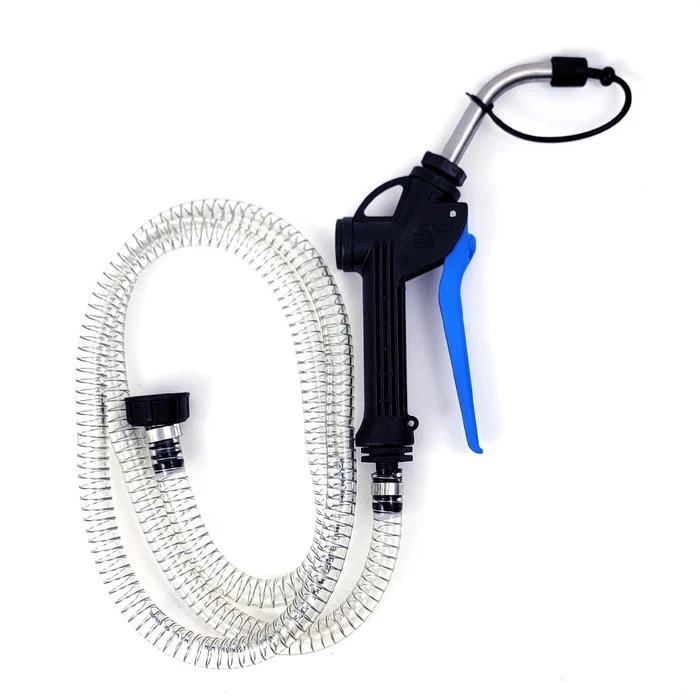

Nozzle with 10FT HoseNozzle with 10FT Hose
Part No# FHMBP-HV10FT
10ft of 3/4in Premium Clear PVC Spiral Wound Hose and On-Demand Nozzle.
Meter is not included in this option.
Use with 5 gallon Containers and 16/55 Gallon Drums


Inline Digital MeterInline Digital Meter
Part No# FHMIM012EB-01
Registers in Gallons, Quarts, and Liters
Works with 140W Oils, DEF, and Coolant
Flowrate: up to 2.7 GPM
Operating Temperature: -4 °F to +158 °F
Operating Pressure: 20psi (Max 60psi)
Connections: 1/2″ Inlet Connector Supplied, 1/2″ BSP (F) Outlet Connection


Spare 18V Rechargeable 2.0Ah BatterySpare 18V Rechargeable 2.0Ah Battery
Part No# FHMBPB-20AH
Works with all BOP Products
18V 2.0 AMP LI-ION Battery with smart technology
Delivers up to 40GAL per charge
18V Li-Ion Smart Technology Battery
Full Charge in 45 minutes


18V 2.0Ah Battery Charger18V 2.0Ah Battery Charger

Part No# FHMBP20-PH
Works with all BOP Products
Macnaught Class 2 Battery Charger – Model No: MBC-US. 100-120VAC 50-60Hz, 65W, 1.0A90VA
Use one Powerhead for multiple stems.
Generates up to 1.5+ GPM with HV BOP Stem
Battery slides and locks into side mount


Impeller and Seal KitseImpeller and Seal Kits
Impeller/Seal Kit Part No# FHMBP-1K
Includes Diaphragm and Plunger Replacement. Impeller and O-Ring Replacement
