FuelCube Diesel Fuel Tank with 12V Pump Kit, Fuel Gauge is a large, stationary steel fuel tank designed for onsite diesel fuel supply and fleet refueling. FuelCube tanks feature double walls, an integral, lockable equipment cabinet for security and 2-way forklift pockets for easy mobility when empty.
Specifications for FuelCube with Diesel Pump Packages
| Part No. | FuelCube Diesel Package | Dimensions | Weight |
|---|---|---|---|

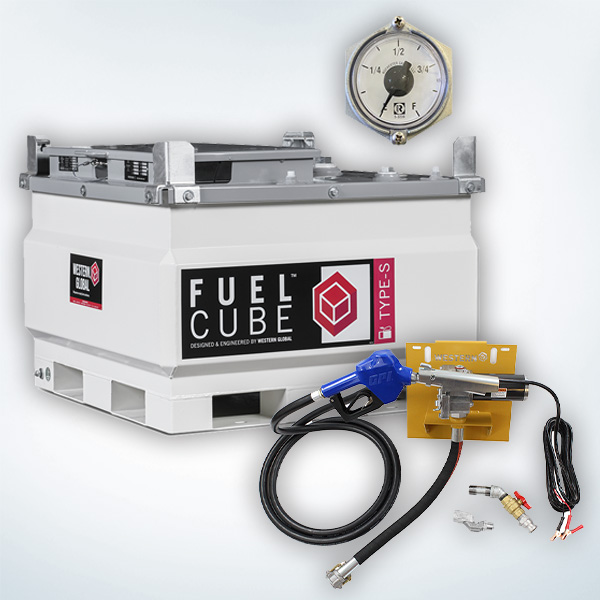

| DSLFCPWN011901215GPSNN | 119 Gallon FuelCube with Diesel Pump Package Includes FuelCube, 12V/15GPM Diesel Pump Kit and Fuel Level inside the Lockable Cabinet. | 46"W x 46"D x 32"H | 655 Lbs. |

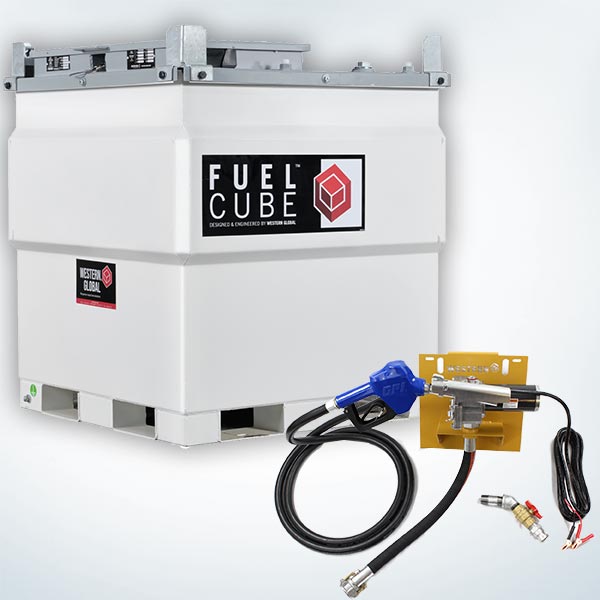

| DSLFCPWN025001215GPSNN | 243 Gallon FuelCube with Diesel Pump Package Includes FuelCube, 12V/15GPM Diesel Pump Kit and Fuel Level inside the Lockable Cabinet. | 45"W x 45"D x 51"H | 970 Lbs. |

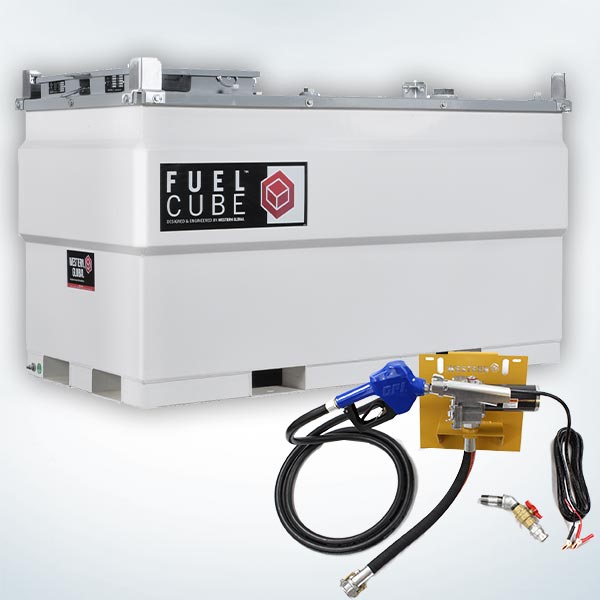

| DSLFCPWN050001215GPSNN | 528 Gallon FuelCube with Diesel Pump Package Includes FuelCube, 12V/15GPM Diesel Pump Kit and Fuel Level inside the Lockable Cabinet. | 86"W x 45"D x 51"H | 1,545 Lbs. |

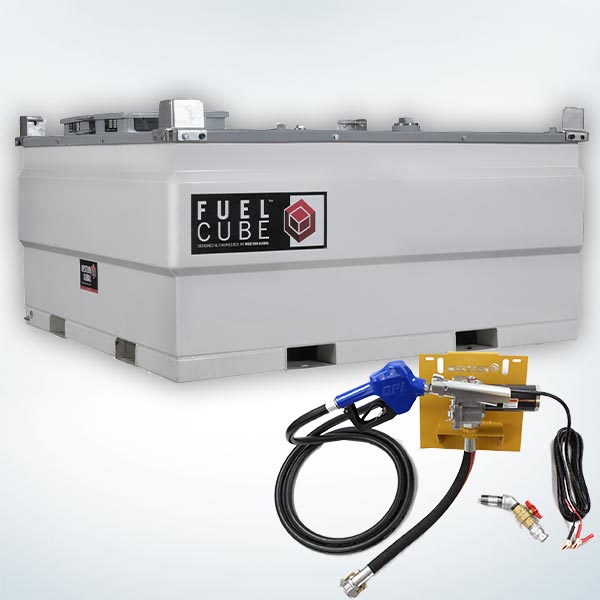

| DSLFCPWN100001215GPSNN | 1,016 Gallon FuelCube with Diesel Pump Package Includes FuelCube, 12V/15GPM Diesel Pump Kit and Fuel Level inside the Lockable Cabinet. | 90"W x 87"D x 46"H | 2,804 Lbs. |
Diesel Pump Kit

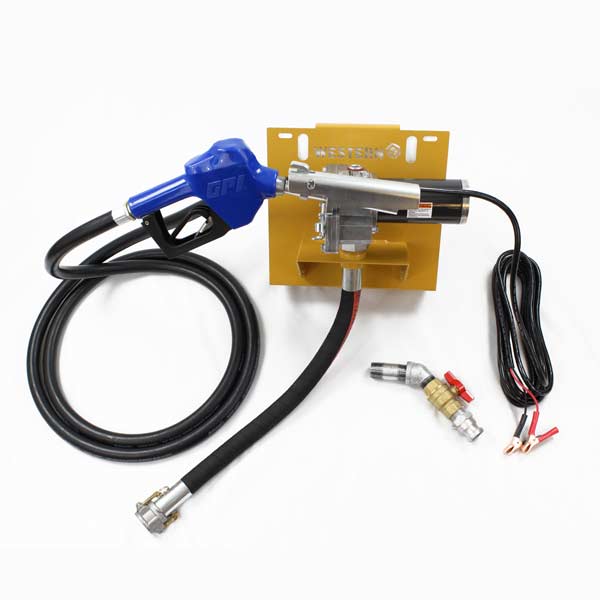

| Diesel Pump Kit | 12V / 15GPM | Part No. DSL150S | 12V / 15GPM 3/4″ Pump Kit Includes Mounting Kit, Inlet Fittings, 12′ Hose & Auto Nozzle. 18″W x 18″D x 12″H, 40 Lbs. |
|---|
FuelCube Standard Tank Fittings
- 1″ Pump Feed
- Vent & Fill Cap

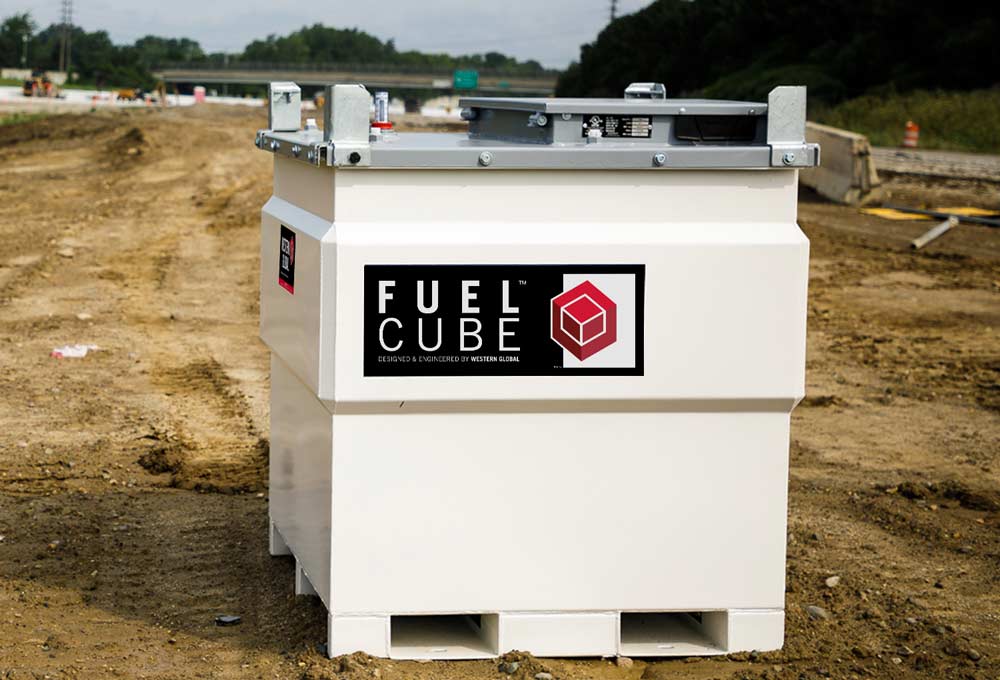

Keep fuel strategically located onsite to refuel construction machinery without having to wait for fuel deliveries with the FuelCube Diesel Storage Tank.
This compact and economic stationary double walled fuel tank is designed for onsite fuel supply and fleet refueling, and in construction and distribution. The FuelCube can connect to one diesel powered piece of equipment and dispense fuel by pump at the same time, so you can enjoy zero downtime and smoother operations. This diesel tank includes features such as an integral, lockable equipment cabinet for security and 4-way forklift pockets for easy mobility when empty. This diesel storage tank is ideal for both remote locations as well as for placement on your facility, the FuelCube can be fitted to refuel your fleet and reduce any unneeded downtime.
FuelCube Diesel Storage Tank Benefits
- Approvals: UL142, CAN/ULC-S601, NFPA
- Transportable: Two-way forklift pockets for mobility when empty, this sturdy tank allows you to take back control of your energy.
- Generators and Auxiliary Equipment: The FuelCube can connect to one diesel powered piece of equipment and dispense fuel by pump at the same time.
- Stackable Corner Brackets: Easily stack 2 empty tanks to reduce storage space.
- Lockable Equipment Cabinet: Equipment and ports are secure and spills are contained. Secure hose access enables fueling while cabinet is locked.
- Double Walled Tank: Built-in, weather proof containment eliminates the need for pans and basins.
- Removable Inner Tank: For routine cleaning, maintenance and inspection.
- Environmentally Safe: Double-walled, 110% containment
Applications for FuelCube with Diesel Pump Packages
- Onsite Fuel Supply
- Fleet Refuelling
- Generators and Auxiliary Equipment
