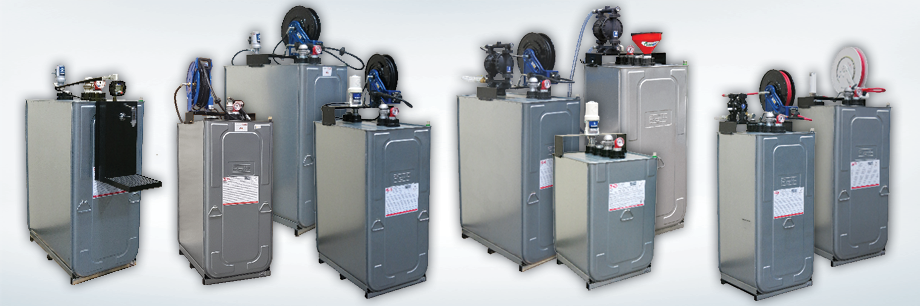

Store and Dispense Motor Oil, Gear Oil, Heating Oil, Hydraulic Fluid, ATF, Diesel Fuel and More with Ease in Our Double Wall Roth Tanks and Tank Packages
Roth Double Wall Tanks meet the UL SU2258 standards. The tanks are rust resistant inside and out and are designed to prevent spills, leaks and fires. Each Roth Tank undergoes thorough testing, including ultra-sound and pressure testing, to ensure optimal wall thickness.
Double Wall Roth Tank Benefits
- Store Class II and Class III fluids such as heating oil, motor and gear oil, hydraulic fluids, ATF, brake or power steering fluids, ethylene or propylene glycol based anti-freezes, diesel and bio fuels.
- The tanks are complaint with the EPA’s SPCC Regulations. The outer tank layer acts as secondary containment and it can hold 110% of the inner tank fluids for maximum protection.
- Designed to be compact and economical, Roth Tanks feature (4) 2"NPT Openings. (Only 8 sq. ft for the 275 gallon capacity tank.)
- Roth double walled Tanks are said to be up to 50% lighter than a 12-gauge steel tank, boasting a larger fluid and heating oil storage capacity.
- Double Wall Roth Tanks have Zero fittings below the fluid line!
- These leak-proof tanks will not corrode.
- Wide handles are positioned on the front of the tank to allow for easy handling and transport.
Double Wall Roth Tanks are known for their construction, ultimate safety and reliability. The outer Roth layer is constructed of leak-proof, weld-free galvanized steel and they are roll-seamed with an oil and fire-resistant seal. This outer steel tank layer can contain up to 110% of the capacity of the inner tank, offering maximum protection, and offering compliance with the EPA’s SPCC regulations. The inner Roth layer is made of blow-molded, high-density, seamless polyethylene that are leak proof and will not corrode. The double wall tanks are available in several different capacities, to provide you with flexibility for placement in any garage, service station or lube shop.
Roth Double Wall Tank Specifications
Roth Double Wall Tank Specifications
Roth Tank Capacities from 110 gallons to 400 gallons
Roth Tank Capacities from 400 liters to 1500 liters
Certified to UL SU2258
Double Wall Roth Tanks are compliant with NFPA 30 & 30A
Roth Double Wall Tank Packages
Fluidall offers packages, parts and accessories for double walled Roth Tanks, which are compatible with all of the tank sizes and capacities. Our oil dispense packages, waste oil equipment and oil tap packages all feature heavy-duty equipment, including hose reels and pump packages. This equipment is supported by our steel mounting brackets, constructed exclusively for Roth.
Roth Oil Tank with Graco Dispense Packages
Preset and Non-Preset Roth Packages
Fire-Ball Pump Roth Packages
Double Wall Double Diaphragm Pump and Roth Tank Packages
Roth Tank Anti-Freeze Packages
Roth Tank Plus Package
Roth Tank Manifold Kits

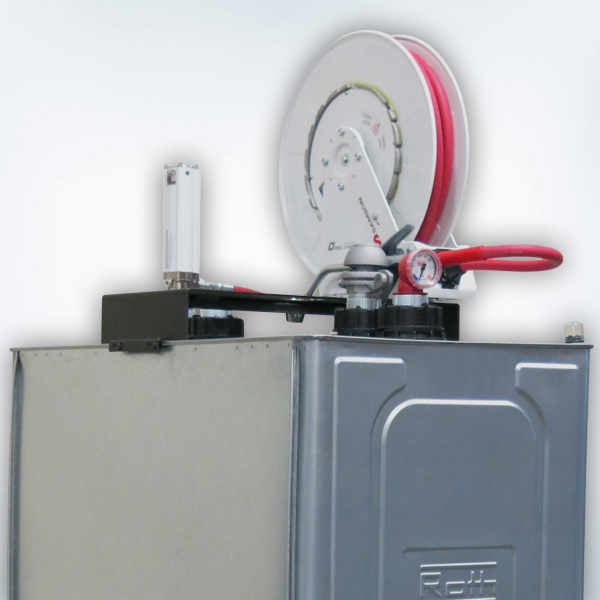

Roth Oil Tank with Samson Oil Pump and Preset/Non-Preset Packages
Packages include Roth Double Wall Tank, Optical Leak Alarm, Level Gauge, Lockable Fill Cap with Vent, Pump/Reel Bracket, and Samson Pump Package (Samson Oil Pump, 50′ Hose Reel, Preset or Non-Preset Meter, Air Pressure Regulator, and Down Tube).
Roth Tank with Samson Anti-Freeze Packages
Packages include Roth Double Wall Tank, Samson Dispense Package (1:1 Samson Pump, 50′ Hose Reel, Non-Metered Control Handle, Air Pressure Regulator) Down Tube, Fluid Level Gauge, Lockable Fill Cap with Vent, Pump/Reel Bracket.

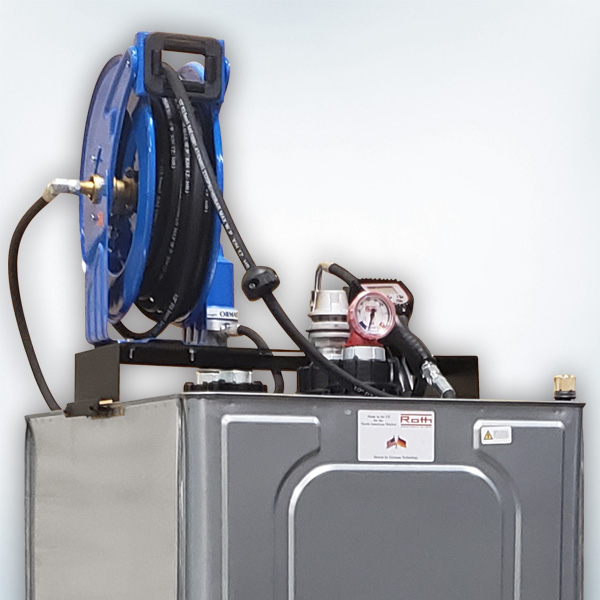

Roth Oil Tank with Fluidall Exclusive Pump and Preset/Non-Preset Packages
Packages include Roth Double Wall Tank, Optical Leak Alarm, Level Gauge, Lockable Fill Cap with Vent, Pump/Reel Bracket, and Fluidall Exclusive Pump Package (Fluidall Exclusive 3:1 T312 Oil Pump, 50′ Industrial Grade Hose Reel, Preset or Non-Preset Meter, Air Pressure Regulator, and Down Tube).
Oil Tap Package for Roth Double Wall Oil Tanks
Our Oil Tap Bars Kits are compatible with all Roth Double Wall Storage Tanks
Available with a 3:1 Pump Kit or as a Tank with Oil Tap Package preassembled. Metered and non-metered packages are available.
Roth Waste Oil Tank Equipment
Available as Preassembled Waste Oil Double Wall Roth Tank Packages
4 Quart Oil Drain Funnel with Lockable Lid and Removable Filter Screen
Hose Kit
Graco 1050 Husky Double Diaphragm Pump, up to 50gpm
Roth Double Wall Tank Manifold Kits
Eliminates the need for dual pumps on a dual Roth Tank set-up
Securely join up to 2 Roth Tanks of the same height
All tanks must be the same height, level and plumb
Roth Double Wall Tank Accessories
Roth Heating Oil Tanks, unlike traditional steel oil tanks, are rust free inside and out. The polymer shell is strong and durable, and it won’t break down or contaminate your heating oil. The outer shell is constructed of leak-proof and corrosion-resistant galvanized steel. Fluidall provides additional Roth Tank parts and accessories you’ll need to operate your heating oil tanks to their full potential.
Pump Mount Brackets
Manufactured to mount pneumatic oil pumps, Fire-Ball pumps, universal electric pump, double diaphragm pump (DDP) as well as complete pump and reel packages directly on the top of Roth Double Walled Tanks.
Mobile Tank Cages
The Castered Cage is Designed for 110 Gallon and 275 Low Profile Roth Double Wall Tanks
The Forklift Ready Portable Cage is Designed for 165, 275 and 400 Gallon Roth Double Wall Tanks
High Level Tank Alarm
Continuous monitoring
Built for tough industrial environments
Adjustable depth
Battery Powered – uninterruptible battery power lasts for years
Loud Alarm Tone
Lockable Fill Cap with Vent
Designed for Roth Tank fill applications when atmospheric venting needs to take place through the same opening
Provides direct filling access point when the hinged fill cap is in the open position
When closed, the screened opening protects the tank from debris and insects
Lockable with a padlock
Oil Drain Funnel
10in Top Opening
8 1/2″H
4 Qt. Capacity
Polypropylene Construction
1 1/2″L Spout
Roth Heating Oil Tank Gauge
Check & monitor operating fluid levels inside a Roth Tank
Manufactured exclusively for all Roth Tank capacities
Easily hand tightens into one of the tank’s top openings
Tie-Down Kit
Secure and tighten Roth Tanks
Use in areas with a threat of flooding, high winds exists, and earthquakes
Clip over top rim of tank
Base bolts to floor/concrete
Roth Tank Cover
Protect the top of the Roth tank from weather elements
Knock-outs are located on the ends/back of the cover for fuel oil supply lines
The cover is required for outdoor tank installations
Roth Heating Oil Tank Vent Alarm
Every Roth home fuel oil tank must be vented
Duplex Bushing
Converts a single tank opening into two smaller threaded openings
Has two slip-through compression fittings for either 3/8in or 1/2in copper tubing for fuel supply & return lines
