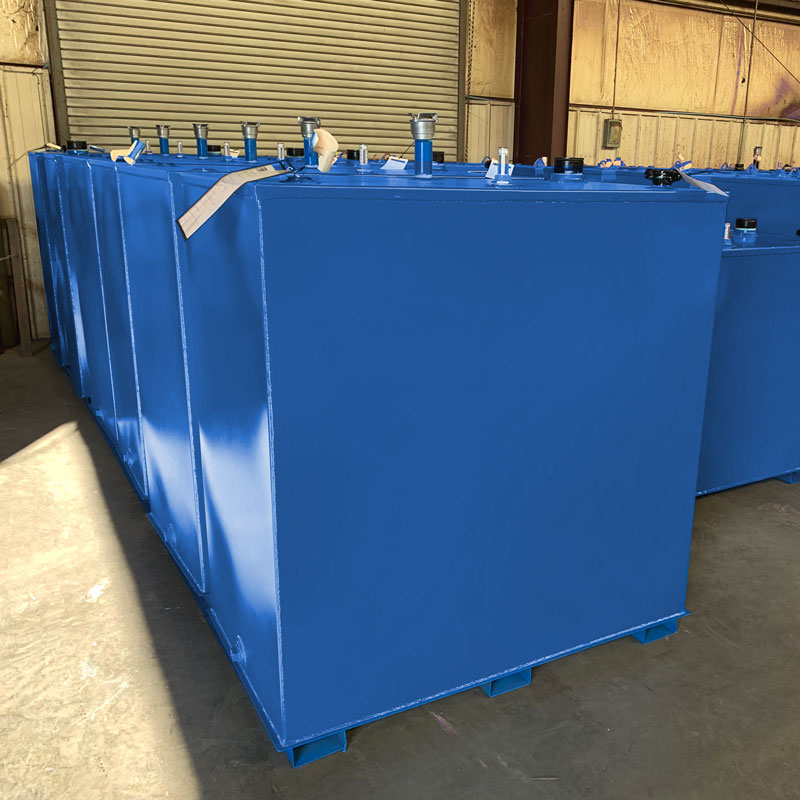

Available in either Double and Single Walled Construction; Slim Steel Tanks Can Fit Through Doorways, into Pits & Bays and Along Aisle Ways. Slim Tanks are Built, Tested, and Labeled per UL-142.
The slim rectangular lube tank design really saves space. Slim steel tanks come standard with one coat of gray primer. All singled walled and double walled Slim Steel Tanks can also be painted with acrylic enamel paint in an array of colors including Black, White, Battleship Gray, Aluminum, Biloxi Tan, Blue, International Red, Orange, Yellow and JD Green.
In addition, Fluidall offers a Universal Reel Bracket for these Tanks. Please inquire.
UL-142 Listed Slim Single Walled Steel Tank Specifications
The Single Wall Slim Steel Tanks include: MNPT Emergency Vent, 2"MNPT Fill Cap, 2" Updraft Vent, 2" x 6" Nipple TBE, and At-A-Glance Gauge.
| Slim Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| SSWSST120 | 120 Gallons | 30" x 29" x 33" | (6) 2" Top NPT, (2) 3" Top Ports |
| SSWSST180 | 180 Gallons | 60" x 29" x 25" | (6) 2" Top NPT, (2) 3" Top Ports |
| SSWSST200 | 200 Gallons | 60" x 29" x 28" | (6) 2" Top NPT, (2) 3" Top Ports |
| SSWSST280 | 280 Gallons | 60" x 27" x 43" | (6) 2" Top NPT, (2) 4" Top Ports |
| SSWSST350 | 350 Gallons | 60" x 29" x 48" | (6) 2" Top NPT, (2) 4" Top Ports |
| SSWSST500 | 500 Gallons | 60" x 33" x 60" | (6) 2" Top NPT, (2) 4" Top Ports |
| SSWSST750 | 750 Gallons | 90" x 41" x 60" | (6) 2" Top NPT, (2) 6" Top Ports |
| SSWSST1000 | 1,000 Gallons | 96" x 41" x 60" | (6) 2" Top NPT, (2) 6" Top Ports |
UL-142 Listed Slim Double Walled Steel Tank Specifications
The Double Walled Slim Steel Tanks include: (2) MNPT Emergency Vents, 2"MNPT Fill Cap, 2" Updraft Vent, 2" x 6" Nipple TBE, Leak Gauge, and At-A-Glance Gauge.
| Slim Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| SDWSST120 | 120 Gallons | 36" x 29" x 33" | (6) 2" Top NPT, (2) 3" Top Ports |
| SDWSST180 | 180 Gallons | 66" x 29" x 25" | (6) 2" Top NPT, (2) 3" Top Ports |
| SDWSST200 | 200 Gallons | 66" x 29" x 28" | (6) 2" Top NPT, (2) 3" Top Ports |
| SDWSST280 | 280 Gallons | 67" x 27" x 43" | (6) 2" Top NPT, (2) 4" Top Ports |
| SDWSST350 | 350 Gallons | 67" x 29" x 48" | (6) 2" Top NPT, (2) 4" Top Ports |
| SDWSST500 | 500 Gallons | 67" x 33" x 60" | (6) 2" Top NPT, (2) 4" Top Ports |
| SDWSST750 | 750 Gallons | 99" x 41" x 60" | (6) 2" Top NPT, (2) 6" Top Ports |
| SDWSST1000 | 1,000 Gallons | 105" x 41" x 60" | (6) 2" Top NPT, (2) 6" Top Ports |
