Steel Tanks Provide Storage for Bulk Automotive Style Fluids and Motor Oils at Repair Garages, Fleet Operations, and at Farms or Other Agricultural Sites
The Tanks Below are Shown with Optional Dispense Equipment
Fluidall Single Wall Steel Tanks are an ideal and inexpensive solution for the storage of new and used automotive style fluids and motor oils. These steel tanks provide lower installed costs than underground tanks, will maximize floor space better than cylindrical aboveground tanks, and offer lower operating costs than 55-gallon oil drums. Steel Tanks are designed for easy and convenient installation either indoors, in auto shops or service garages, or on the farm or another agricultural site. Our Single Wall Steel Tanks are manufactured from carbon steel and then powder coated to prevent chips and corrosion to provide a long service life.
Our steel tanks come with (4) 2in Top NPT Openings, (1) 4in Top NPT Opening, & (1) 1in Bottom Steel Bulkhead for Gravity Feed Dispense.
Each tank features a built-in bracket for mounting a pump and reel, located on the top of the steel tank. The front of each tank features a steel bracket to support a dispense meter (with a dispense gun holder PN# FHDKDGH) or as a built-in placard insert. Steel Tanks can also be configured with many optional individual fluid handling accessories.
Steel Tank Features:
- 4 Capacities (280-, 200-, 315-, and 400-Gallon Tanks) Offered to Meet Site Specifications
- Carbon Steel Construction
- Powder Coated to Prevent Chips and Corrosion
- Built-In Mounting Bracket for Pump/Reel Equipment
- Built-In Bracket to Support a Dispense Gun Holder PN# FHDKDGH, or to Mount a Placard
Optional Accessories:
- Steel Stand
- Drip Tray Assembly
- Gun Holder
- Fluid Level Gauge
- Lockable Fill Cap for Security
- Gravity Feed Spring Release Valve
- Top Mounted Pump Package (Package Descriptions Listed Below)
Single Wall Steel Tank Specifications
| Steel Tank | Capacity (Gallons) | Tank Dimensions | Tank Height |
| SSW200 | 200 Gallons | 32"W x 32"D | 46"H |
| SSW315 | 315 Gallons | 40"W x 40"D | 46"H |
| SSW400 | 400 Gallons | 40"W x 40"D | 64"H |
| SSW280 | 280 Gallons | 60"W x 24"D | 45"H |
Steel Tank Plus Package Specifications

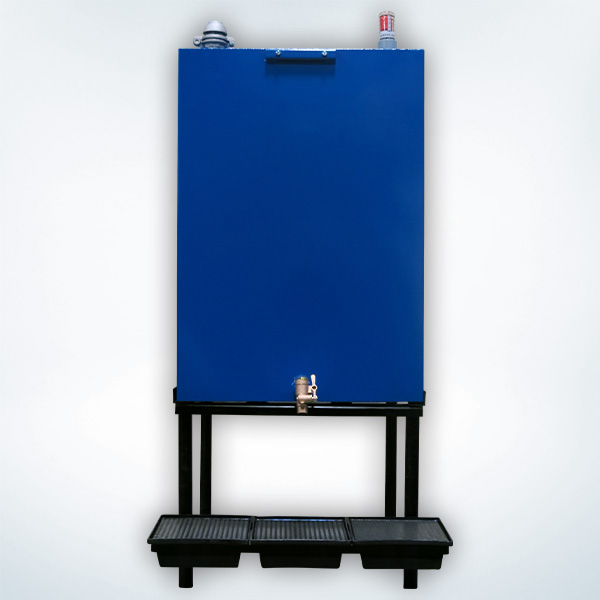

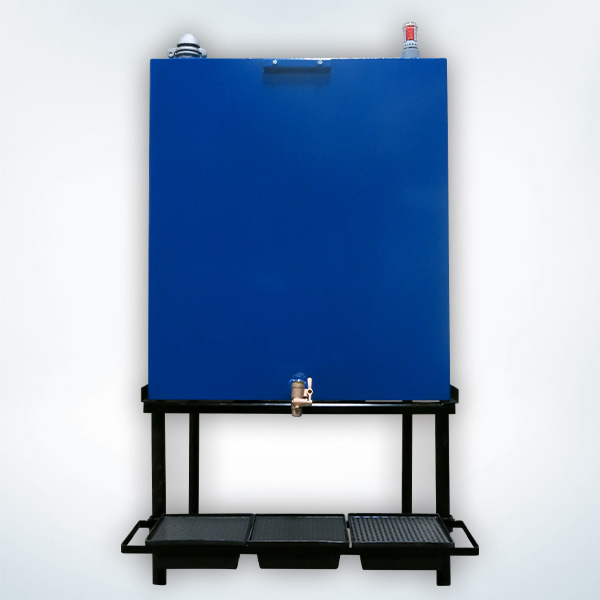

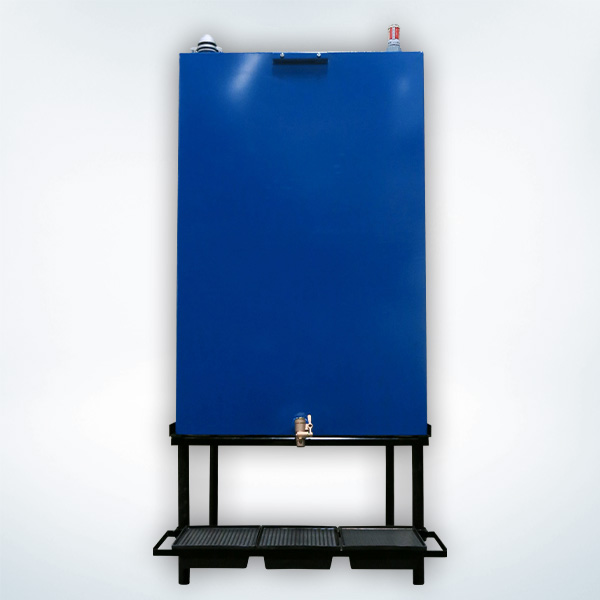

As an economical set up, a Steel Tank Plus Package is offered in the 200-, 315-, and 400-gallon tank capacities. These packages include the Steel Tank, 24inH Stand, Drip Tray Assembly, Fluid Level Gauge, Lockable Fill Cap with Vent and Gravity Feed Valve. An optional dispense pump could be secured into the 2in threaded fitting in the top.
| Steel Tank Plus Package Part No. | Capacity (Gallons) | Steel Tank Plus Package Components | Tank Plus Package Dimensions |
| SSW200A | 200 Gallons | Includes 200 Gallon Steel Tank, 24″H Stand, Drip Tray Assembly, Fluid Level Gauge, Lockable Fill Cap with Vent and Gravity Feed Valve. | 36″W x 44″D x 70″H |
|---|---|---|---|
| SSW315A | 315 Gallons | Includes 315 Gallon Steel Tank, 24″H Stand, Drip Tray Assembly, Fluid Level Gauge, Lockable Fill Cap with Vent and Gravity Feed Valve. | 44″W x 54″D x 70″H |
| SSW400A | 400 Gallons | Includes 400 Gallon Steel Tank, 24″H Stand, Drip Tray Assembly, Fluid Level Gauge, Lockable Fill Cap with Vent and Gravity Feed Valve. | 44″W x 54″D x 88″H |

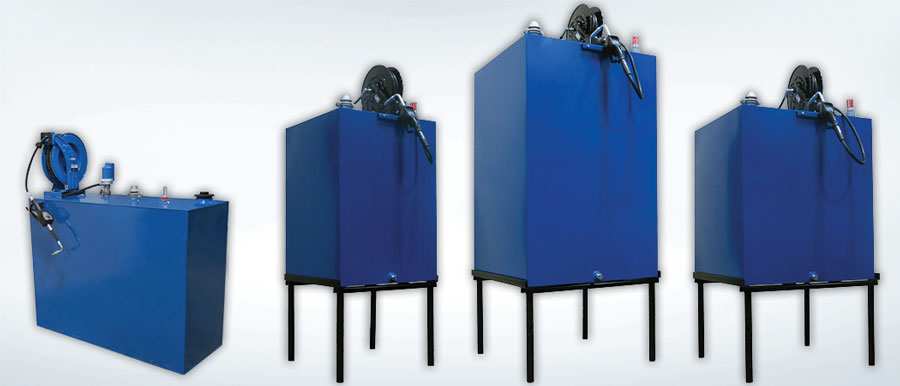

Single Wall Steel Tank and Pump Packages
Each 200, 315 and 400 Gallon (Excluding the 280 Gallon) Steel Tank and Pump Package also includes 24″H Stand, Fluid Level Gauge, and Lockable Fill Cap with Vent. They are shown here with Optional Brass Dispense Valves.
Pump Package Features
Graco Preset Pump Package
3:1 LD Pump, 50′ SD Reel, LDP5 Preset Meter, Air Pressure Regulator
Graco Non-Preset Pump Package
3:1 LD Pump, 50′ SD Reel, EM Manual Meter, Air Pressure Regulator
Samson Preset PumpMaster Package
3:1 PumpMaster Oil Pump with 50′ Reel, Preset Meter, Air Pressure Regulator
Samson Non-Preset PumpMaster Package
3:1 PumpMaster Oil Pump with 50′ Reel, Non-Preset Meter, Air Pressure Regulator
Fluidall Exclusive Preset Pump Package
3:1 Preset Pump Package Includes 3:1 Pump, Hose Reel 1/2″ x 50ft, M3 Preset Dispense Gun, M3 Air Pressure Regulator, Oil Lead Hose 5ft 1/2″ FS x M, and Bushing 3/4″ x 1/2″.
Fluidall Exclusive Non-Preset Pump Package
3:1 Non-Preset Pump Package Includes 3:1 T312 Pump, Hose Reel 1/2″ x 50ft, M3 Non-Preset Dispense Gun, M3 Air Pressure Regulator, Oil Lead Hose 5ft 1/2″ FS x M, and Bushing 3/4″ x 1/2″.
200 Gallon Single Wall Steel Tank and Pump Specifications
| Part No. | 200 Gallon Steel Tank Package Description | Tank Dimensions |
| SSW200GP | 200 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Preset Meter | 32"W x 32"D x 46"H |
| SSW200GM | 200 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Manual (Non-Preset) Meter | 32"W x 32"D x 46"H |
| SSW200SP | 200 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Preset Meter | 32"W x 32"D x 46"H |
| SSW200SM | 200 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Manual (Non-Preset) Meter | 32"W x 32"D x 46"H |
| SSW200FP | 200 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Preset Meter | 32"W x 32"D x 46"H |
| SSW200FM | 200 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Manual (Non-Preset) Meter | 32"W x 32"D x 46"H |
315 Gallon Single Wall Steel Tank and Pump Specifications
| Part No. | 315 Gallon Steel Tank Package Description | Tank Dimensions |
| SSW315GP | 315 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Preset Meter | 40"W x 40"D x 46"H |
| SSW315GM | 315 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 46"H |
| SSW315SP | 315 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Preset Meter | 40"W x 40"D x 46"H |
| SSW315SM | 315 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 46"H |
| SSW315FP | 315 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Preset Meter | 40"W x 40"D x 46"H |
| SSW315FM | 315 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 46"H |
400 Gallon Single Wall Steel Tank and Pump Specifications
| Part No. | 400 Gallon Steel Tank Package Description | Tank Dimensions |
| SSW400GP | 400 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Preset Meter | 40"W x 40"D x 64"H |
| SSW400GM | 400 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 64"H |
| SSW400SP | 400 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Preset Meter | 40"W x 40"D x 64"H |
| SSW400SM | 400 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 64"H |
| SSW400FP | 400 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Preset Meter | 40"W x 40"D x 64"H |
| SSW400FM | 400 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Manual (Non-Preset) Meter | 40"W x 40"D x 64"H |
280 Gallon Single Wall Steel Tank and Pump Packages
Fluidall has packaged the 280 gallon Steel Tank with Optional Graco, Samson & Fluidall Exclusive Dispense Equipment Packages. Each package consists of a Single Wall Steel Tank, Level Gauge, Lockable Fill Cap with Vent, Tank Mount Gun Holder, 3:1 Oil Pump, 50′ Hose Reel, Preset or Non-Preset Meter, Air Pressure Regulator, and Down Tube.
280 gallon Steel Tank with Fluidall Exclusive Dispense Package, Preset Meter Shown, Part No. SSW280FP
| Part No. | 280 Gallon Steel Tank Package Description | Tank Dimensions |
| SSW280GP | 280 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Preset Meter | 60"W x 24"D x 45"H |
| SSW280GM | 280 Gallon Single Wall Steel Tank with Graco Dispense Package, Premium Manual (Non-Preset) Meter | 60"W x 24"D x 45"H |
| SSW280SP | 280 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Preset Meter | 60"W x 24"D x 45"H |
| SSW280SM | 280 Gallon Single Wall Steel Tank with Samson Dispense Package, Premium Manual (Non-Preset) Meter | 60"W x 24"D x 45"H |
| SSW280FP | 280 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Preset Meter | 60"W x 24"D x 45"H |
| SSW280FM | 280 Gallon Single Wall Steel Tank with Fluidall Exclusive Dispense Package, Premium Manual (Non-Preset) Meter | 60"W x 24"D x 45"H |
