Ultra-Spill Pallet Plus is a High-Strength, Low-Profile Spill Containment Solution
The Ultra-Spill Pallet Plus is a precision-engineered solution for industrial spill containment. Combining structural integrity with a low-profile design, these pallets provide practical, compliant, and safe handling of 55 gallon drums and other containers. Designed for operational efficiency, the pallets meets EPA and SPCC container storage requirements while facilitating safer oil drum loading, pouring, and handling.
Optimized for Safety and Ergonomics

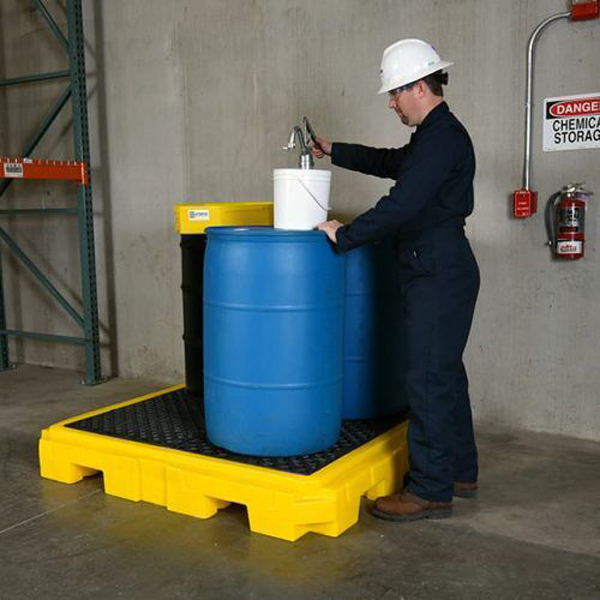

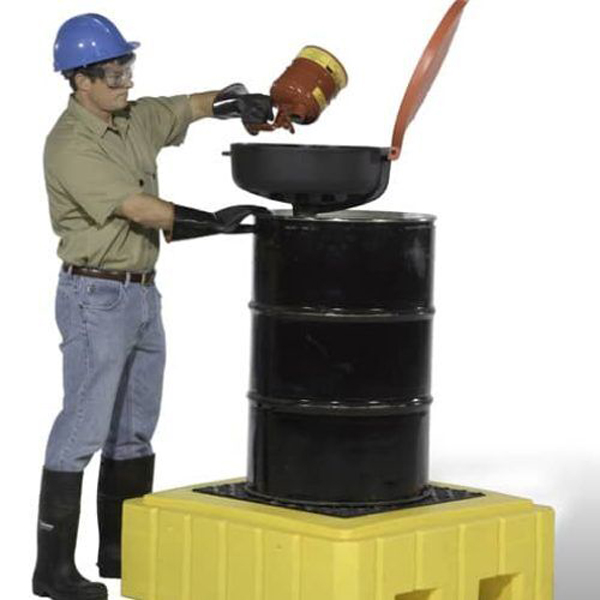

Standard spill pallets frequently achieve regulatory containment but can create handling hazards due to their height. Loading or pouring from full 55 gallon drums at eye level increases the risk of spills and operator exposure to hazardous fluids. The Ultra-Spill Pallet Plus addresses this with a reduced height of 8 3/4″ (except P1), positioning drum funnels below eye level. This design minimizes splash risk and enhances ergonomics, allowing operators to manage drums safely and efficiently.
High-Capacity Load Support
Despite its low profile, the Ultra-Spill Pallet Plus is engineered for heavy-duty applications. The line supports full 55 gallon drums, with weight capacities exceeding standard spill pallets. Models are available for 1-, 2-, 3-, and 4-drum configurations, all engineered to contain drips, leaks, and spills in accordance with EPA and SPCC regulations.
Ultra-Spill Pallet Plus Highlights
- Low 8.75″ profile reduces eye-level spill hazards and improves handling ergonomics.
- Approximately 50% lower than standard spill pallets, minimizing operator strain and optimizing workspace.
- Removable grates with non-slip surfaces for secure drum placement and streamlined maintenance.
- High load capacity accommodates oil drums, providing versatile containment options.
Operational Benefits
The Ultra-Spill Pallet Plus enables safer, more efficient containment workflows while maintaining compliance with federal storage regulations. Its combination of structural strength, low profile, and adaptable design supports a wide range of industrial applications, from chemical storage to manufacturing processes.
Ultra-Spill Pallet Plus Specifications
| Part No. | Description | Dimensions (Inches) | Load Capacity (UDL) | Containment Capacity (Gallons) | Weight (Lbs.) |
|---|---|---|---|---|---|

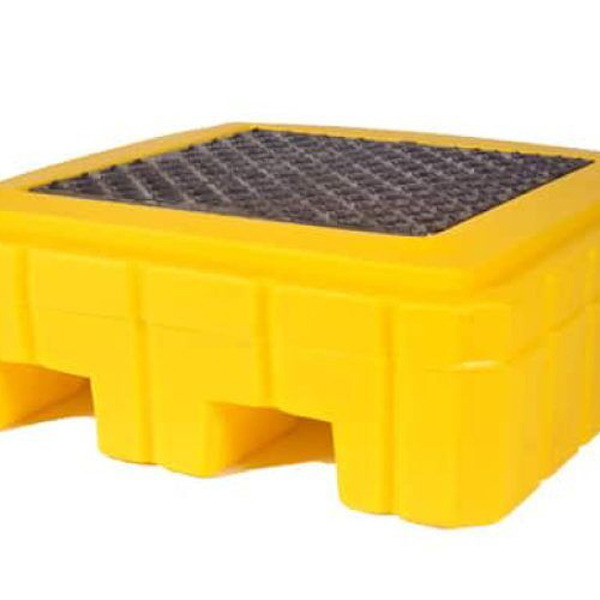

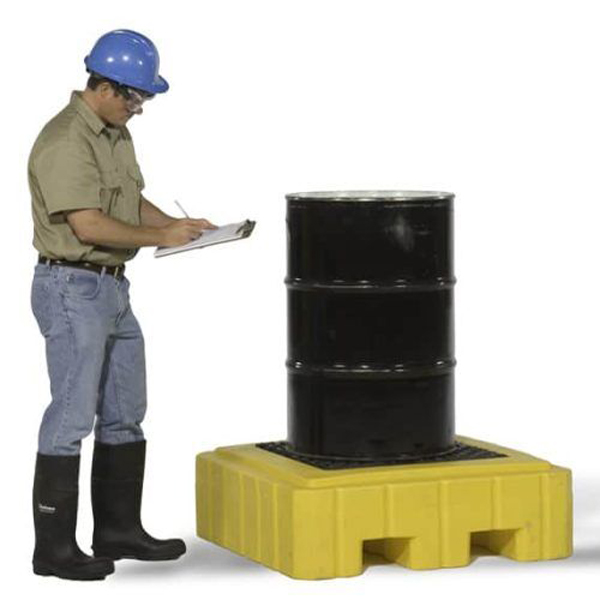

| CV9606 | P1 Plus – 1-Drum, No Drain | 40 × 40 × 12 | 800 | 62 | 51 |
| CV9607 | P1 Plus – 1-Drum, With Drain | 40 × 40 × 12 | 800 | 62 | 51 |

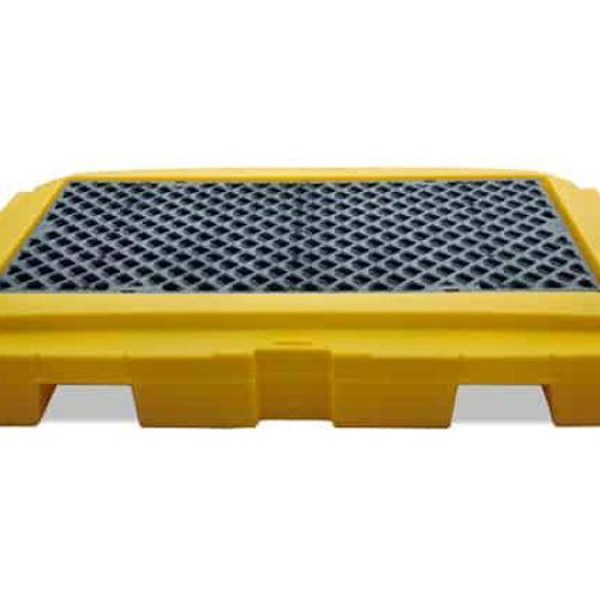

| CV9610 | P2 Plus – 2-Drum, No Drain | 65.5 × 40 × 8.75 | 4,500 | 66 | 88 |
| CV9611 | P2 Plus – 2-Drum, With Drain | 65.5 × 40 × 8.75 | 4,500 | 66 | 88 |

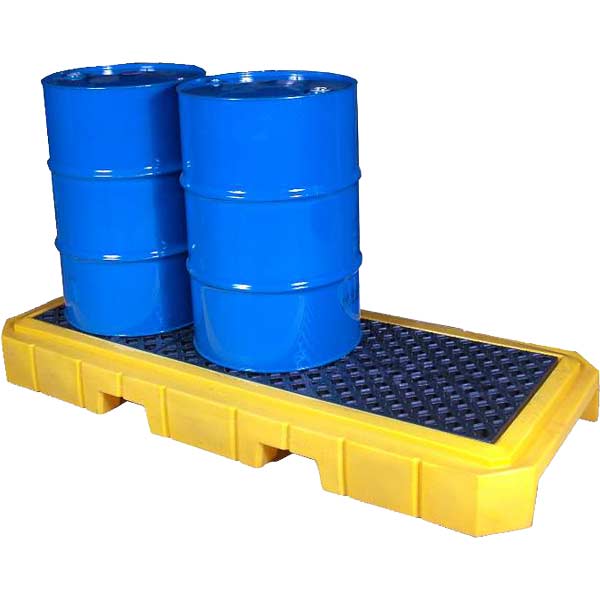

| CV9626 | P3 Plus – 3-Drum, No Drain | 83 × 34.5 × 8.75 | 4,500 | 66 | 90 |
| CV9627 | P3 Plus – 3-Drum, With Drain | 83 × 34.5 × 8.75 | 4,500 | 66 | 90 |

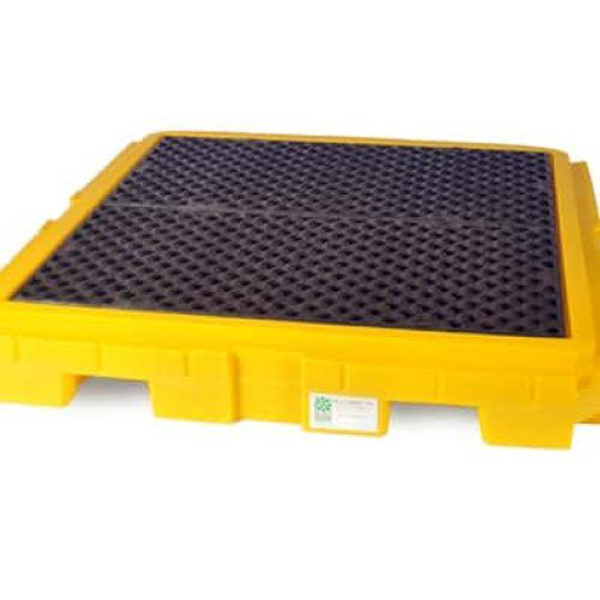

| CV9630 | P4 Plus – 4-Drum, No Drain | 62 × 62 × 8.75 | 9,000 | 75 | 140 |
| CV9631 | P4 Plus – 4-Drum, With Drain | 62 × 62 × 8.75 | 9,000 | 75 | 140 |
Ultra-Spill Pallet Plus Accessories
These accessories complement the Ultra-Spill Pallet Plus line, providing safer handling, easier access, and added protection for oil drums.
| Part No. | Description | Dimensions (Inches) | Load Capacity (UDL) | Containment Capacity (Gallons) | Weight (Lbs.) |
|---|---|---|---|---|---|

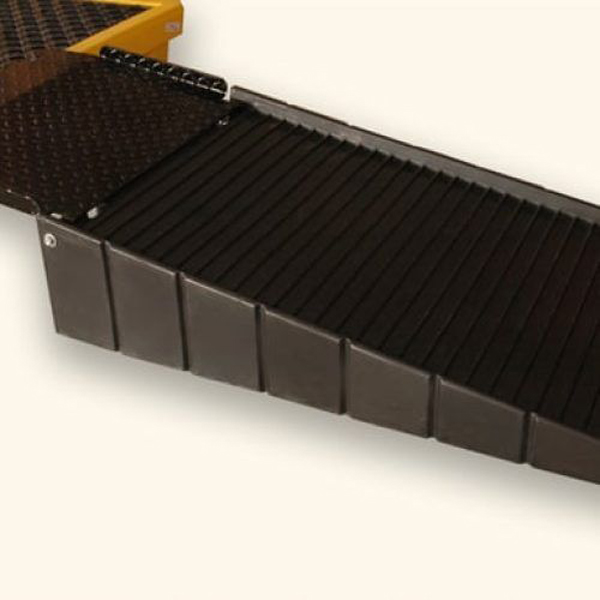

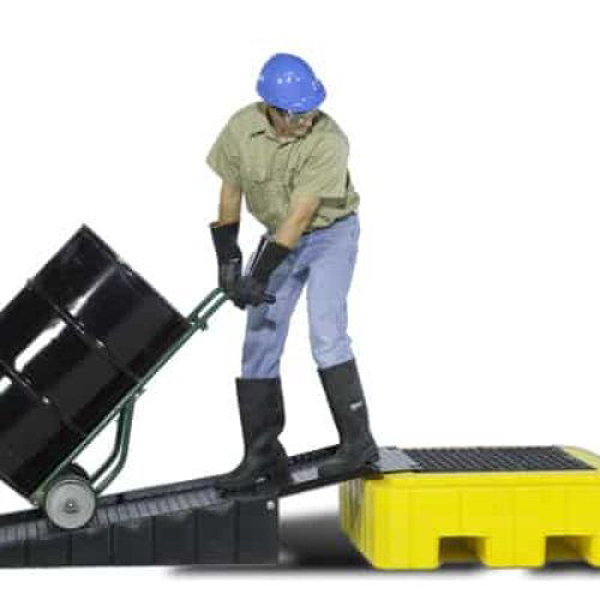

| CV0678 | Ramp for P1 Plus and P4 (excluding P4 Plus) | 68.5 × 28.5 × 12 | 700 | — | 73 |

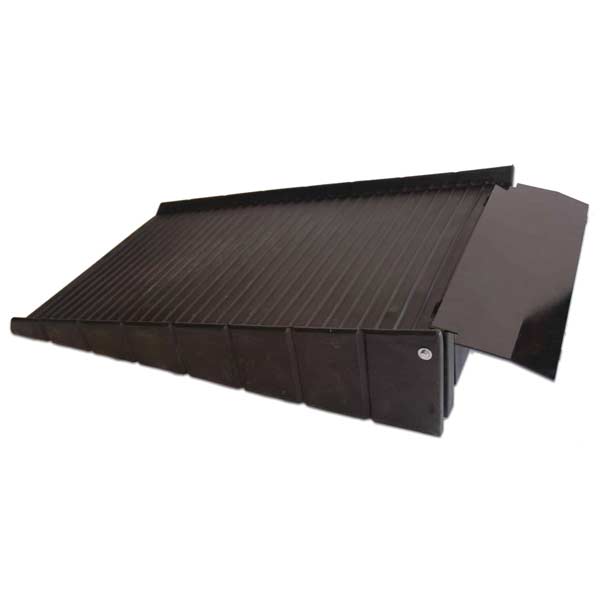

| CV0676 | Ramp for P2, P3 & P4 Plus | 55.5 × 28.5 × 8.75 | 700 | — | 43 |

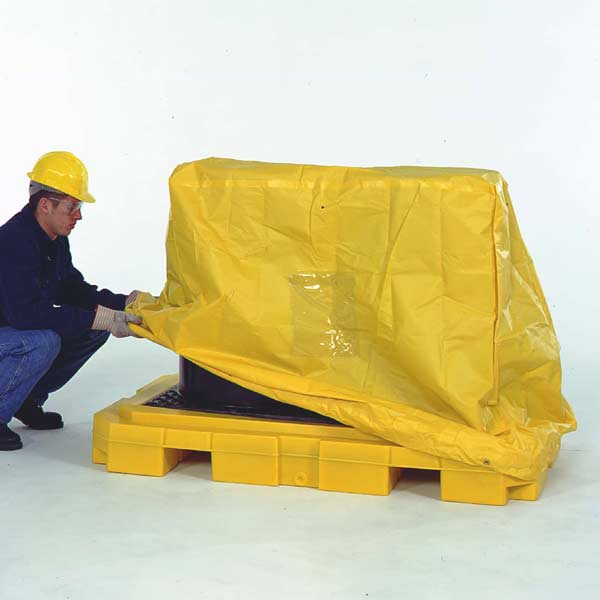

| CV9614 | Pullover Cover for P2 Plus | 13 × 12 × 3 | — | — | 7 |

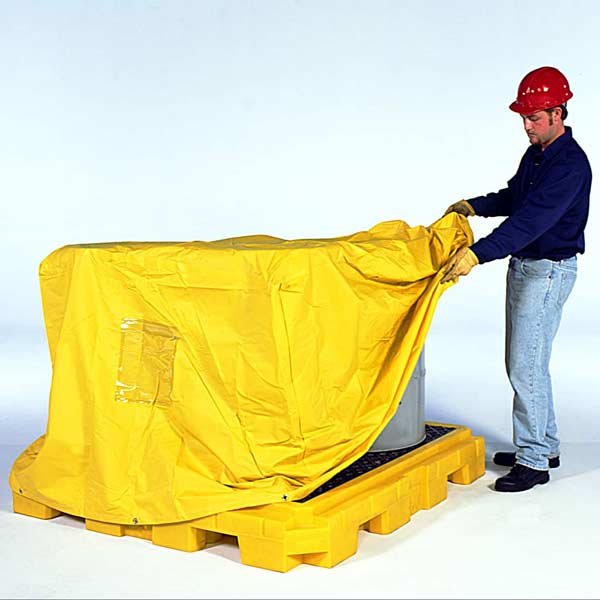

| CV9634 | Pullover Cover for P4 Plus | 13 × 12 × 4 | — | — | 7 |
