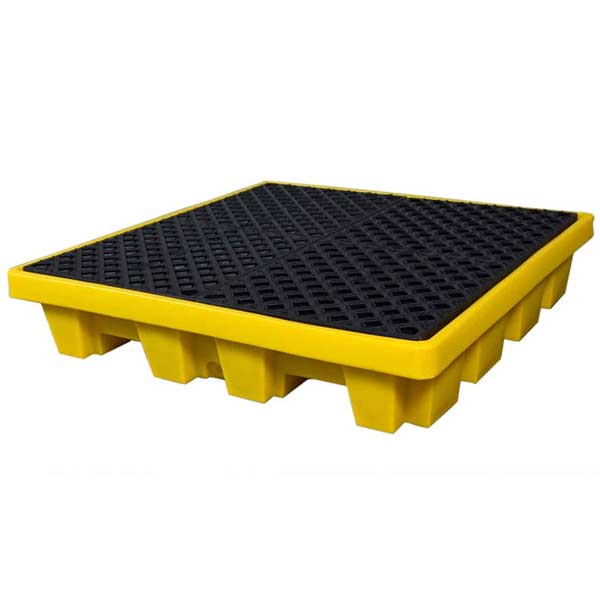

High Capacity Nestable Spill Containment Pallet for Drums
The Ultra-Spill Pallet Nestable is designed to provide large capacity spill containment while minimizing shipping and storage space. Its innovative nestable design allows multiple pallets to stack securely, maximizing space efficiency and reducing freight costs.
Features

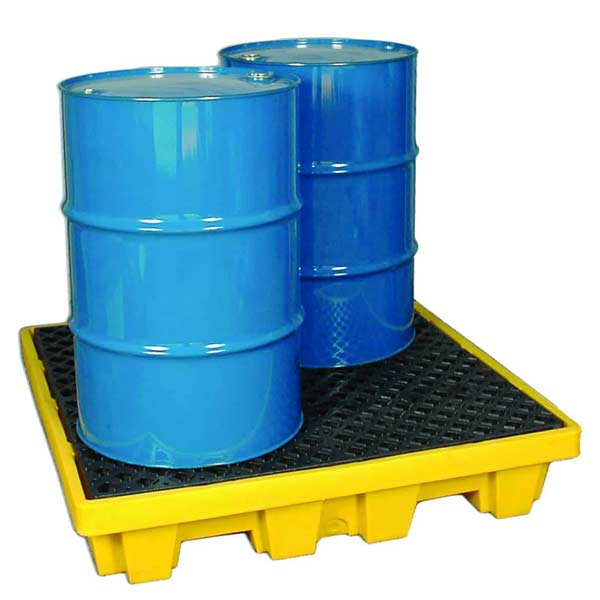

- Spill Capacity: 66 gallon sump engineered to contain leaks and spills from up to four steel or polyethylene drums

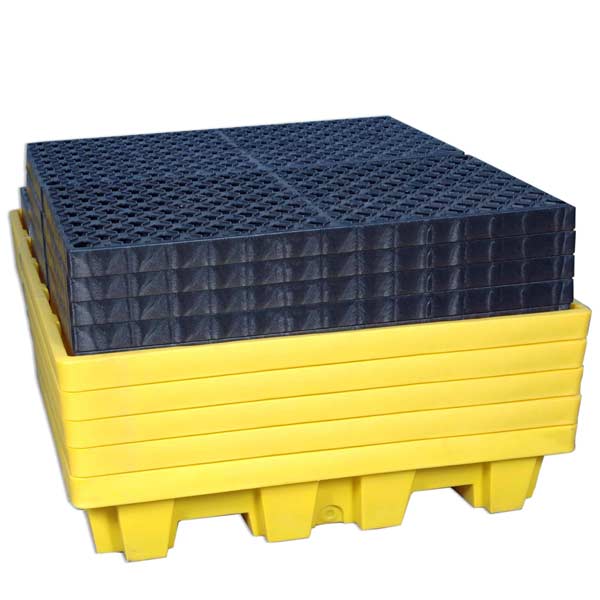

- Nestable Design: Sumps fit within each other for optimized storage and transportation supporting high volume shipment efficiency
- Construction: Made from 100% linear low density polyethylene providing chemical resistance to acids corrosives and a wide range of industrial liquids
- Low Profile: 10 inch height improves accessibility and handling of drums while enhancing operator safety
- Forklift Compatibility: Two way forkliftable for simple positioning relocation and integration into facilities
The Ultra-Spill Pallet Nestable complies with EPA and SPCC spill containment regulations and is ideal for facilities requiring space efficient high performance spill management solutions
Specifications
| Part No. | Description | Outside Dimensions (In.) | Sump Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV1230 | Nestable Model, Without Drain | 51 x 51 x 10 | 48 x 48 | 6000 | 66 | 80 |
| CV1231 | Nestable Model, With Drain | 51 x 51 x 10 | 48 x 48 | 6000 | 66 | 80 |
Ultra-Spill Pallet Nestable Accessories
These accessories complement the Ultra-Spill Pallet Nestable line, providing safer handling, easier access, and added protection for oil drums.
| Part No. | Description | Dimensions (Inches) | Load Capacity (UDL) | Containment Capacity (Gallons) | Weight (Lbs.) |
|---|---|---|---|---|---|
| CV0676 | CV0676 Ramp | 55.5 × 28.5 × 8.75 | 700 | — | 43 |

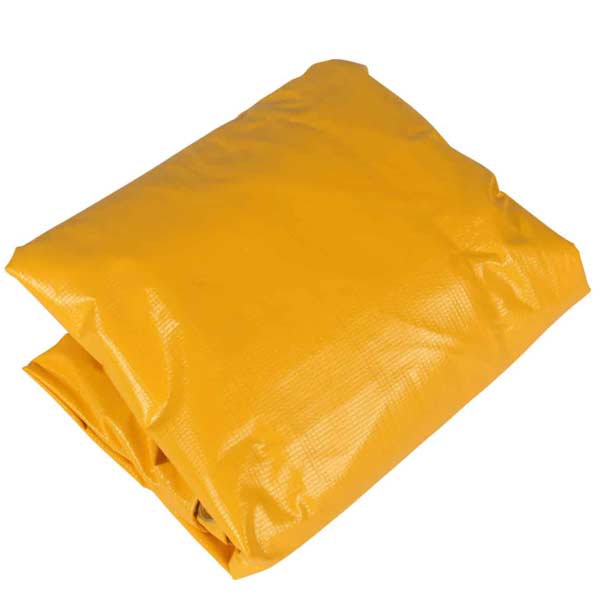

| CV1006 | P4 Pullover Cover | 13 × 12 × 5 | N/A | N/A | 7 |
