Ultra-Spill Deck, a One-Piece Spill Containment Decks for Six or Eight Drums

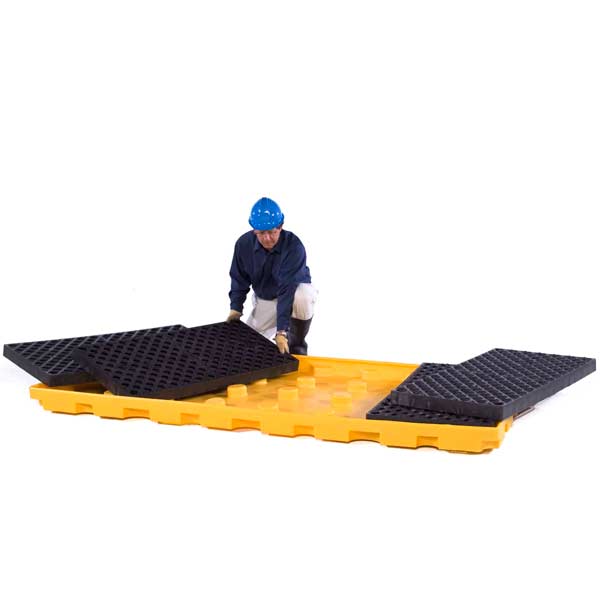

The Ultra-Spill Deck P6 and P8 Models are designed to provide reliable and efficient secondary containment for multiple fifty five gallon drums in industrial and laboratory environments. These decks offer a simplified solution for facilities that require compliant spill management without the complexity of modular assembly. Unlike modular Ultra-Spill Decks that require connections between multiple units, the P6 and P8 models feature a single-piece sump with separate grating, delivering ready-to-use containment directly out of the shipping container.

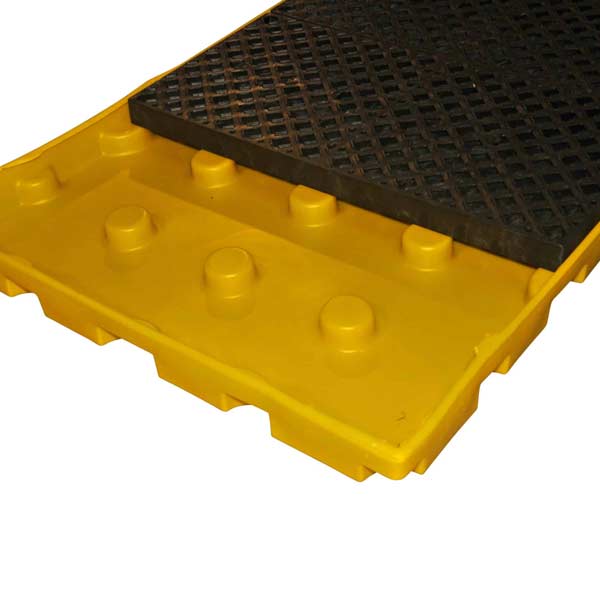

Each deck is constructed from high-density polyethylene (HDPE), providing chemical resistance and durability under repeated industrial use. The one-piece molded sump captures spills, drips, and leaks while maintaining compliance with EPA and SPCC secondary containment regulations. The separate grating elevates drums above the sump, allowing hazardous fluids to drain safely while providing a slip-resistant surface for personnel handling drums. The grates incorporate a diamond plate design for enhanced safety and stability during loading and unloading operations.
The Ultra-Spill Deck P6 and P8 Models are engineered to support heavy loads. Each deck can sustain a uniformly distributed load of up to 1,500 pounds per drum, ensuring stability even under full capacity. The elevated grating design maintains separation between stored chemicals and the containment basin, facilitating inspection, maintenance, and cleaning while reducing direct contact with collected liquids.
Ultra-Spill Deck Features
- Available in six-drum (P6) and eight-drum (P8) configurations
- One-piece molded polyethylene sump for integrated containment
- Elevated polyethylene grating with slip-resistant diamond plate surface
- Supports up to 1,500 pounds per drum UDL (uniformly distributed load)
- Compliant with EPA and SPCC secondary containment standards
- Ready-to-use with no assembly required
- Suitable for satellite waste collection or storage of virgin chemicals
- Elevated grates allow safe drum handling and easy sump access
Ultra-Spill Deck Specifications
| Part No. | Description | Dimensions (Inches) | Grating Surface (Inches) | Weight Capacity UDL (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
|
CV1075 |
P8 (8-Drum) | 98.5 x 50 x 5.3 | 96 x 48 | 12,000 | 75 | 110 |
|
CV1175 |

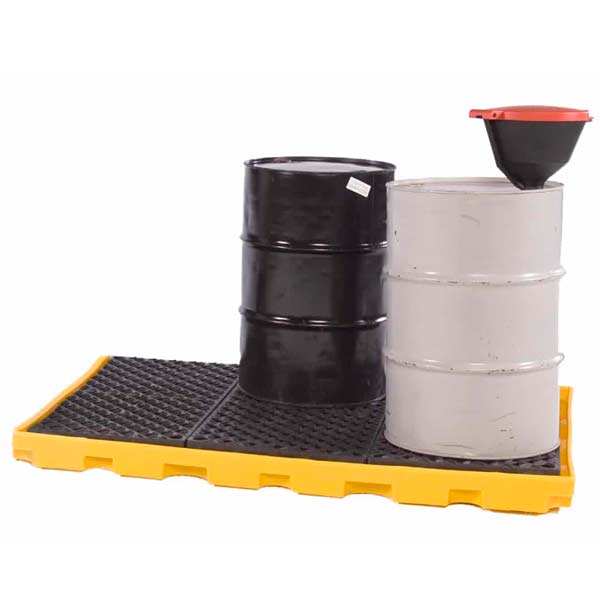

P6 Model | 74.3 x 50 x 5.3 | 72 x 48 | 9,000 | 66 | 86 |
Ultra-Spill Deck Accessories
| Part No. | Description | Outside Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|
|
CVLR1089 |
Loading Ramp | 32 × 24 × 5.8 | 600 | — | 17 |
Operational Advantages

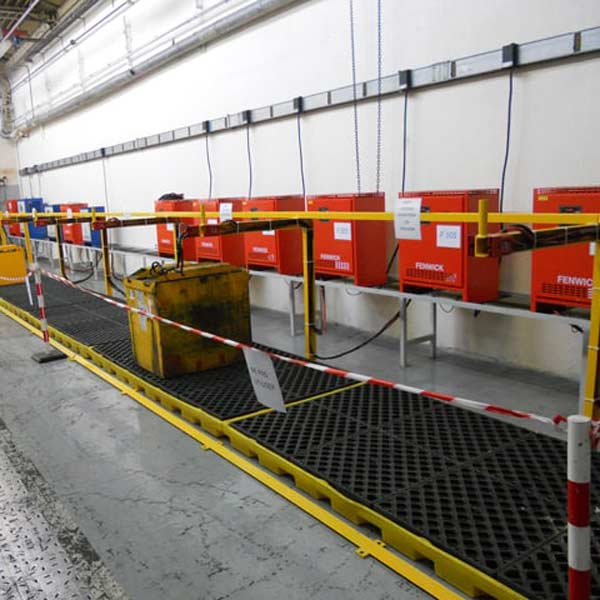

The P6 and P8 Models provide a technically reliable containment solution for facilities prioritizing simplicity, safety, and compliance. The one-piece construction minimizes potential failure points, reduces assembly time, and simplifies cleaning and maintenance. These decks are ideal for chemical storage, process staging areas, and satellite collection sites, offering consistent secondary containment performance.
By combining durability, regulatory compliance, and simplified operation, the Ultra-Spill Deck P6 and P8 Models provide dependable protection against hazardous material spills while maintaining efficient workflow and operational safety.
