Ultra Spill Deck Flexible Low Profile Containment for Storage Efficiency and Regulatory Compliance
The Ultra Spill Deck Flexible is engineered for facilities that need reliable containment without the bulk associated with traditional hard walled containment. Standard containment units are large because they must provide enough sump capacity for a fifty five gallon drum in order to support regulatory compliance. The size and rigidity of those systems make shipping and storage more difficult for operations that manage limited space. The Ultra-Spill Deck Flexible reduces shipping costs and storage space while maintaining the same containment performance once assembled.

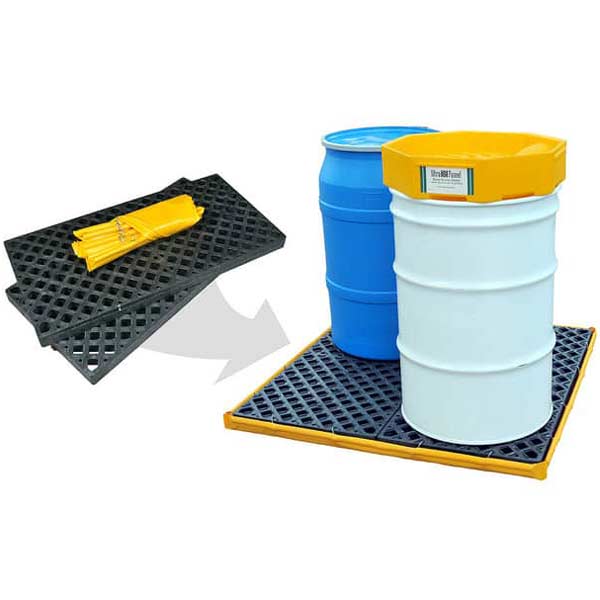

This design replaces the rigid polyethylene sump found in standard Ultra Spill Decks with a durable PVC fabric sump. The flexible sump material significantly reduces the unassembled footprint and allows the components to be stored or shipped in a compact form. The PVC fabric is a heavy duty 18 oz. construction that resists wear during routine handling and folds or rolls easily when the containment is not in use. Once assembled, the deck functions the same as a fixed wall spill deck. Drums sit on a polyethylene grate, and any incidental leakage drains directly into the PVC sump for controlled containment.

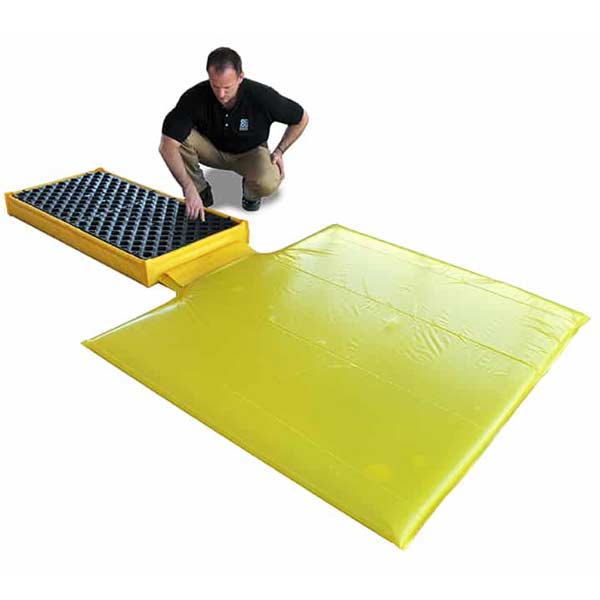

Facilities can place decks individually or connect sections using optional bulkhead fittings to create larger containment zones for multi drum storage or process work areas. Models with the integrated bladder system (CV1360, CV1361 and CV1362) include a sixty six gallon expansion bladder that deploys when the sump reaches capacity during a major spill event, increasing protection without requiring manual intervention.
Overall, the Ultra Spill Deck Flexible provides a low profile and space efficient alternative to rigid containment equipment. It maintains functional performance while reducing storage demands, simplifying transport, and supporting compliance with spill containment regulations. This makes it a practical solution for facilities looking to optimize floor space without compromising safety or containment capability.
Ultra-Spill Deck Flexible Specifications
| Part No. | Description | Dimensions (Inches) | Weight Capacity (Lbs) | Containment Capacity (Gallons) | Weight (Lbs) |
|---|---|---|---|---|---|
|

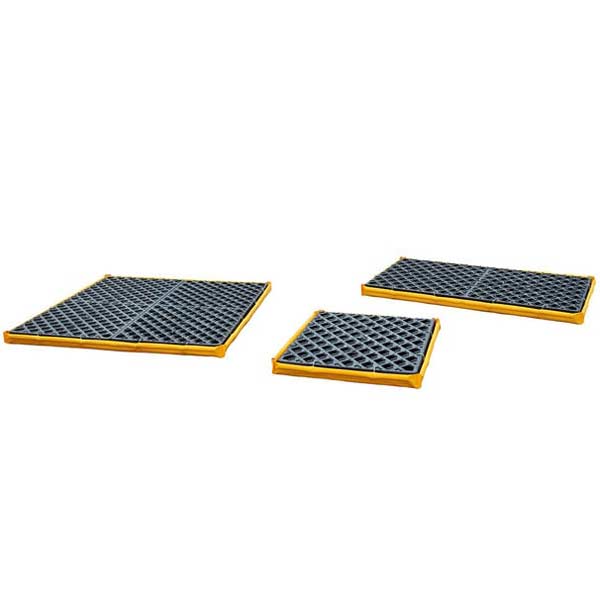

CV1350 |
P1 Flexible Model | 24 x 24 x 2.5 | 1,500 | 5.5 | 12 |
|
CV1351 |
P2 Flexible Model | 48 x 24 x 2.5 | 3,000 | 11 | 22 |
|
CV1352 |
P4 Flexible Model | 48 x 48 x 2.5 | 6,000 | 22 | 44 |
Ultra-Spill Deck Bladder System Flexible
| Part No. | Description | Dimensions (Inches) | Weight Capacity (Lbs) | Containment Capacity (Gallons) | Weight (Lbs) |
|---|---|---|---|---|---|
| CV1360 | P1 Bladder System | 27 x 24 x 5 | 1,500 | 77 | 15 |
|
CV1361 |
P2 Bladder System | 48 x 27 x 5 | 3,000 | 88 | 26 |
| CV1362 | P4 Bladder System | 51 x 48 x 5 | 6,000 | 110 | 50 |
Ultra-Spill Deck Flexible Accessories
| Part No. | Description | Outside Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|

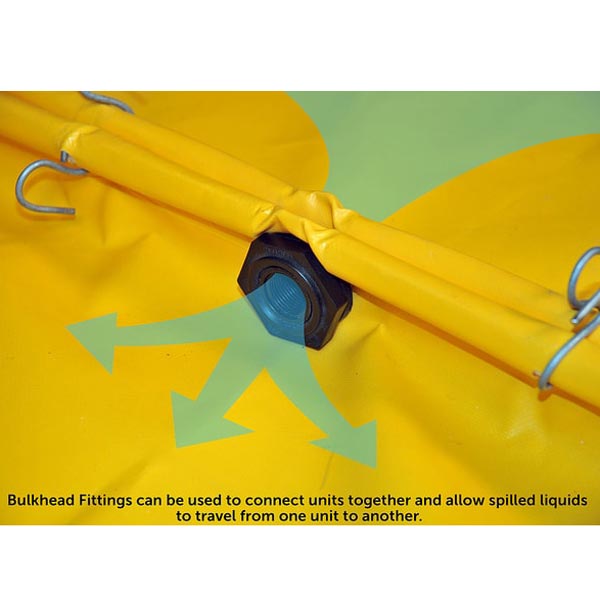

| CV1357 | Bulkhead Fitting | N/A | N/A | N/A | 1 |

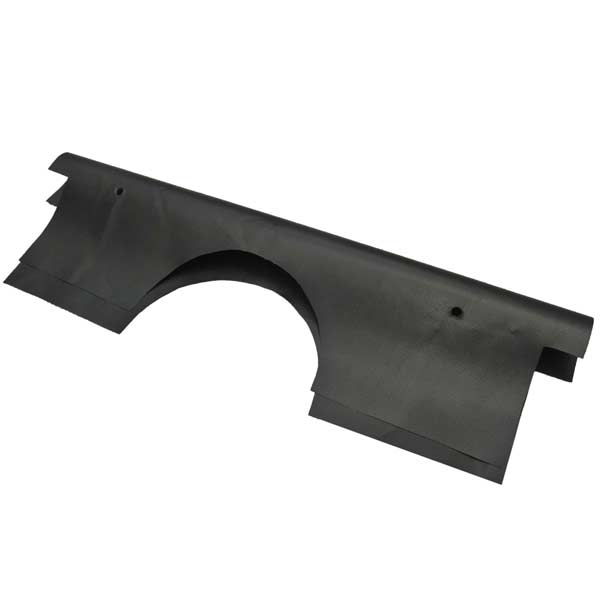

| CV1358 | Flex Bridge | 22 x 2 x 1.5 | N/A | N/A | 2 |
| CV2345 | Bladder Pump | 12 x 7 x 5.5 | N/A | N/A | 3 |
| CV2359 | Replacement Bladder | 66 x 58 x 0 | N/A | 66 | 2 |
