Low-Profile Spill Containment with Self-Deploying Bladder for 55 Gallon Drums
The Ultra-Spill Deck Bladder System is engineered to provide advanced, low-profile spill containment for industrial drums while maintaining compliance with EPA and SPCC regulations. Designed for one, two, or four drum configurations, this system integrates a self-deploying 66-gallon containment bladder, allowing the deck to capture large spills or leaks without requiring connection to additional spill decks. This innovation enables a single, compact deck to provide full regulatory compliance and operational flexibility in limited floor space environments.
Low-Profile Design for Safe Drum Handling
At only 5 3/4 inches in height, the Ultra-Spill Deck Bladder System minimizes lifting hazards and improves ergonomics during drum placement and pouring. The polyethylene LLDPE deck supports drums safely, and an optional LLDPE loading ramp further enhances handling efficiency. The low deck height makes it ideal for facilities that require spill containment without the footprint of taller, standard pallets, while still providing the capacity to manage minor leaks and overspills effectively.

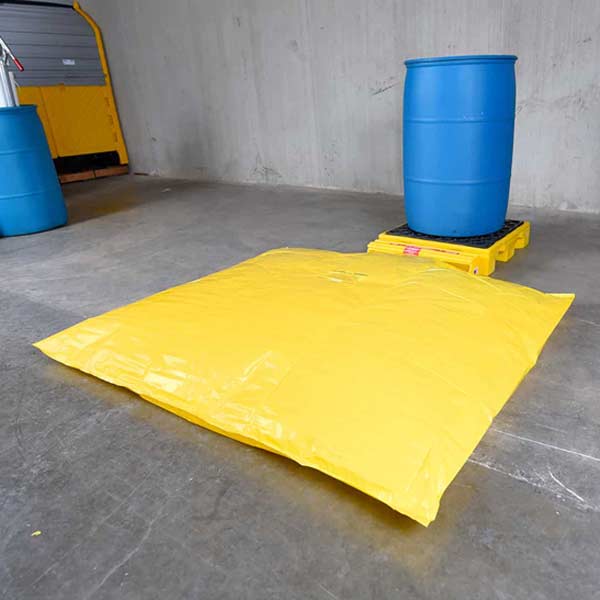

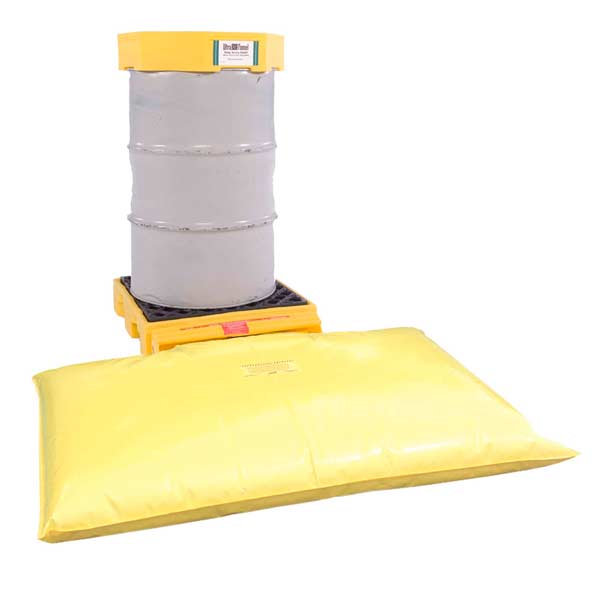

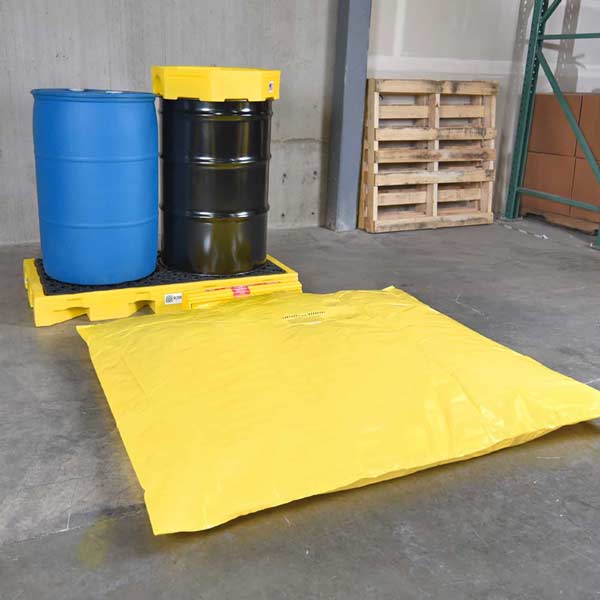

Self-Deploying Bladder for Catastrophic Spills
The integrated 66-gallon bladder remains rolled within the deck until needed. In the event of a large drum leak or catastrophic spill, the bladder automatically deploys, containing the fluid within the system. Smaller drips and overspills are captured in the standard sump, ensuring that all containment meets federal spill regulations without the need for additional connected units.
Ultra-Spill Deck Bladder System Features
- Low 5 3/4 inch profile for safe drum handling and reduced lifting risks
- Available in 1, 2, and 4 drum modules
- Constructed from chemical-resistant polyethylene LLDPE for durability and spill containment
- Self-deploying 66-gallon bladder for large spill containment
- Optional polyethylene loading ramp for enhanced operational safety and efficiency
- Compact footprint ideal for space-constrained environments
Ultra-Spill Deck Bladder System Specifications
| Part No. | Description | Outside Dimensions (In.) | Sump Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
|
CV1320 |

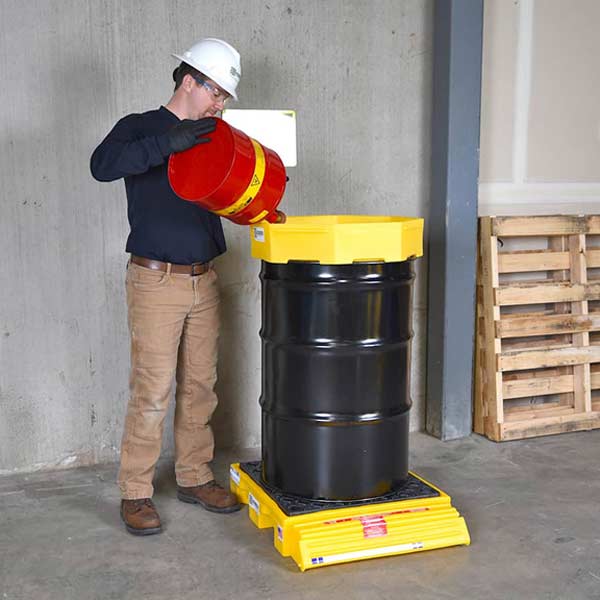

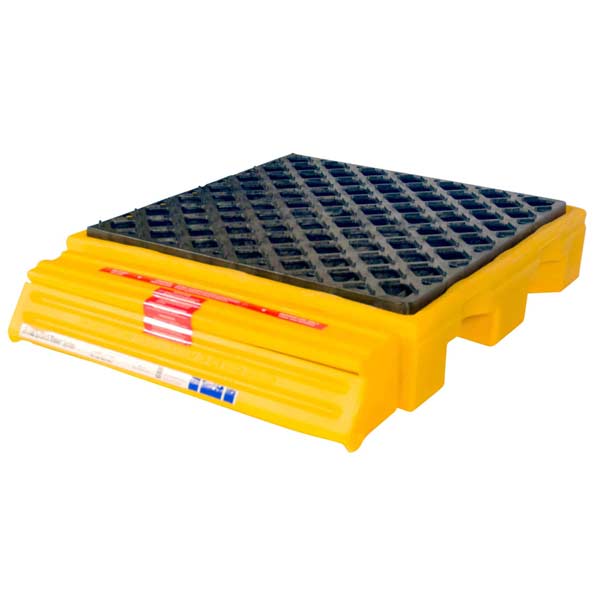

P1 Bladder System | 30.5 x 25.9 x 5.8 | 24 x 24 | 1,500 | With Bladder: 77, Sump Only: 11 | 27 |
|
CV2329 |

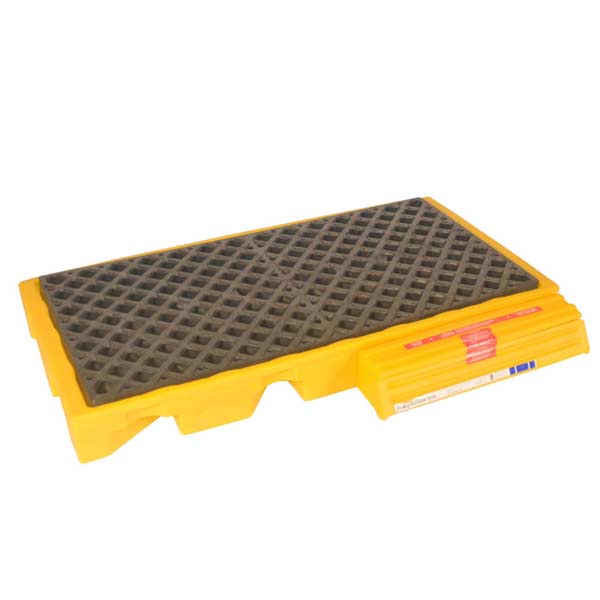

P2 Bladder System | 52 x 30.5 x 5.8 | 48 x 24 | 3,000 | With Bladder: 88, Sump Only: 22 | 44 |
|
CV2330 |

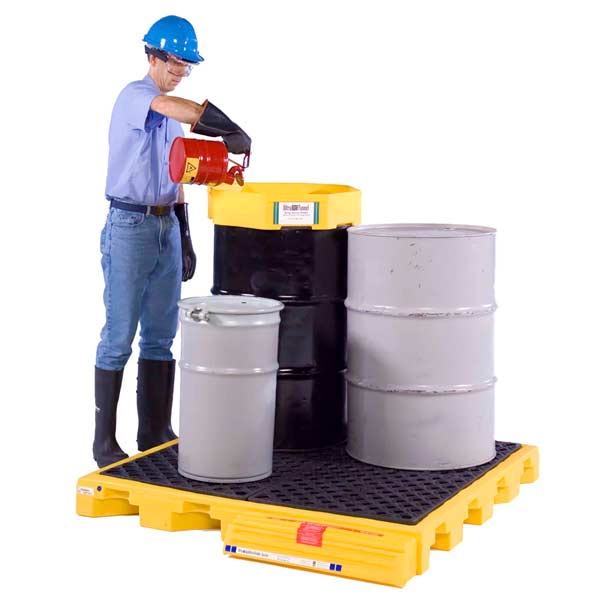

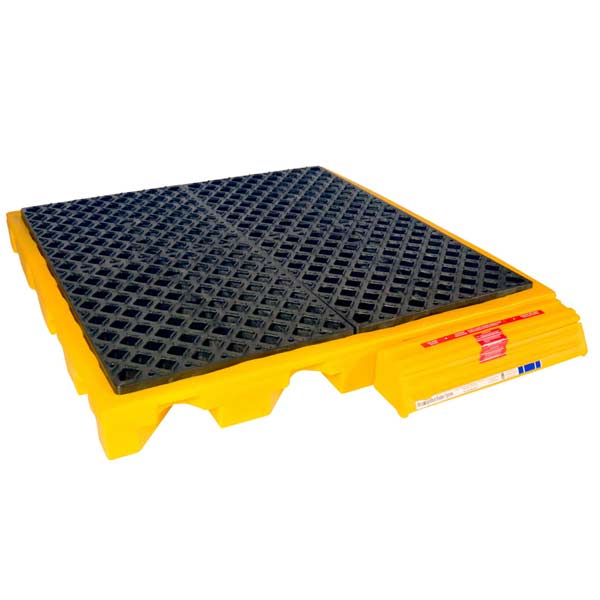

P4 Bladder System | 56.6 x 52 x 5.8 | 48 x 48 | 6,000 | With Bladder: 110, Sump Only: 44 | 66 |
Ultra-Spill Deck Bladder Accessories
| Part No. | Description | Outside Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|
|
CVLR1089 |
Loading Ramp for P2 and P4 | 32 x 24 x 5.8 | 600 | N/A | 17.0 |
|
CV2317 |
Bladder Attachment | 25.9 x 4.6 x 4.6 | N/A | 66 | 4 |
|
CV2345 |
Bladder Pump | 12 x 7 x 5.5 | N/A | N/A | 3 |
|
CV6340 |
Replacement Bladder | 66 x 65.5 x 4.5 | N/A | 66 | 2 |
