Low-Profile Modular Spill Containment for 55-Gallon Drums
The Ultra-Inline Spill Deck is engineered for efficient, compliant spill containment in industrial and warehouse environments where 55-gallon drums are stored in single-file arrangements along walls. This low-profile modular system maximizes floor space while maintaining compliance with EPA and SPCC spill containment regulations. Multiple decks can be connected using bulkhead fittings and integrated bladders to provide continuous secondary containment across several drums.
Modular Design for Wall-Aligned Drum Storage
The Ultra-Inline Spill Deck allows drums to be stored in a compact row configuration without sacrificing containment capacity. Each module integrates a low-profile polyethylene deck with the option of 66-gallon containment bladders. Bulkhead fittings securely connect multiple modules, allowing liquids to flow between connected decks while maintaining a continuous containment system. This design is ideal for facilities that require flexible layouts and expansion capabilities as storage needs increase.
Ultra-Inline Spill Deck Features
- Available in 3-drum, 4-drum, 5-drum, and 6-drum configurations
- Narrow 25 7/8 inch depth allows alignment along walls to optimize floor space

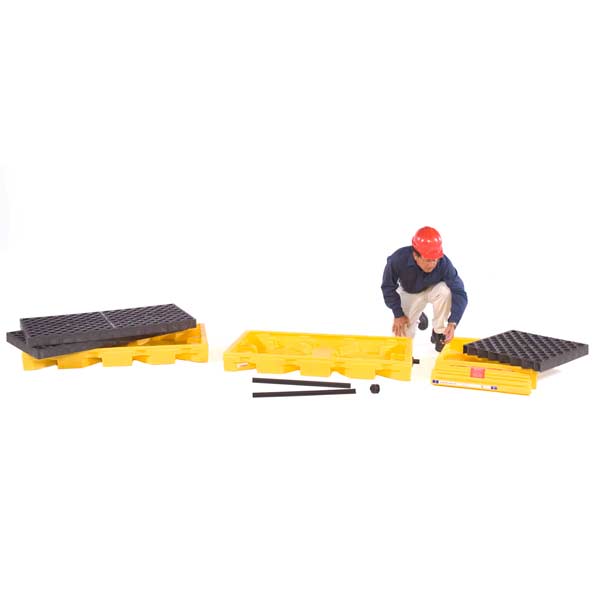

- Pre-drilled modules allow quick assembly without tools
- Bulkhead fittings securely connect modules and allow spill flow between decks
- Low-profile deck reduces lifting and handling hazards compared to taller spill pallets
- Additional modules can be added to expand containment capacity as operational requirements grow
The Ultra-Inline Spill Deck provides a technical solution for safe, space-efficient storage of multiple 55-gallon drums. Its modular design and integrated containment features reduce the risk of spills and improve workflow efficiency. The system is fully compliant with EPA and SPCC regulations, ensuring that both minor leaks and larger spills are safely contained. This makes the Ultra-Inline Spill Deck suitable for chemical storage, manufacturing, and warehouse applications requiring scalable and reliable secondary containment.
Ultra-Inline Spill Decks
| Part No. | Description | Outside Dimensions (In.) | Sump Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
|
CV2360 |
3-Drum Model | 77.9 x 25.9 x 5.8 | 72 x 24 | 4,500 | 99 | 67 |
|

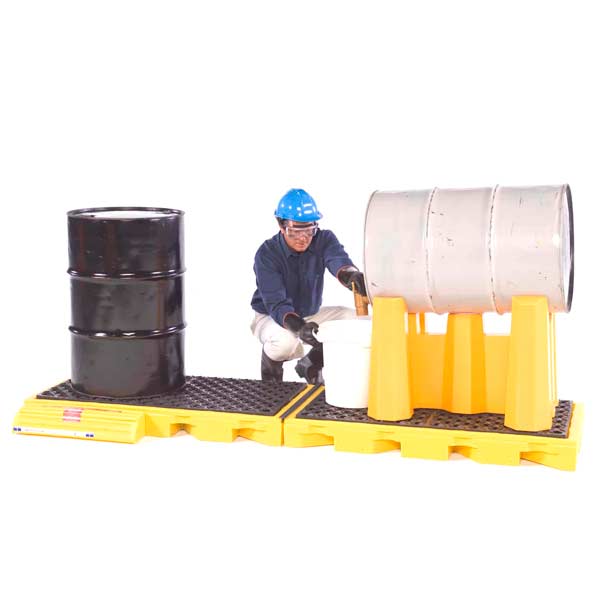

CV2361 |
4-Drum Model | 104 x 25.9 x 5.8 | 96 x 24 | 6,000 | 110 | 84 |
|

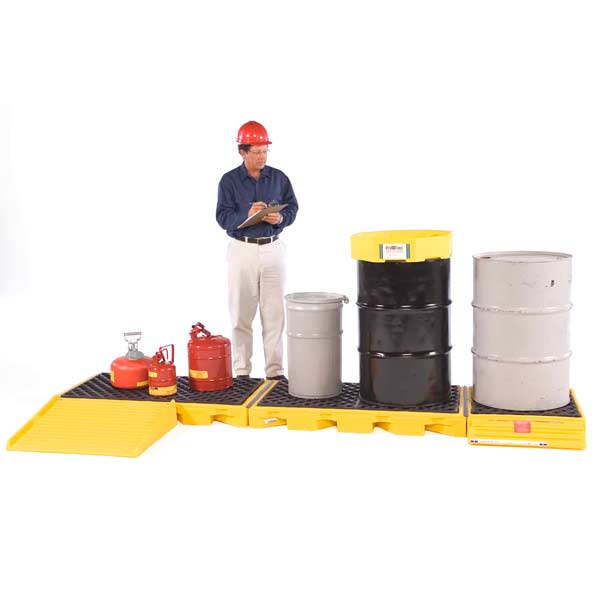

CV2333 |
5-Drum Model | 129.9 x 25.9 x 5.8 | 120 x 24 | 7,500 | 121 | 107 |
|
CV2334 |
6-Drum Model | 156 x 25.9 x 5.8 | 144 x 24 | 9,000 | 66 | 132 |
Ultra-Inline Spill Deck Accessories
| Part No. | Description | Outside Dimensions (In.) | Load Capacity (Lbs.) | Containment (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|
|
CVLR1089 |
Loading Ramp for P2 and P4 | 32 x 24 x 5.8 | 600 | N/A | 17.0 |
|
CV2317 |
Bladder Attachment | 25.9 x 4.6 x 4.6 | N/A | 66 | 4 |
|
CV2345 |
Bladder Pump | 12 x 7 x 5.5 | N/A | N/A | 3 |
|
CV6340 |
Replacement Bladder | 66 x 65.5 x 4.5 | N/A | 66 | 2 |
