Ultra-Twin IBC Spill Pallet

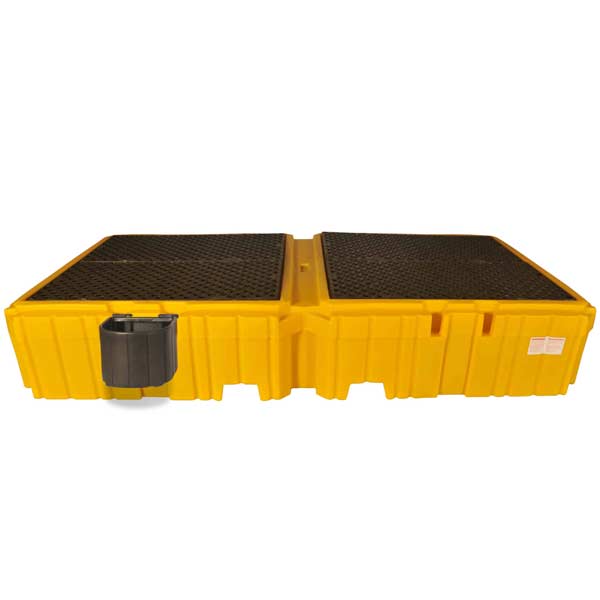

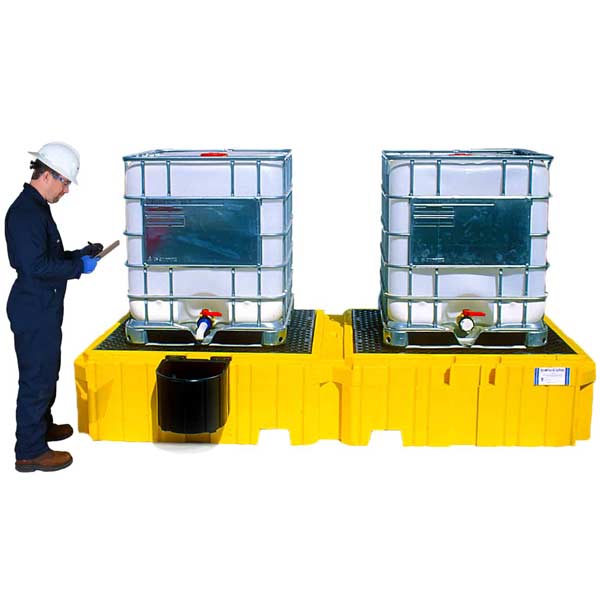

The Ultra-Twin IBC Spill Pallet provides an efficient solution for storing two intermediate bulk containers (IBCs) side-by-side while ensuring compliant spill containment. The unit features a large 535-gallon sump that meets EPA and SPCC regulations for dual IBC storage. Optional bucket shelves are available to catch drips and leaks from dispensing spouts, maintaining safety and cleanliness.

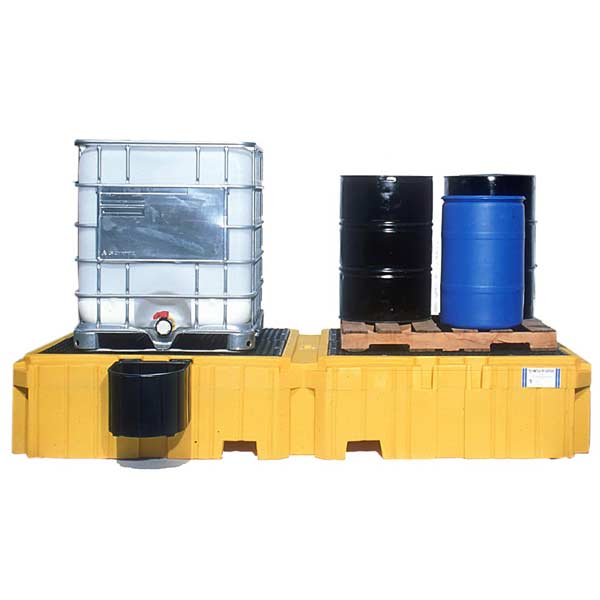

Designed for use with IBCs, drums, or other large vessels, the Ultra-Twin IBC Spill Pallet supports chemically compatible materials. Its all-polyethylene construction ensures superior chemical resistance, corrosion protection, and long-term durability under heavy-duty industrial use.
Features
- Large sump provides 535-gallon containment capacity for two IBCs
- Heavy-duty design supports up to 8,000 lbs per side

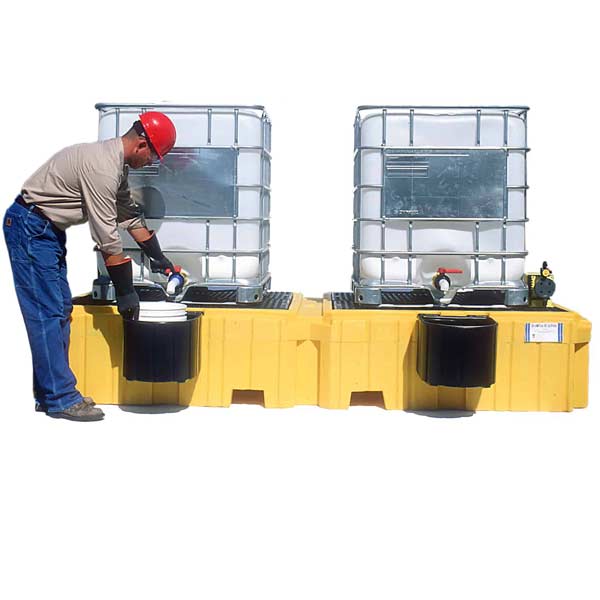

- Optional bucket shelves for capturing leaks during dispensing

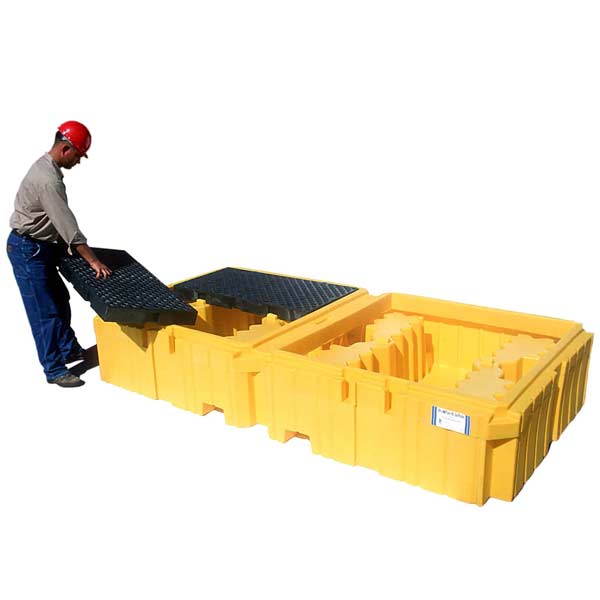

- Removable grates enable quick and easy clean-up
- Meets EPA spill containment and SPCC regulations
The pallet’s design ensures stability and safety during storage and handling of large containers. Installation is straightforward, and the unit accommodates modifications, such as adding bucket shelves on either or both sides. Regular cleaning is simplified by the removable grating, minimizing downtime and maintaining a safe working environment.
The Ultra-Twin IBC Spill Pallet is ideal for warehouses, manufacturing plants, and chemical storage facilities. It combines regulatory compliance, operational efficiency, and flexible functionality in a durable, low-maintenance containment system. By capturing spills at the source, the pallet protects personnel, equipment, and flooring from contamination and potential hazards.
Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity(Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV1140 | Without Drain | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 353 |
| CV1141 | Without Drain, 1 Bucket Shelf (Right) | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 361 |
| CV1142 | Without Drain, 1 Bucket Shelf (Left) | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 361 |
| CV1143 | Without Drain, 2 Bucket Shelves | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 373 |
| CV1144 | With Drain | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 353 |
| CV1145 | With Drain, 1 Bucket Shelf (Right) | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 361 |
| CV1146 | With Drain, 1 Bucket Shelf (Left) | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 361 |
| CV1147 | With Drain, 2 Bucket Shelves | 124.5 x 61.6 x 22 | 52 x 52 | 8000 | 535 | 373 |
Accessories
| Part No. | Description | Dimensions (In.) | Containment Capacity(Gal.) | Weight (Lbs.) |
|---|---|---|---|---|

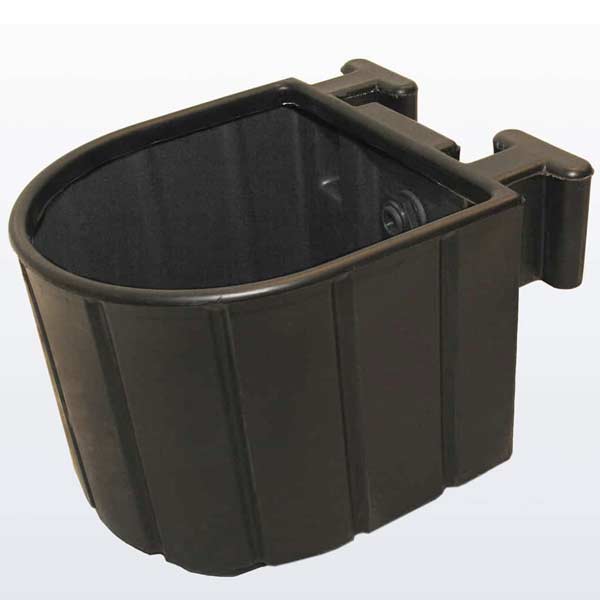

| CV1160 | Ultra-Bucket Shelf | 19.5 x 16 x 14.5 | 3 | 10 |
