The Ultra-Modular IBC Spill Pallet offers an economical, space-saving solution for indoor and outdoor containment of multiple intermediate bulk containers, totes, or tanks. By connecting individual spill pallets and sharing walls, this system allows for efficient storage while maintaining compliance with EPA regulations.
This modular system allows operators to scale containment solutions as needed, whether for indoor warehouse setups or outdoor chemical storage areas. The design enhances safety by preventing leaks and minimizing spill risks while reducing the overall footprint required for multiple IBC tanks.

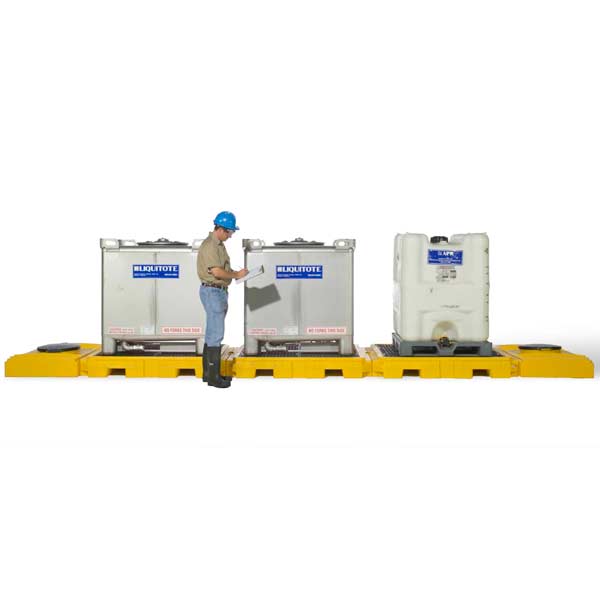

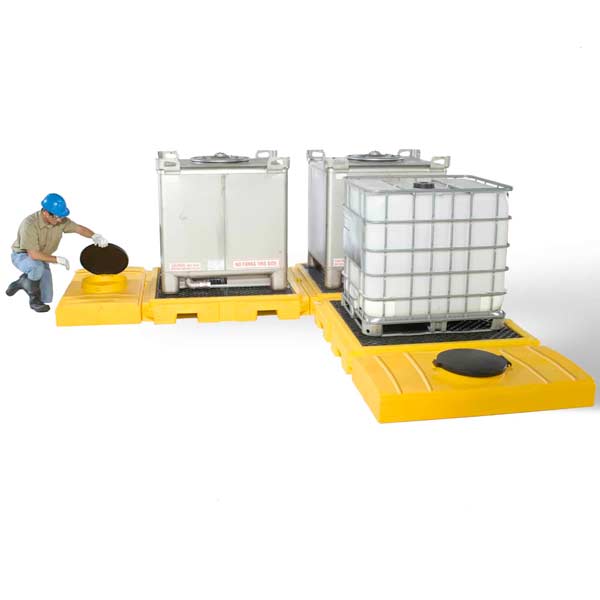

Ultra-Modular IBC Spill Pallets (Indoor)
The Ultra-Modular IBC Spill Pallet provides an economical, space-saving solution for indoor containment of multiple intermediate bulk containers, totes, or tanks. By connecting individual spill pallets and sharing walls, this system allows for efficient storage while maintaining compliance with EPA regulations.
Each indoor spill pallet is designed for heavy-duty use with a uniform load capacity of 9,000 lbs. The low-profile design provides a containment capacity of 75 gallons and measures 62″ x 62″ x 8.75″H, making it ideal for warehouse or facility environments.

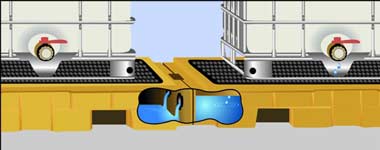

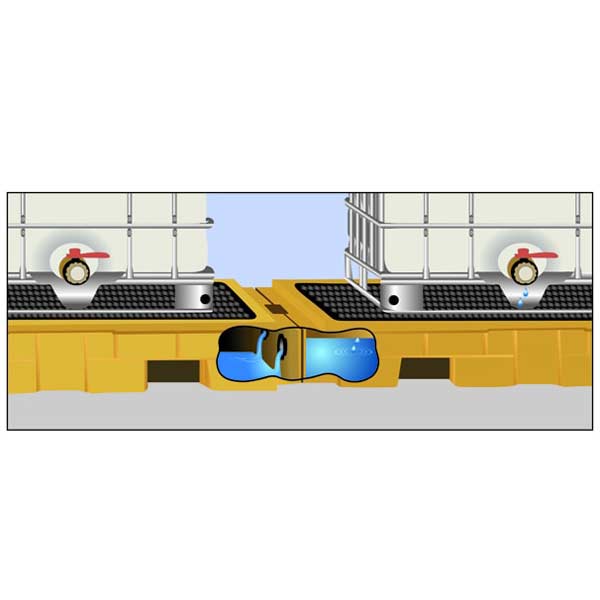

Bulkhead fittings connect individual spill pallets and expansion tanks, allowing liquids from one unit to flow into adjacent units. This channels spills throughout the system, effectively borrowing containment capacity from neighboring pallets, so overflow is safely captured and overall containment is maximized.
- Modular spill pallets can be connected with bulkhead fittings for shared containment
- Indoor pallet dimensions: 62 x 62 x 8.75 inches, containment 75 gallons
- Flow-through bulkhead fittings allow channeling of spills between units
- Expansion tanks with 65-gallon capacity are available to increase system containment
- Constructed of 100% chemical-resistant polyethylene, resistant to acids, solvents, and oils
- Scalable solution for indoor warehouse setups, enhancing safety and minimizing spill risks
Ultra-Modular IBC Spill Pallets (Indoor) Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV1118 | Assembly Kit (Required) | N/A | N/A | N/A | N/A | 2 |

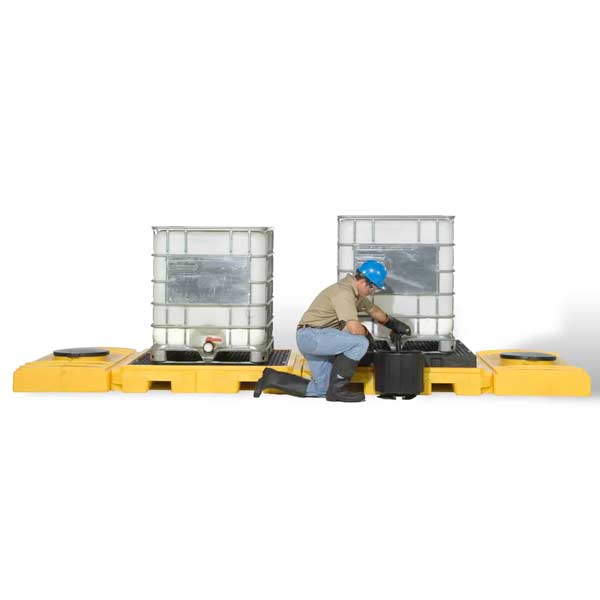

| CV1125 | 2-Tank Model | 186 x 62 x 11 | 52 x 52 | 9,000 | 280 | 310 |
| CV1126 | 3-Tank Model | 248 x 62 x 11 | 52 x 52 | 9,000 | 355 | 435 |

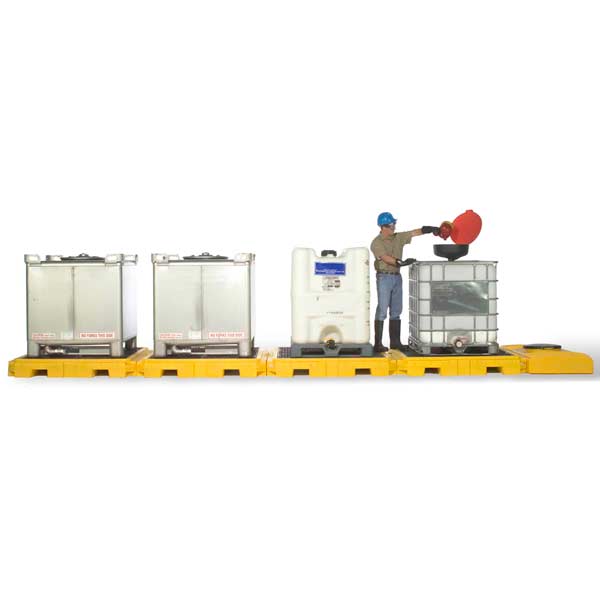

| CV1127 | 4-Tank Model | 279 x 62 x 11 | 52 x 52 | 9,000 | 365 | 531 |

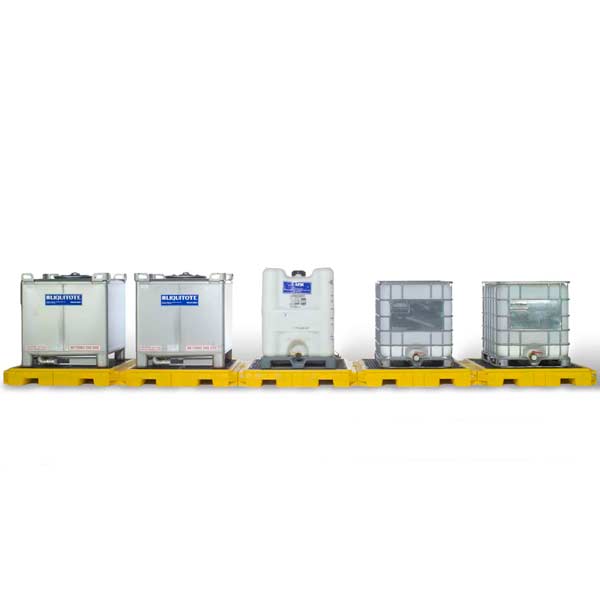

| CV1128 | 5-Tank Model | 310 x 62 x 11 | 52 x 52 | 9,000 | 375 | 625 |

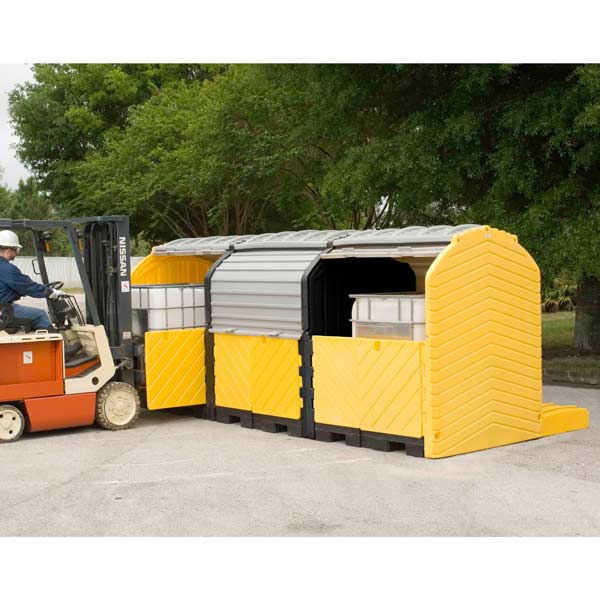

Ultra-Modular IBC Spill Pallets (Outdoor)
The Ultra-Modular IBC Spill Pallet provides a durable, space-efficient solution for outdoor containment of multiple intermediate bulk containers, totes, or tanks. By connecting individual spill pallets and sharing walls, this system allows operators to maximize containment capacity while meeting EPA regulations.
Outdoor spill pallets feature UV-inhibited polyethylene construction, ensuring long-term durability and resistance to sun degradation. Each pallet supports a uniform load of 9,000 lbs and includes a containment capacity of 75 gallons, with modular designs that can be connected via bulkhead fittings. Expansion tanks with 65-gallon capacity are available to increase system containment for larger setups.
- Modular spill pallets can be connected with bulkhead fittings for shared containment
- Outdoor pallets feature UV-inhibited polyethylene for extended outdoor life
- Flow-through bulkhead fittings allow channeling of spills between units

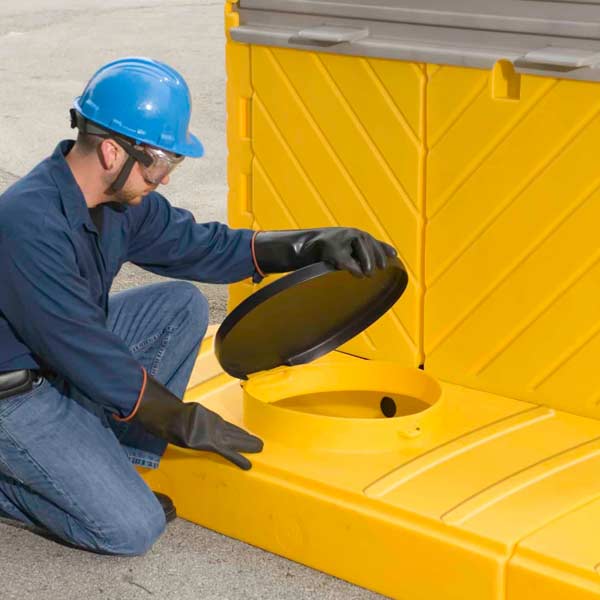

- Expansion tanks with 65-gallon capacity are available to increase system containment
- Constructed of 100% chemical-resistant polyethylene, resistant to acids, solvents, and oils
- Scalable solution for outdoor chemical storage areas, enhancing safety and minimizing spill risks
Ultra-Modular IBC Spill Pallets (Outdoor) Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV1118 | Assembly Kit (Required) | N/A | N/A | N/A | N/A | 2 |
| CV1165 | 2-Tank Outdoor Model | 126 x 93 x 79 | 52 x 52 | 9000 | 280 | 881 |

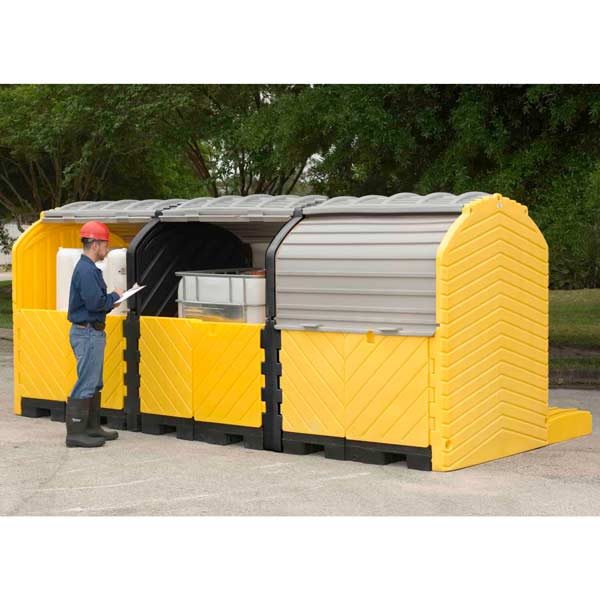

| CV1166 | 3-Tank Outdoor Model | 188 x 93 x 79 | 52 x 52 | 9000 | 355 | 1258 |

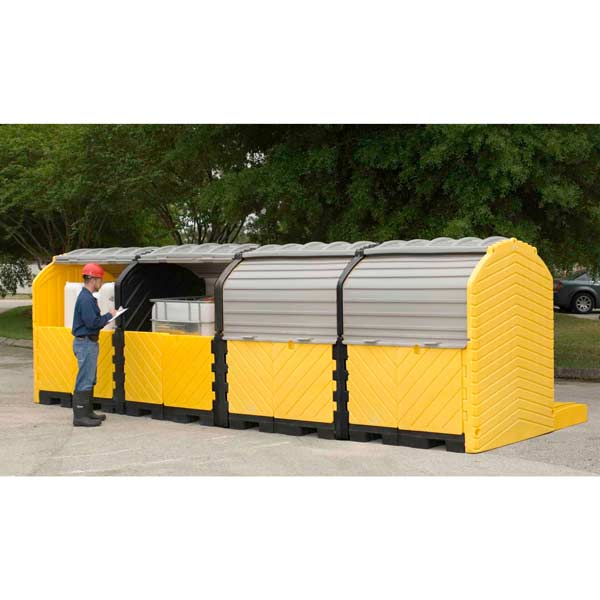

| CV1167 | 4-Tank Outdoor Model | 250 x 93 x 79 | 52 x 52 | 9000 | 365 | 1603 |
| CV1168 | 5-Tank Outdoor Model | 312 x 62 x 79 | 52 x 52 | 9000 | 375 | 1948 |
Accessories for Indoor and Outdoor Ultra-Modular IBC Spill Pallets
| Part No. | Description | Dimensions (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|

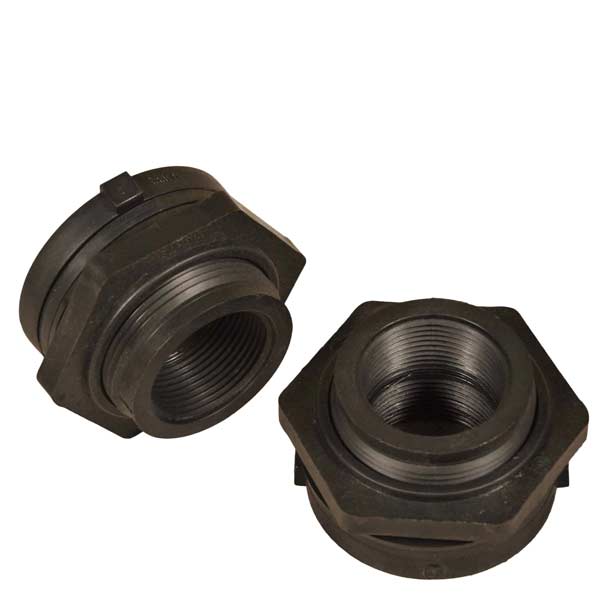

| CV1117 | 1.25″ Bulkhead Fittings (Set of 2) | 3 x 3 x 3 | N/A | N/A | 2 |

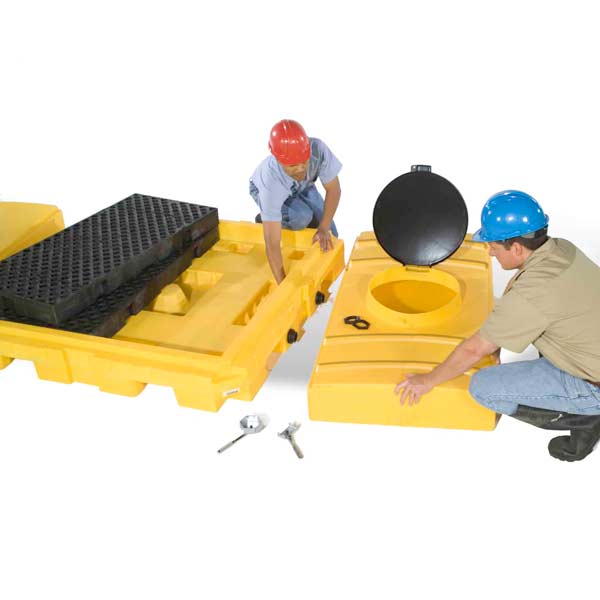

| CV1124 | Expansion Tank Only | 61 x 31 x 12.5 | N/A | 65 | 30 |

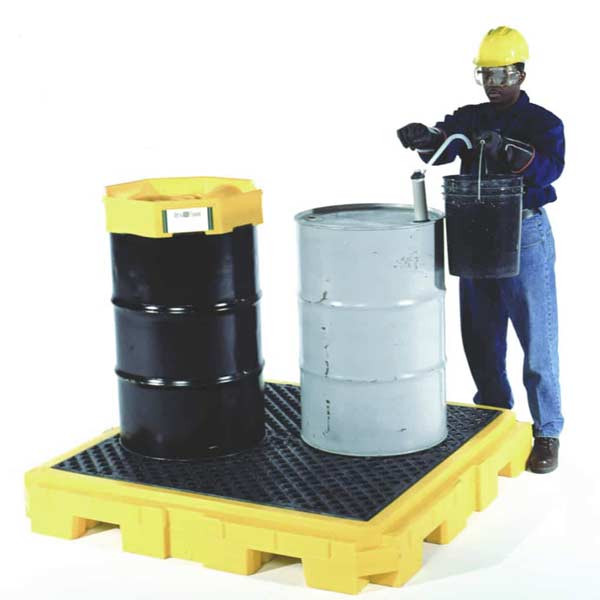

| CV9630 | Spill Pallet Only Without Drain | 62 x 62 x 8.8 | 9,000 | 75 | 140 |
| CV9658 | Extender Kit, Without Drain (Outdoor) | 64 x 62 x 79 | 9,000 | 75 | 375 |
