Ultra-IBC Spill Pallet Plus

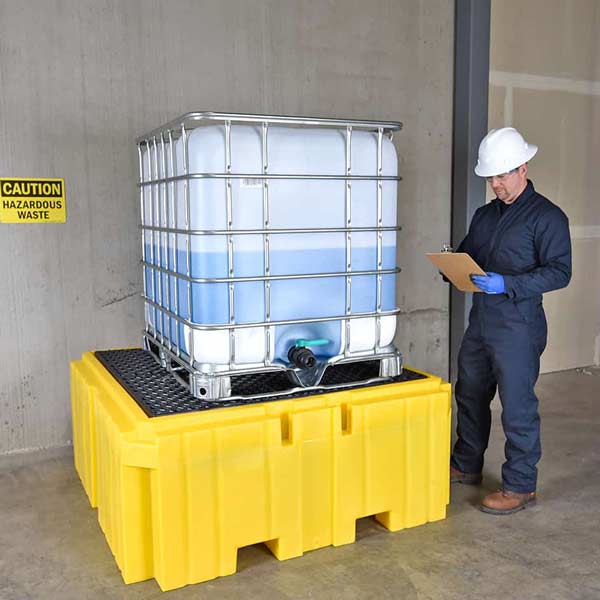

The Ultra-IBC Spill Pallet Plus provides reliable containment for IBCs, tanks, and other large containers. Designed with a 365-gallon sump, this spill pallet meets EPA and SPCC spill containment regulations, ensuring compliance in industrial and commercial storage areas. Constructed entirely from linear low-density polyethylene (LLDPE), the IBC Pallet offers excellent chemical compatibility and long-lasting durability. Forklift pockets are integrated into the design, allowing safe and efficient movement within warehouse or facility environments.
The low-profile design, measuring 26 inches in overall height, facilitates safe and convenient handling of IBC tanks during dispensing and storage operations. The all-polyethylene construction ensures resistance to chemical corrosion and prevents rusting, providing a maintenance-free solution for demanding industrial applications. The unit’s large grated deck, 52 inches by 52 inches, accommodates a wide range of IBC containers while maintaining an overall compact footprint of 62 inches by 62 inches, optimizing floor space.

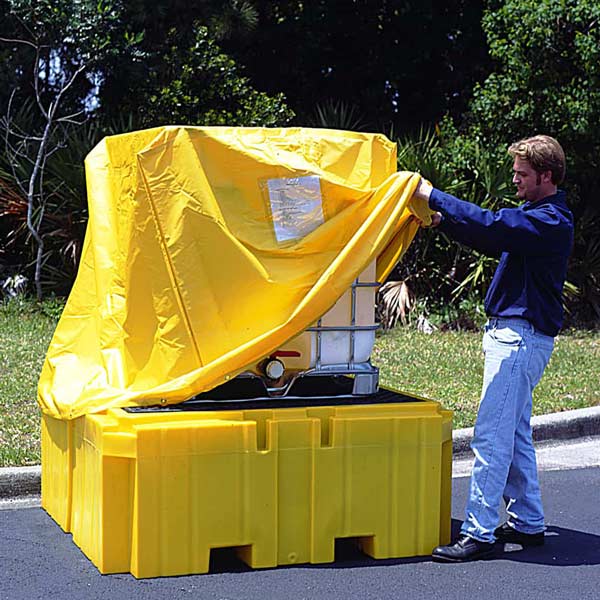

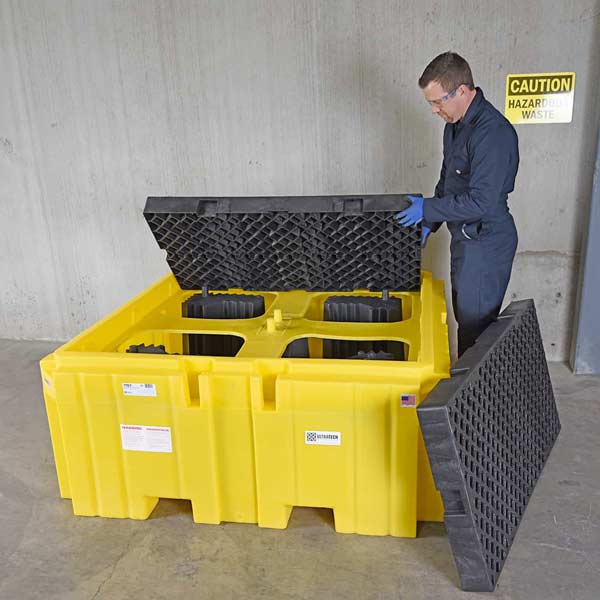

The 365-gallon sump capacity supports regulatory compliance for container storage and spill containment under SPCC and EPA guidelines. Optional accessories, such as the pull-over cover, prevent rainwater accumulation in the sump and contribute to effective stormwater management. Five inner polyethylene columns provide uniform support for loads up to 8,500 pounds, and all components are designed for easy removal to allow thorough cleaning.
For additional spill management, an optional bucket shelf captures minor dispensing spills. Any fluid exceeding three gallons is channeled directly into the 365-gallon sump through a bulkhead fitting, reducing cleanup and enhancing facility safety. The Ultra-IBC Spill Pallet Plus combines durability and regulatory compliance to provide an effective solution for secondary containment of large containers in industrial environments. Its design emphasizes safety, chemical resistance, and functional efficiency, making it suitable for warehouses, manufacturing facilities, and storage yards that require secure spill management.
Cross of Life Structural Design

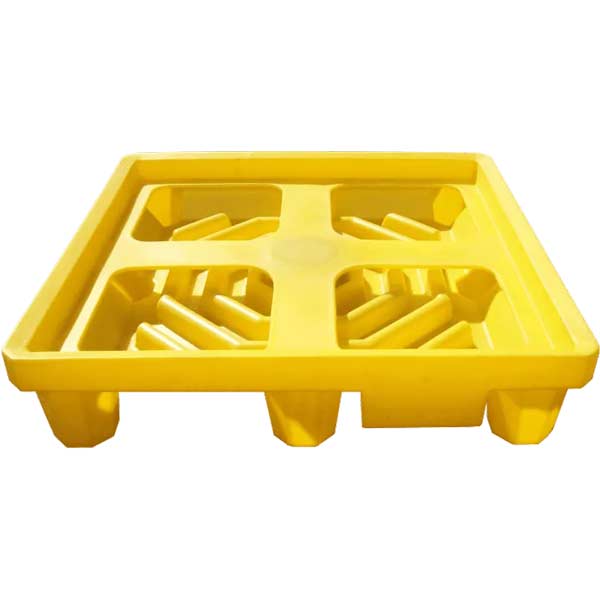

The pallet incorporates an innovative “Cross of Life” internal support system, specifically engineered to preserve structural integrity under heavy loads. The molded LLDPE cross connects all four sidewalls, channeling downward forces from the grates toward the center of the pallet. As weight increases on the top surface, the Cross of Life design counteracts lateral sidewall deformation, effectively pulling the walls inward and preventing sagging over time. This design ensures consistent performance, durability, and long-term load-bearing capacity.
Ultra-IBC Spill Pallet Plus Specifications
| Part No. | Description | Dimensions (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|
| CV1157 | IBC Plus Without Drain | 62 x 62 x 26 | 8,500 | 365 | 230 |
| CV1158 | IBC Plus With Drain | 62 x 62 x 26 | 8,500 | 365 | 230 |
Accessories
| Part No. | Description | Dimensions (In.) | Weight (Lbs.) |
|---|---|---|---|
| CV1159 | Pull Over Cover | 63.5 x 63.5 x 52 | 10 |
| CV1160 | Ultra-Bucket Shelf, 3 Gallon Capacity | 19.5 x 16 x 14.5 | 10 |
