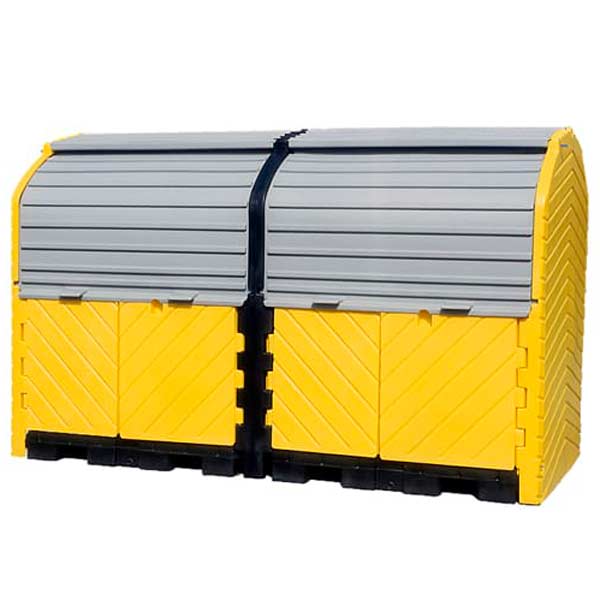

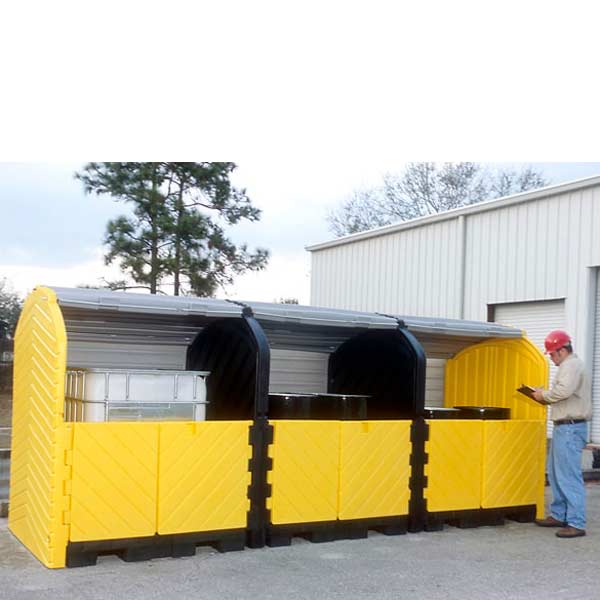

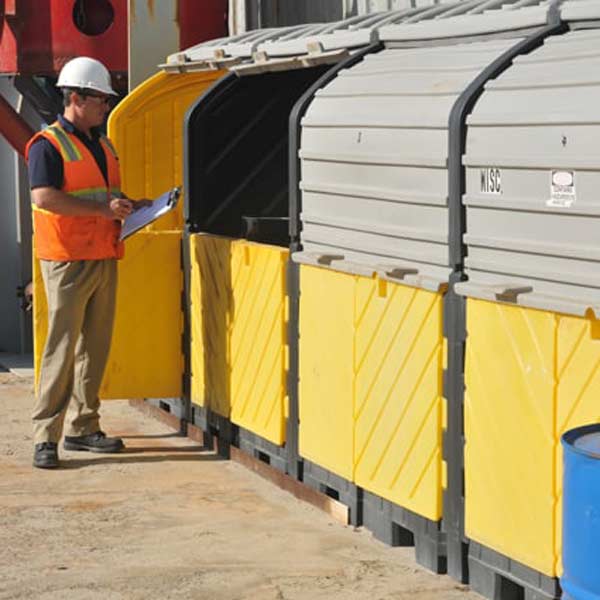

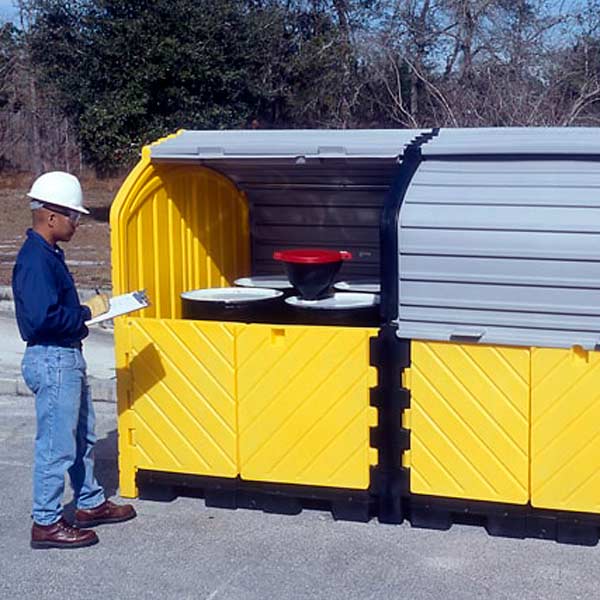

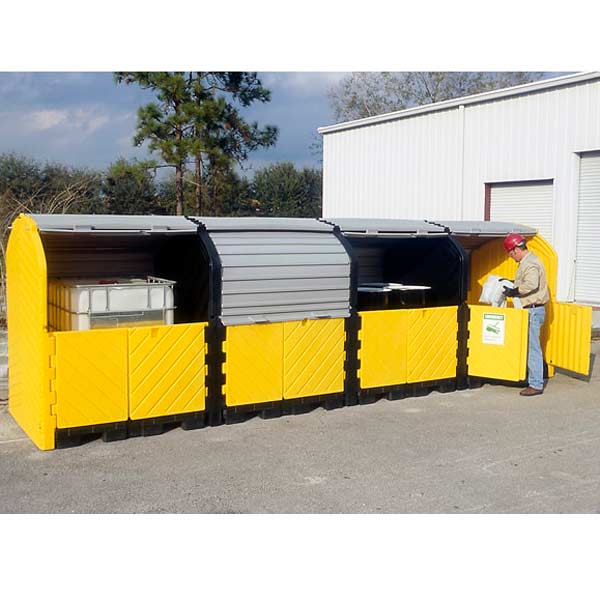

Ultra Hard Top Spill Pallets Plus, Large Capacity Outdoor Spill Containment for Multi Drum Storage
The Ultra Hard Top Spill Pallets Plus line is engineered for facilities that require high volume outdoor drum storage combined with compliant secondary containment. These systems provide a single, covered containment area designed to hold multiple drums in one centralized location, reducing footprint and simplifying hazardous material management. Models are available in configurations for 8, 12, 16 and 20 drums, and extender kits allow the system to expand beyond 20 drums when additional capacity is required.
Constructed entirely from polyethylene, the Ultra Hard Top Spill Pallets Plus systems are resistant to a wide range of chemicals and will not rust or corrode in outdoor environments. The LLDPE resin includes a UV inhibitor that protects the material from sunlight exposure, ensuring long term structural performance and stability. These characteristics make the units suitable for year round outdoor use in facilities that manage chemical storage, waste collection or spill response materials.

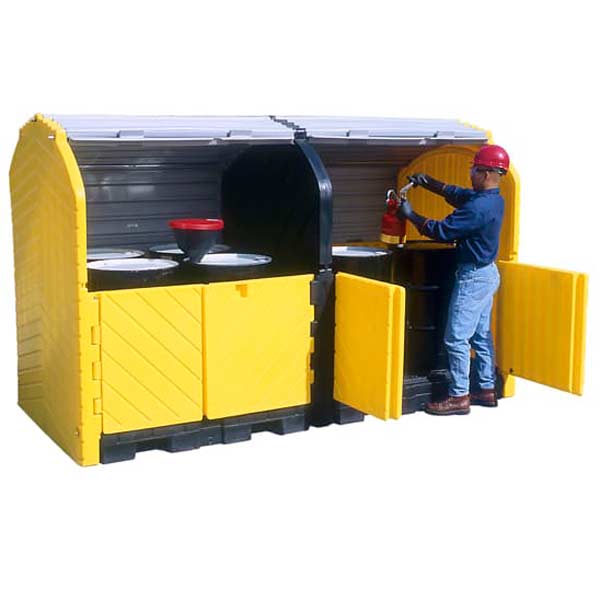

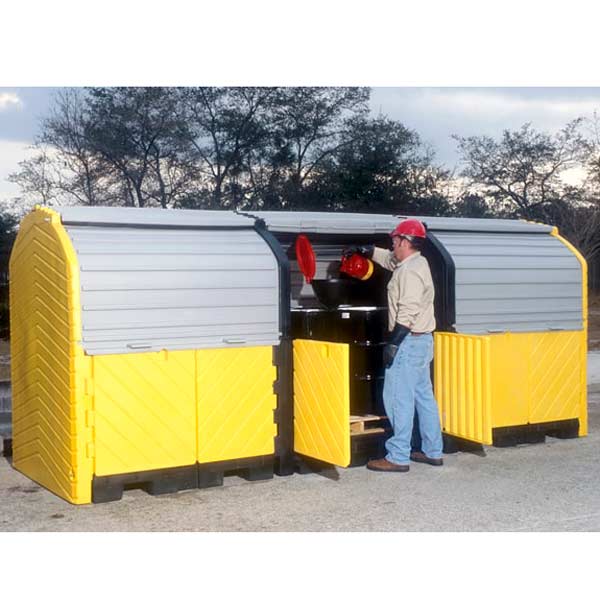

The containment pallets feature a low profile height of 8 3/4in. This design keeps drum tops at an accessible working level, improving ergonomics during fluid transfer, pump use and funnel placement. Roll top covers lift easily from waist height, offering quick access to drum tops while maintaining weather protection and security when closed. The uniformly distributed load capacity of nine thousand pounds supports the weight of both standard drums and intermediate bulk containers, allowing flexibility for various storage requirements.
Multiple four drum compartments are incorporated into the system, providing structured separation for different materials or waste streams. Internal walls and separate sumps keep incompatible substances isolated, enhancing overall safety and helping facilities maintain compliance with environmental regulations. Lockable compartments add an additional layer of security and include a two way entry system that allows access to all four drums without repositioning equipment. Swing out doors support safe loading and unloading operations.

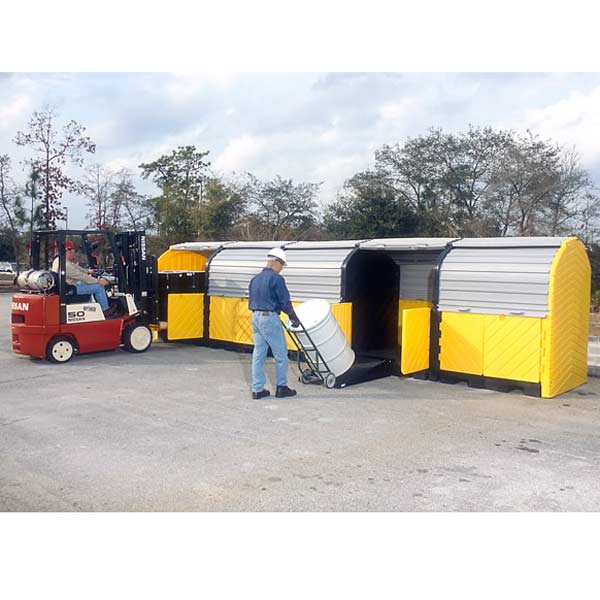

An optional ramp can be used to improve drum handling efficiency and stores inside the hard top when not in use. The modular design, high load capacity and corrosion resistant construction make the Ultra Hard Top Spill Pallets Plus a reliable choice for large scale outdoor containment applications.
Ultra Hard Top Spill Pallets Plus Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
|
CV9650 |
P8 Without Drain | 126 x 62 x 79 | 52 x 52 | 9000 | 75 | 815 |
|
CV9651 |
P8 With Drain | 126 x 62 x 79 | 52 x 52 | 9000 | 75 | 815 |
|
CV9652 |
P12 Without Drain | 188 x 62 x 79 | 52 x 52 | 9000 | 75 | 1190 |
|
CV9653 |
P12 With Drain | 188 x 62 x 79 | 52 x 52 | 9000 | 75 | 1190 |
|
CV9654 |
P16 Without Drain | 250 x 62 x 79 | 52 x 52 | 9000 | 75 | 1565 |
|
CV9655 |
P16 With Drain | 250 x 62 x 79 | 52 x 52 | 9000 | 75 | 1565 |
|
CV9656 |
P20 Without Drain | 312 x 62 x 79 | 52 x 52 | 9000 | 75 | 1940 |
|
CV9657 |
P20 With Drain | 312 x 62 x 79 | 52 x 52 | 9000 | 75 | 1940 |
Ultra Hard Top Spill Pallets Plus Accessories
| Part No. | Description | Dimensions (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|
| CV0676 | Ramp | 55.5 × 28.5 × 8.75 | 700 | — | 43 |
| CV9658 | Extender Kit Without Drain | 64 x 62 x 79 | 9000 | 75 | 375 |
| CV9659 | Extender Kit With Drain | 64 x 62 x 79 | 9000 | 75 | 375 |
