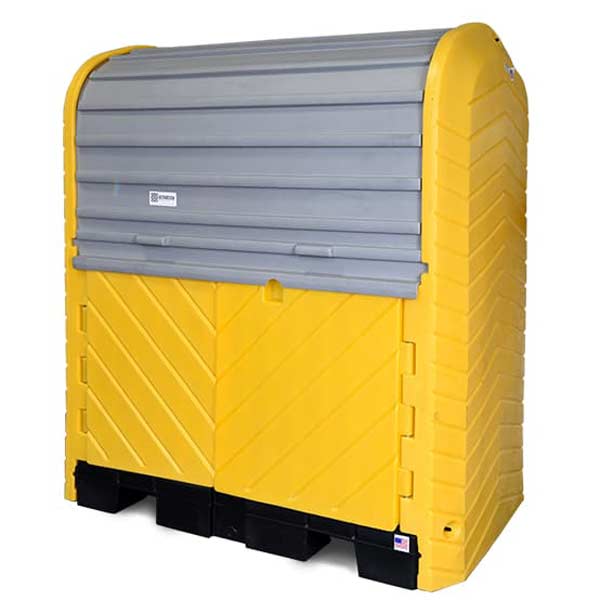

Ultra-Hard Top Spill Pallet Plus

Ultra-Hard Top Spill Pallet Plus, A Durable Outdoor Spill Containment Pallet for Hazardous Drums

The Ultra-Hard Top Spill Pallet Plus provides a secure and functional solution for storing hazardous drums outdoors while maintaining full accessibility for pumps and funnels. Designed for one to four 55-gallon drums depending on the model, this spill containment pallet combines safety, durability, and ergonomic handling features for industrial and commercial applications.

Ultra-Hard Top Spill Pallet Plus Features

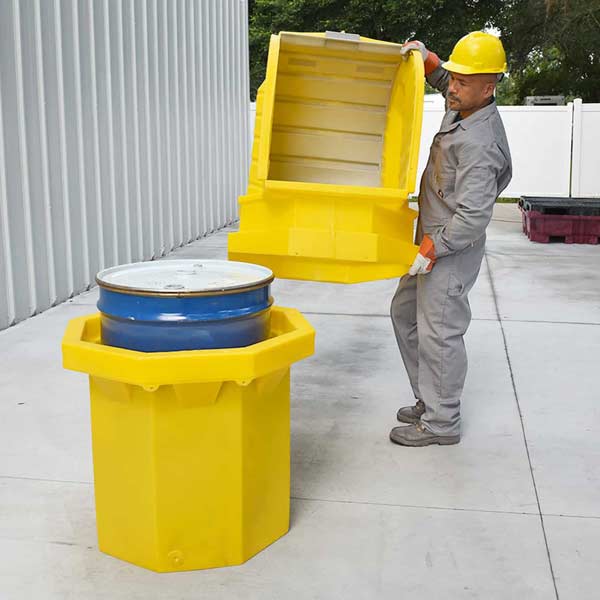

• Containment Capacity: The P1 Plus contains 1 drum, P2 Plus model accommodates one to two drums while the P4 Plus model holds one to four drums. Each unit includes a low-profile containment pallet that positions drum tops at an optimal level for safe pouring or pump operation.

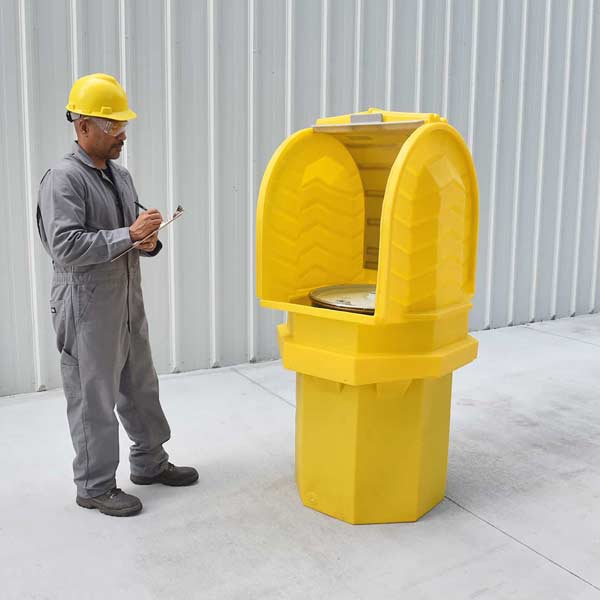

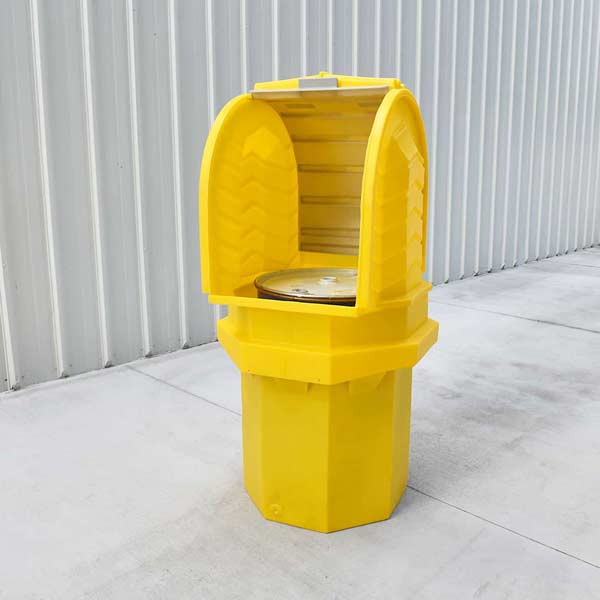

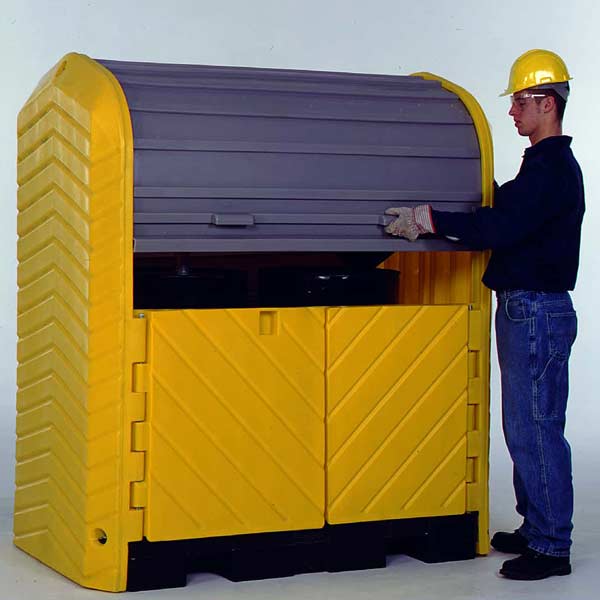

• Ergonomic Access: Roll-top doors provide easy access to the top of the drums and can be lifted from waist height, eliminating the need to bend or reach near the ground. The P2 Plus and the P4 Plus each have swing-out lower doors for inside access for loading and unloading drums with or without the optional ramp.
• Material Construction: Constructed entirely from linear low-density polyethylene LLDPE, the Ultra-Hard Top Spill Pallet Plus is resistant to rust and corrosion. UV inhibitors in the polyethylene resin protect against sunlight degradation, extending the service life of the unit in outdoor environments.

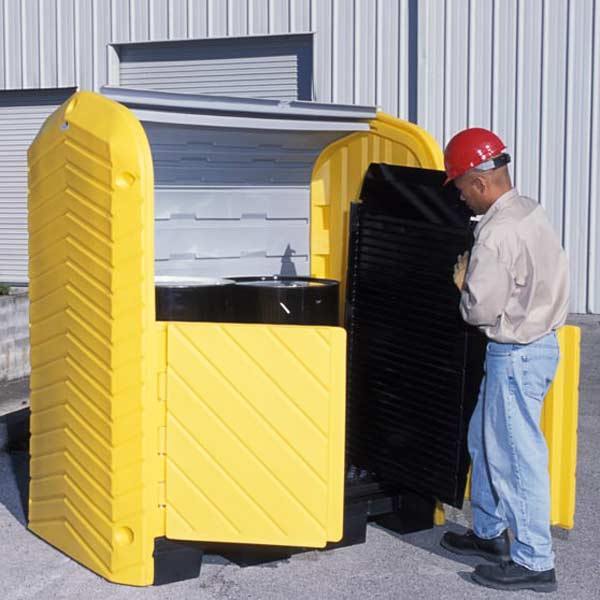

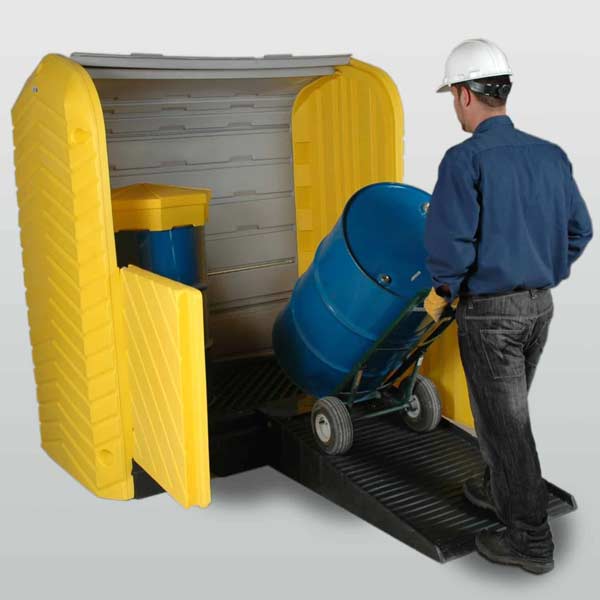

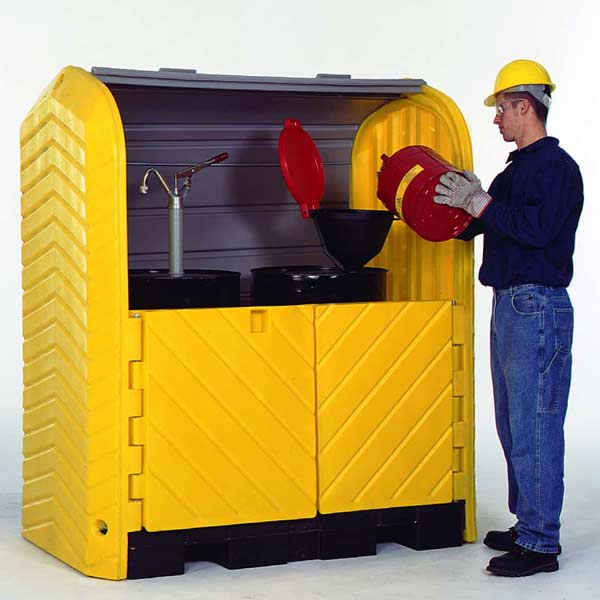

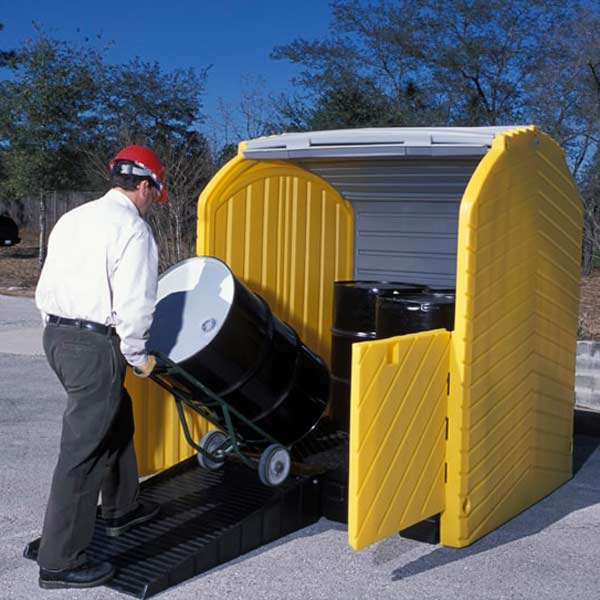

• Drum Handling: The unit can accommodate rotary drum pumps and large funnels due to its tall headspace of 23 3/4 inches. The optional polyethylene ramp provides a non-slip surface for safe drum movement and can be stored inside the unit when not in use. Forklift compatibility allows the unit to be lifted safely even when drums are in place.
• Security and Safety: The roll-top cover and swing-out doors can be locked with a standard padlock to prevent unauthorized access. The containment sump captures leaks or spills, protecting property and the surrounding environment from hazardous materials.
• Flexible Operation: Front doors swing wide to allow access to drums pre-loaded on wooden pallets. The unit is suitable for industrial outdoor storage, chemical handling facilities, and any operation requiring secure and accessible drum containment.

The Ultra-Hard Top Spill Pallet Plus meets regulatory containment standards and provides an efficient, long-lasting solution for managing hazardous drums outdoors while ensuring operator safety, ergonomic handling, and environmental protection. Its combination of durable polyethylene construction, ergonomic access, and secure containment makes it a practical choice for facilities requiring reliable outdoor spill management.

Cross of Life Structural Design
The P2 Plus and the P4 Plus incorporates an innovative “Cross of Life” internal support system, specifically engineered to preserve structural integrity under heavy loads. The molded LLDPE cross connects all four sidewalls, channeling downward forces from the grates toward the center of the pallet. As weight increases on the top surface, the Cross of Life design counteracts lateral sidewall deformation, effectively pulling the walls inward and preventing sagging over time. This design ensures consistent performance, durability, and long-term load-bearing capacity.
