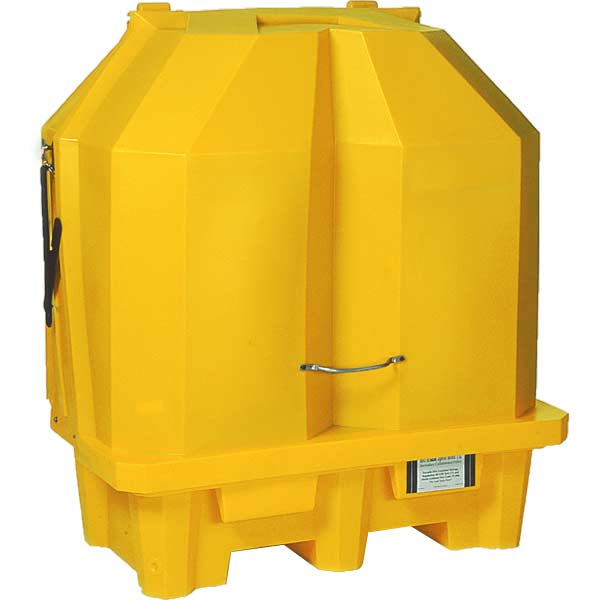

Ultra-Hard Top Spill Pallet Outdoor Secondary Containment System for Drums
The Ultra-Hard Top Spill Pallet is designed to provide reliable outdoor secondary containment for oil drums, supporting safe storage, dispensing, and handling of oil and chemicals and hazardous materials. Engineered for two or four fifty-five gallon drums, this spill pallet combines heavy-duty construction with practical features to ensure regulatory compliance, operational efficiency, and durability in exposed environments. It is particularly suited for outdoor chemical storage, satellite waste collection, and spill response staging areas.
The Ultra-Hard Top Spill Pallet features an all-polyethylene construction that is chemically resistant and UV stabilized to resist degradation from prolonged sunlight exposure. The low-maintenance polyethylene deck and sump provide reliable containment of drips, leaks, and incidental spills. Drums are elevated above the sump area on removable grating, allowing any collected liquids to remain isolated from the stored containers while maintaining easy access for handling and inspection.

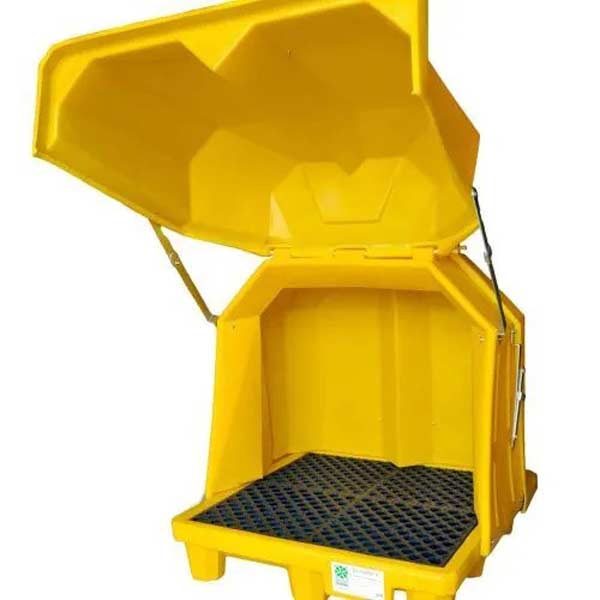

A heavy-duty steel cover lift assembly provides secure protection from environmental elements while allowing convenient access to the drums. The cover can be lifted by a single operator and locked in a fully open position with rugged steel brackets, facilitating safe decanting or dispensing of liquids. This combination of accessibility and containment enhances both operational safety and workflow efficiency.
Ultra-Hard Top Spill Pallet Features
- Designed to contain up to four fifty-five gallon drums
- Meets EPA and SPCC secondary containment requirements
- All-polyethylene construction with UV inhibitor for long-term outdoor durability
- Removable polyethylene deck grates allow easy cleaning and maintenance of sump area
- Heavy-duty steel cover lift assembly can be operated by one person
- Steel brackets allow covers to remain securely open during decanting or drum handling
- Elevated drum positioning keeps containers separated from collected liquids
- Suitable for storage of virgin chemicals, hazardous waste, drum dispensing, and spill response materials
Cross of Life Structural Design
The pallet incorporates an innovative “Cross of Life” internal support system, specifically engineered to preserve structural integrity under heavy loads. The molded LLDPE cross connects all four sidewalls, channeling downward forces from the grates toward the center of the pallet. As weight increases on the top surface, the Cross of Life design counteracts lateral sidewall deformation, effectively pulling the walls inward and preventing sagging over time. This design ensures consistent performance, durability, and long-term load-bearing capacity.
Ultra-Hard Top Spill Pallet Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV1082 | P2 Model Without Drain | 57 x 30.5 x 63.5 | 48 x 24 | 3,000 | 66 | 173 |
| CV1083 | P2 Model With Drain | 57 x 30.5 x 63.5 | 48 x 24 | 3,000 | 66 | 173 |
| CV1080 | P4 Model Without Drain | 57 x 54 x 64.5 | 48 x 48 | 6,000 | 66 | 226 |
| CV1081 | P4 Model With Drain | 57 x 54 x 64.5 | 48 x 48 | 6,000 | 66 | 226 |
Ultra-Hard Top Spill Pallet Accessories
| Part No. | Description | Dimensions (Inches) | Load Capacity (UDL) | Containment Capacity (Gallons) | Weight (Lbs.) |
|---|---|---|---|---|---|
| CV0678 | Ramp | 68.5 × 28.5 × 12 | 700 | — | 73 |

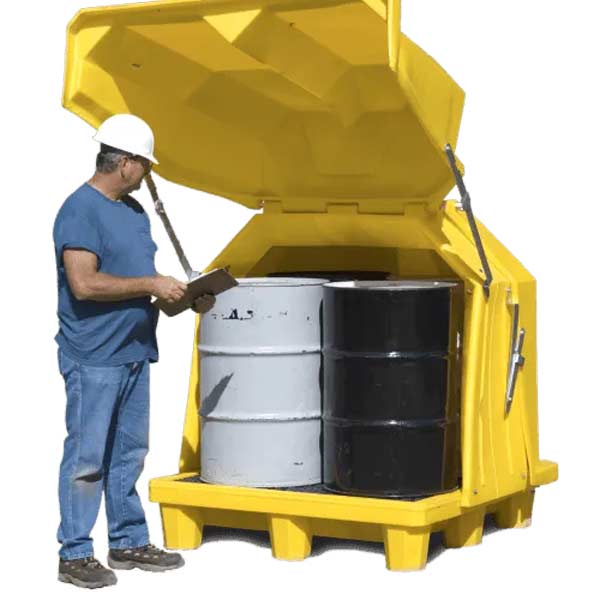

The Ultra-Hard Top Spill Pallet is ideal for industrial facilities requiring an environmentally resistant outdoor drum containment system. Its low-maintenance design reduces cleaning and inspection time, while the heavy-duty cover assembly and elevated deck provide safe and efficient drum handling. The UV-stabilized polyethylene extends service life even under direct sunlight, and the durable steel cover ensures protection from rain, debris, and other outdoor elements.
By combining durability, chemical resistance, and regulatory compliance, the Ultra-Hard Top Spill Pallet delivers a professional-grade containment system for outdoor drum storage, chemical handling, and spill management operations.
