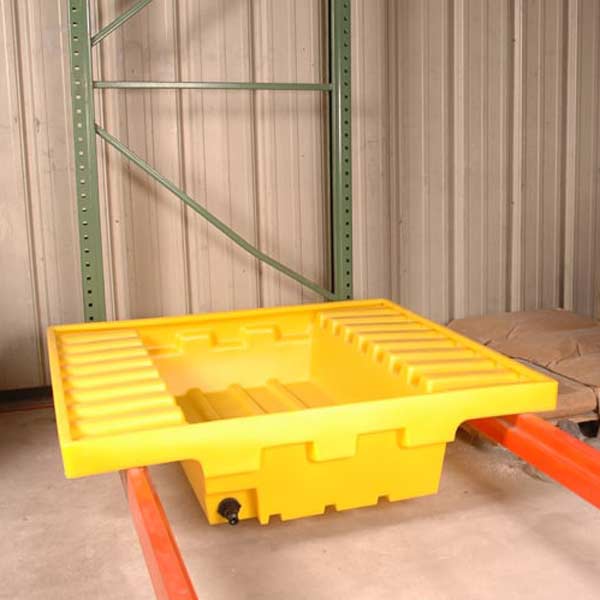

Ultra-Rack Sump Spill Containment System
The Ultra-Rack Sump is a high-capacity polyethylene warehouse rack containment system engineered to manage hazardous liquid spills and protect inventory, equipment, and flooring. Designed for industrial environments where compliance with EPA and SPCC regulations is mandatory, the Ultra-Rack Sump offers a reliable solution for secondary containment of drums stored on pallet racks. This product supports operational safety and efficiency by providing a secure containment method while maintaining accessible storage.

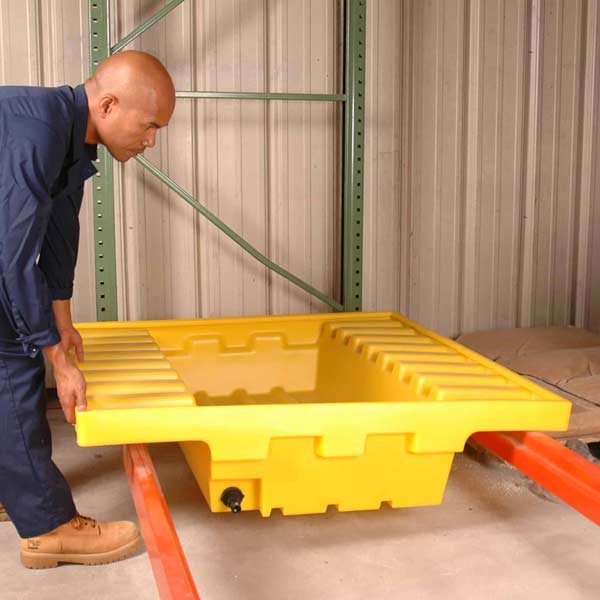

Constructed from all-polyethylene material, the Ultra-Rack Sump offers excellent chemical resistance and durability without the risk of rust or corrosion. Its translucent yellow design enables a quick visual inspection at floor level, allowing warehouse personnel to detect spills or leaks efficiently. The unit accommodates standard 40 x 48 and 48 x 48 wooden pallets, with a low-profile configuration that fits seamlessly into warehouse racking systems, minimizing interference with adjacent storage areas. Direct forklift access to the pallet is maintained, ensuring that the sump remains in position on the rack while pallets are removed.

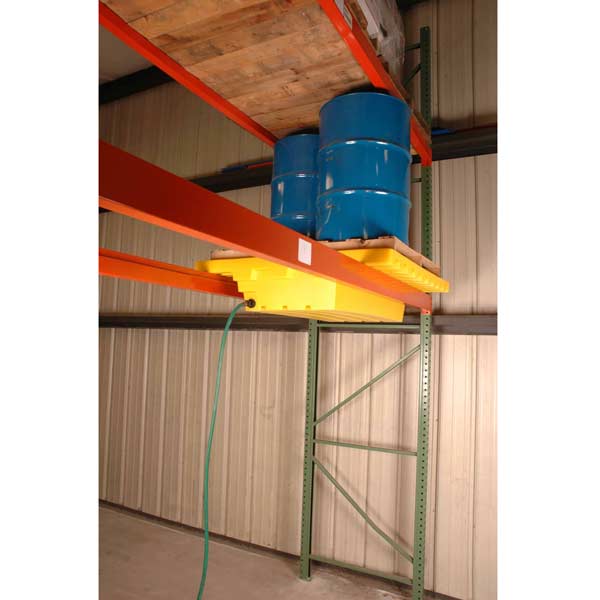

The Ultra-Rack Sump has a containment capacity of 66 gallons and can safely hold up to four 55-gallon drums per standard pallet. An optional drain and ball valve assembly allows for quick removal of collected fluids, and a standard 3/4-inch hose can be attached to drain units that are elevated above floor level. The design is nestable, reducing storage and shipping space requirements when multiple units are not in use.
Ultra-Rack Sump Features
- 66-gallon sump compliant with EPA and SPCC spill containment regulations
- Capable of holding up to four 55-gallon drums on a standard pallet
- Low-profile design for efficient use of warehouse racking space
- All-polyethylene construction provides superior chemical resistance and prevents corrosion
- Translucent yellow material allows rapid visual inspection of leaks and spills
- Compatible with standard 40 x 48 and 48 x 48 wooden pallets

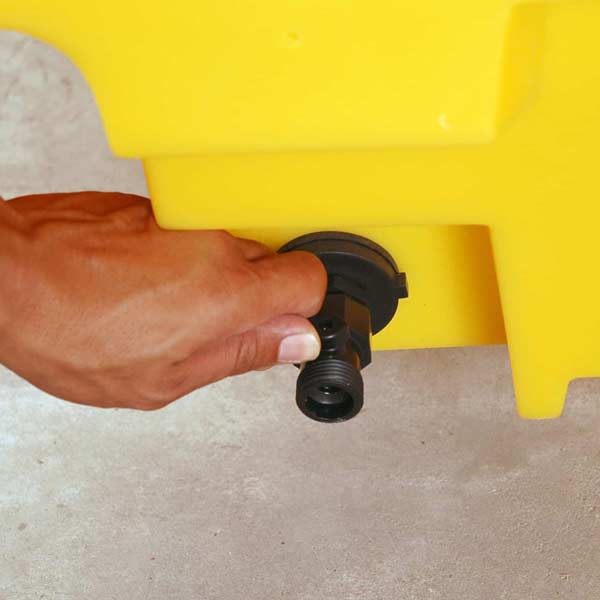

- Optional drain/ball valve facilitates fast removal of fluids and supports elevated sump configurations
The Ultra-Rack Sump is ideal for industrial facilities, warehouses, and manufacturing environments where safety, regulatory compliance, and operational efficiency are priorities. Its combination of high-capacity containment, chemical resistance, and accessibility ensures that hazardous material management is integrated seamlessly into palletized storage workflows.
Ultra-Rack Sump Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| CV2395 | Without Drain | 51.5 x 51.5 x 12 | 49 x 49 | 66 | 66 | 50 |
| CV2396 | With Drain | 51.5 x 51.5 x 12 | 49 x 49 | 66 | 66 | 50 |
Ultra-Rack Sump Accessories
| Part No. | Description | Dimensions (In.) | Weight (Lbs.) |
|---|---|---|---|

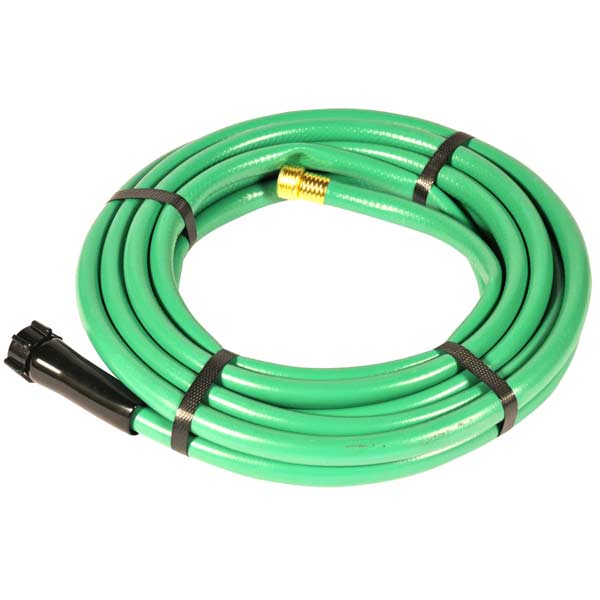

| CV1782 | Drainage Hose | 25 L | 3 |

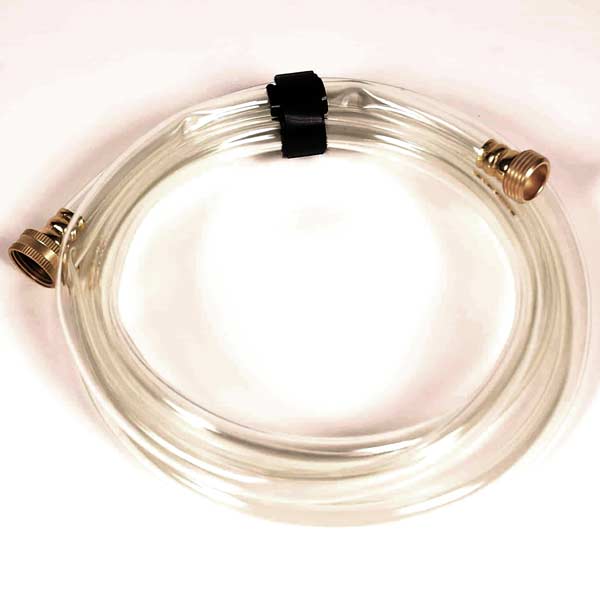

| CV1792 | Clear Hose Attachment | 25 L | 2 |
