Ultra-Rack Containment Tray
The Ultra-Rack Containment Tray provides an effective solution for capturing leaks and spills beneath pallet racking and industrial shelving. Designed for use in environments where fluids or other potentially hazardous materials are stored on racks, these trays help maintain safe and clean workspaces by preventing spills from reaching the floor.
Low-profile trays measure 2 3/4 inches in height, allowing them to easily slide under standard pallet racking. They are available in single, double, and triple tray configurations to accommodate various rack widths, and additional trays or connectors can be used to create larger containment systems as required. The black, all-polyethylene construction offers excellent chemical resistance and ensures long-term durability without corrosion.
Features
- Low-profile trays slide effortlessly under industrial racking
- Capture small leaks and drips to maintain a clean floor
- Polyethylene construction provides superior chemical compatibility
- Multiple tray systems available to fit different rack widths
- Optional connectors allow expansion for larger configurations
These trays are ideal for industrial facilities, warehouses, and chemical storage areas. The modular design provides flexibility in layout and allows for easy adjustments to accommodate changes in rack configuration. Installation is simple and requires minimal tools, making it possible to deploy the containment system quickly and efficiently.
Maintenance is straightforward; the smooth polyethylene surface allows for easy cleaning and inspection. By capturing spills at the source, the Ultra-Rack Containment Tray helps reduce slip hazards and protects the underlying flooring and environment from contamination.
Specifications
| Part No. | Description | Dimensions (In.) | Containment Capacity(Gal.) | Weight (Lbs.) |
|---|---|---|---|---|

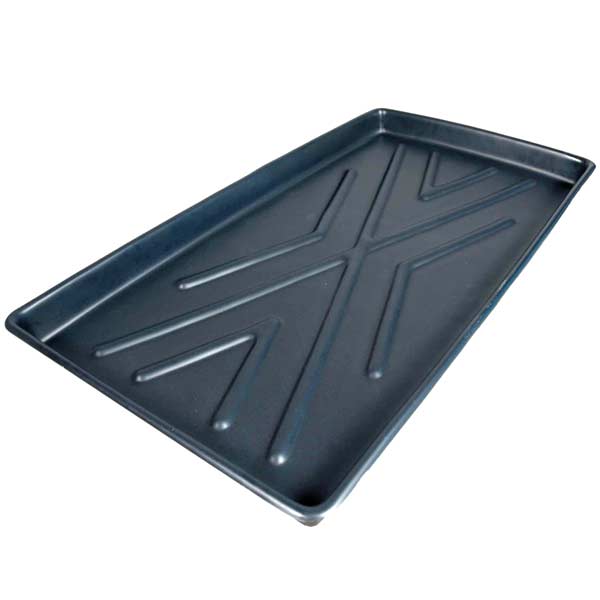

| CV2370 | Single Tray System | 44 x 23.5 x 2.8 | 8 | 6.5 |

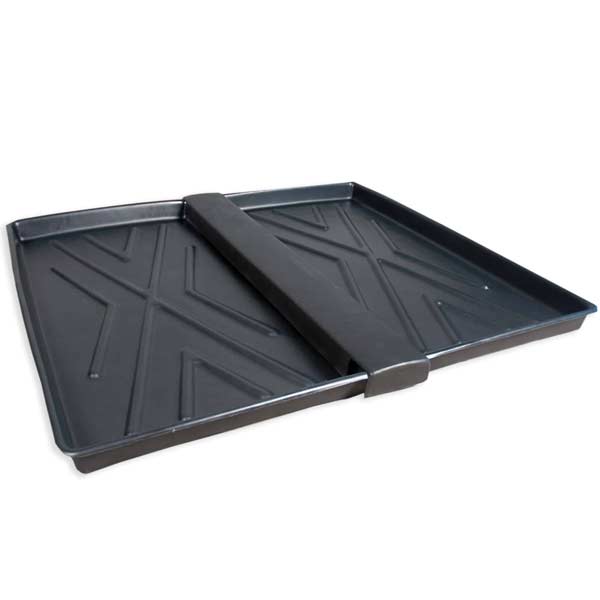

| CV2371 | Two Tray System | 48 x 44 x 2.8 | 16 | 17 |
| CV2372 | Three Tray System | 72 x 44 x 2.8 | 24 | 27 |
Accessories
| Part No. | Description | Dimensions (In.) | Weight (Lbs.) |
|---|---|---|---|

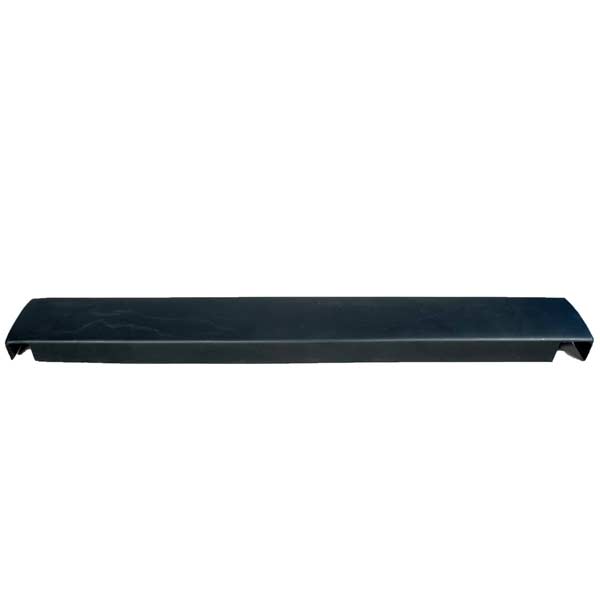

| CV2373 | Connector | 45 x 6 x 8 | 4 |
