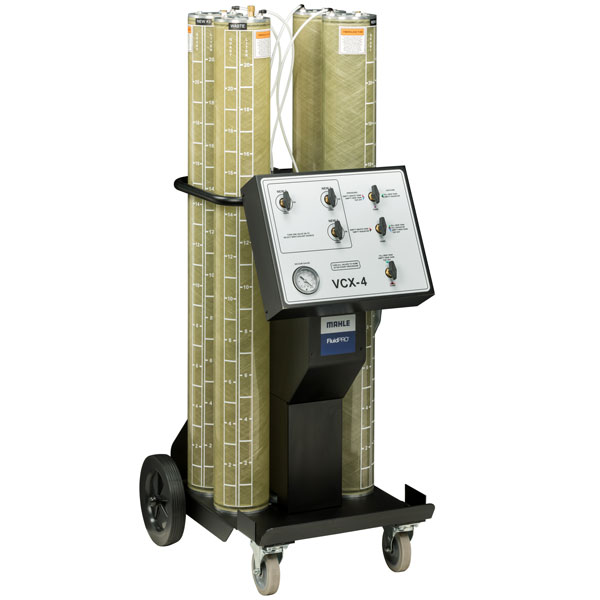

The FluidPRO Vacuum Coolant Exchangers, offered by Fluidall, provide shops with an efficient and visually clear solution for maintaining vehicle coolant systems.
Large-capacity cylinders make coolant selection and changeover simple, accommodating a wide range of vehicles. The 4 Tube Design model features a Venturi vacuum generator for fast service times of 5–15 minutes, boosting customer satisfaction. Transparent cylinders allow technicians and customers to see precipitates and corrosion products, emphasizing the importance of clean coolant maintenance. Available in two configurations, the 2 Tube Design offers one new and one waste cylinder, while the 4 Tube Design includes three new cylinders and one waste cylinder for higher-demand applications.
Vacuum Coolant Exchangers Part Numbers
- MFP4708001900: Two cylinders, one waste, one new.
- Dimension: 63 in x 28 in x 22.5 in
- Weight: 166 lbs
- MFP4708002000: Four cylinders, one waste, three new.
- Dimensions: 63 in x 28 in x 29 in.
- Weight: 200 lbs
Vacuum Coolant Exchangers Features
- Effective. Four transparent, large-capacity cylinders; three for new coolant and one for waste.
- Color-Coded Function Valve. For easy control and operation.
- Adaptable. Easy coolant selection and changeover for most vehicles.
- Fast. Service cycles of 5-15 minutes for increased productivity.
- Vacuum Gauge. Ensures complete exchange efficiency.
- Pressure Relief Valve. Located on waste fluid cylinder for increased safety.
- No-Leak End Cap Design. Reduces coolant waste.
- Convenient. Powered by shop air.
Vacuum Coolant Exchanger Specifications
- Adapters: 2 cone plugs; 8 in (20 cm) hose adapter.
- Controls: Ball valves with color-match system.
- Coolant Cylinders: 20 quart (18.9 liter) each.
- Fluid Tanks / Types: Any coolant type for fast, easy changeover.
- Hoses: Clear, wire reinforced, 10 ft. (3 m).
- New Fluid Pump: Venturi vacuum generator; 28 inHg (0.95 bar) maximum.
- Power Source: Shop air, 55 to 110 psi (3.8 to 7.6 bar).
- Process Time: 5 to 15 minutes average.
- Warranty: 1 Year – parts & labor.
