Safely refuel equipment, machinery, or vehicles with a DOT Approved Aluminum Refueling Tank
These Refueling Tanks are certified to handle gasoline, diesel, methanol, aviation fuel, and kerosene, up to 110 gallons. Unlike standard transfer tanks designed for non-flammable liquids, these Refueling Tanks are built and approved for flammable fuels, meeting strict federal safety standards for private, commercial, and state use.
Refuel Smarter, Safer, Faster
- DOT Approved: Every tank meets rigorous federal design, material, and construction requirements.
- Safe for flammables: Designed for gasoline, diesel, methanol, aviation fuel, and kerosene.
- Pump-ready & legal: Dispense fuel on the spot while the tank stays in your vehicle.
- Capacities range from 36 to 110 gallons.
- Optional Refueling Transfer Pumps
Refueling Tanks, L Shaped
Built for smart, efficient fuel storage without sacrificing bed space, and designed to pair perfectly with crossover or chest-style toolboxes, the lower L fuel tank section fits neatly beneath most standard boxes. Each tank includes dual 2″ bungs for flexible pump and fill cap placement and can be installed in reverse for easy removal without disturbing your toolbox. It’s a rugged, space-saving solution for fleets, contractors, and service pros.
Refueling Tanks, L Shaped
| 47 Gallon L Shaped Refueling Tank |
| Part No. ATITTL50 |

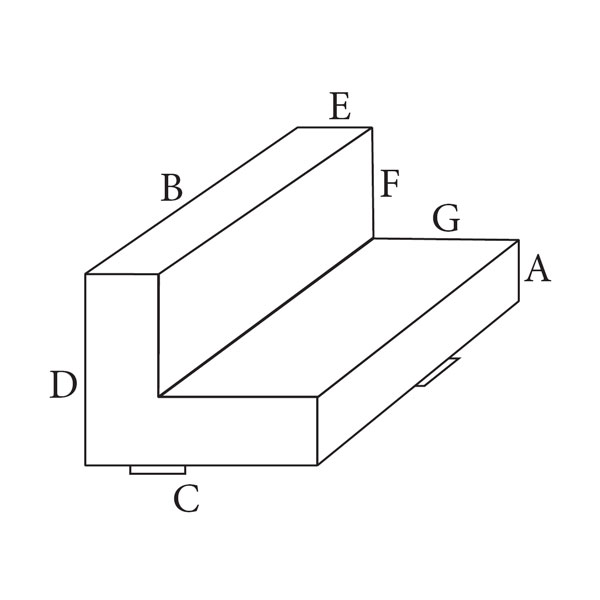

Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 9"
- B = 36 1/4"
- C = 28"
- D = 18"
- E = 9"
- F = 9"
- G = 19"
|
| 80 Gallon L Shaped Refueling Tank |
| Part No. ATITTL80 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 9 1/2"
- B = 48 1/2"
- C = 28"
- D = 26"
- E = 8"
- F = 16 1/2"
- G = 20"
|

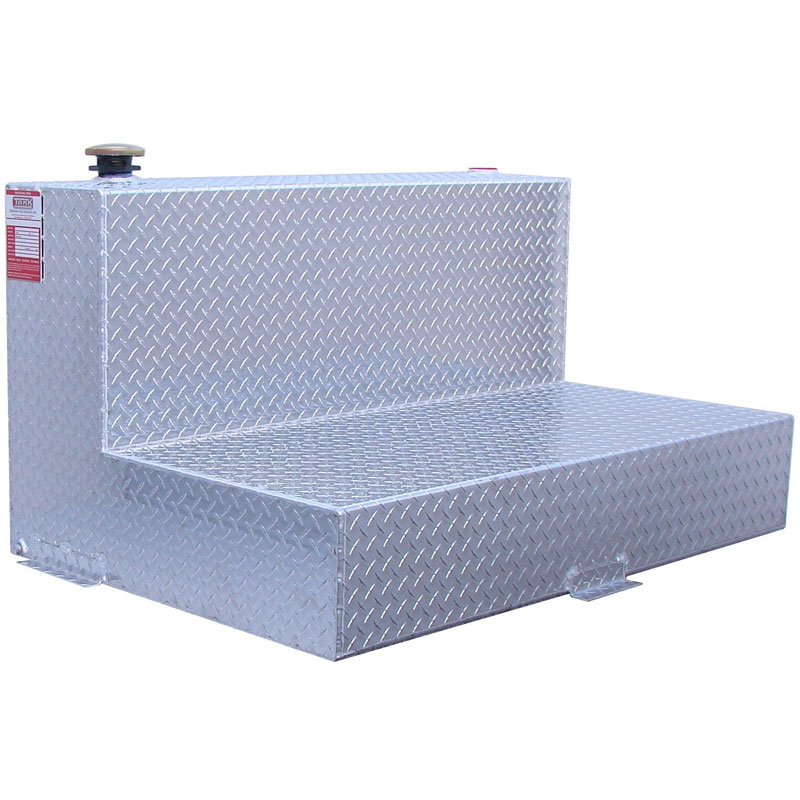

| 95 Gallon L Shaped Refueling Tank |
| Part No. ATITTL95 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 9"
- B = 48 1/2"
- C = 33"
- D = 26"
- E = 11"
- F = 17"
- G = 22"
|
| 100 Gallon L Shaped Refueling Tank |
| Part No. ATITTL10095 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 9"
- B = 60"
- C = 31"
- D = 24"
- E = 9"
- F = 15"
- G = 22"
|
Refueling Tanks, Rectangle
Rectangle Refueling Transfer Tanks are the most popular choice for reliable, versatile fuel storage and transfer. Available in capacities from 38 to 110 gallons, each Rectangle Refueling Tank includes dual 2″ bungs so you can place the fuel fill cap and optional transfer pump on the side that works best for your setup. Its straightforward, space-efficient design delivers safe, convenient, and dependable fuel transport for any job or field operation.
Refueling Tanks, Rectangle

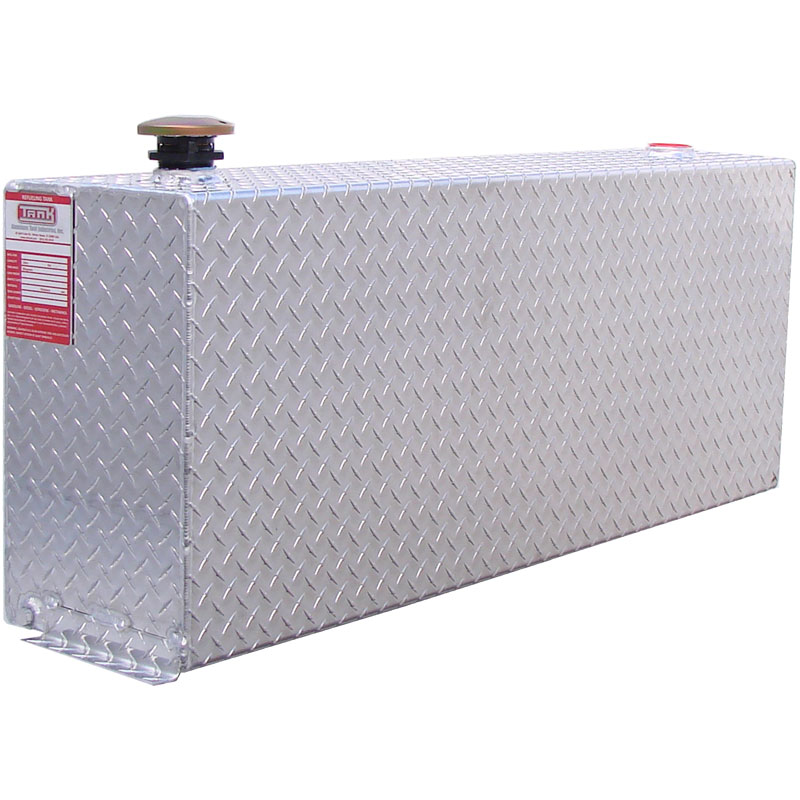

| 38 Gallon Rectangle Refueling Tank |
| Part No. ATITTR38 |

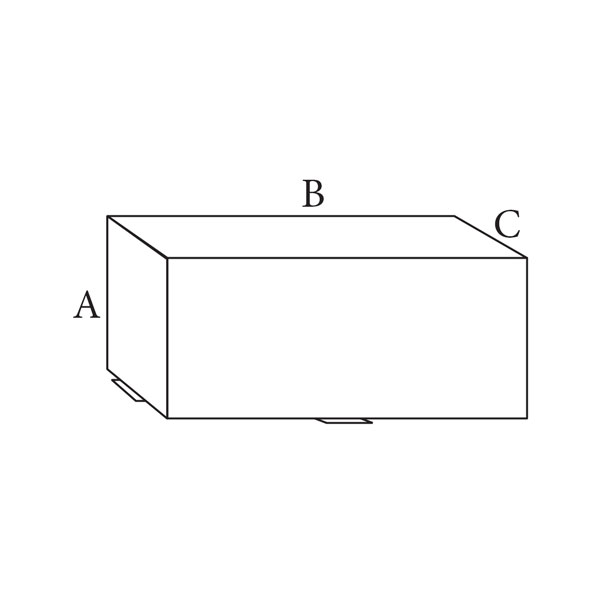

Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 19"
- B = 48 1/2"
- C = 11"
|

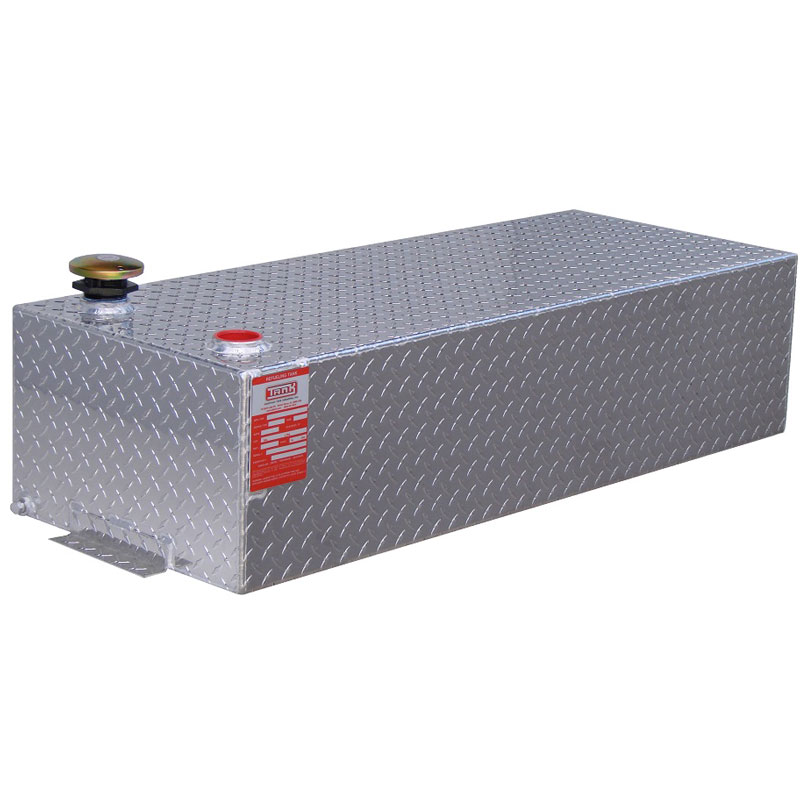

| 42 Gallon Rectangle Refueling Tank |
| Part No. ATITTR42 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 12"
- B = 48 1/2"
- C = 19"
|

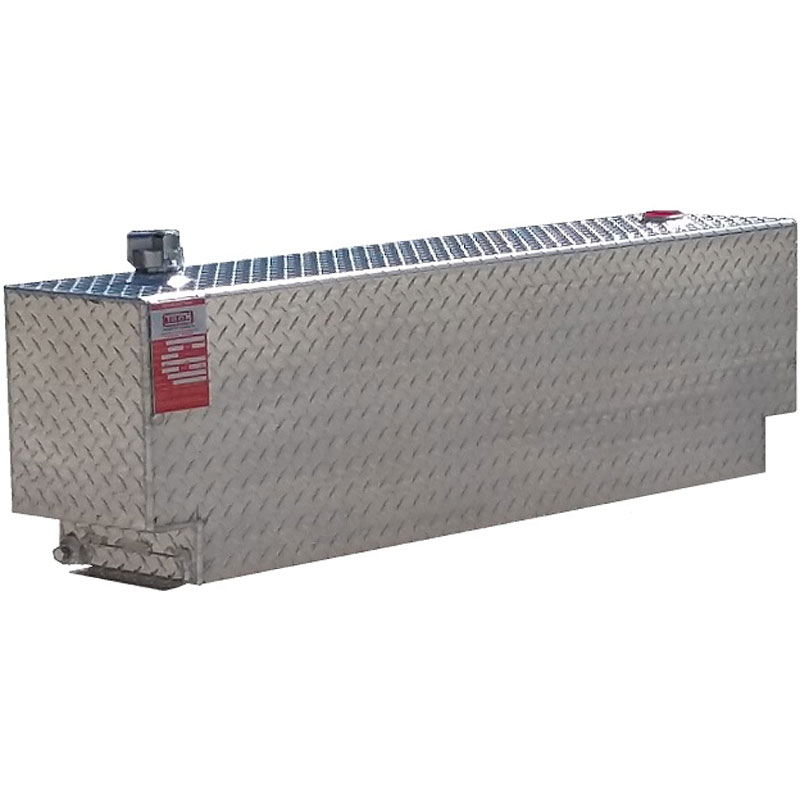

| 43 Gallon Rectangle Refueling Tank |
| Part No. ATITTR43 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) This 43 gallon rectangular refueling tank is notched on the bottom sides. The tank measures 51 inches across the bottom, 54 inches including the bottom tabs. |
|
|
- A = 16 1/2"
- B = 58"
- C = 12"
|

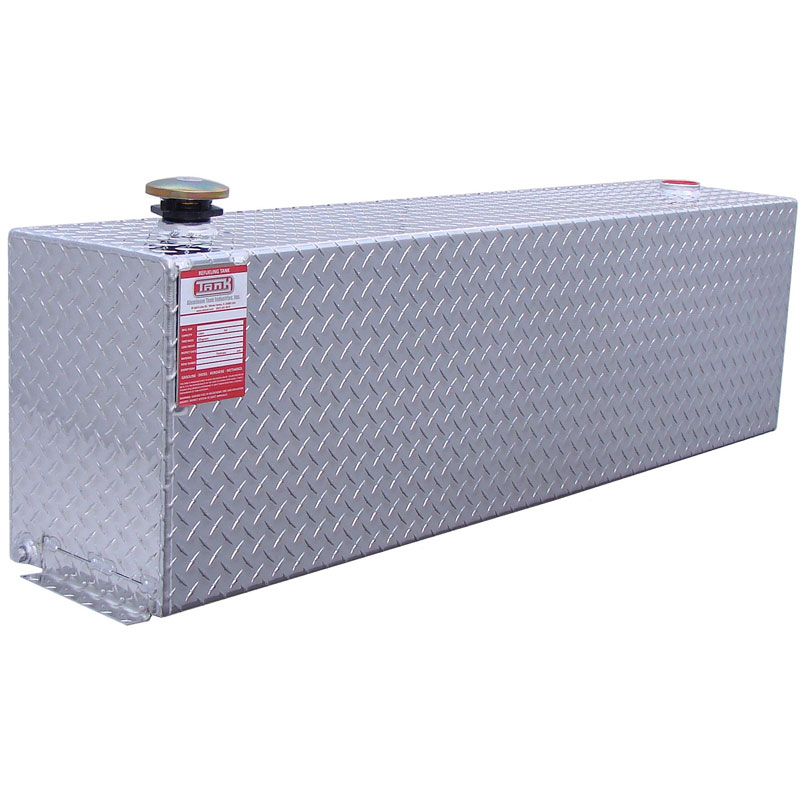

| 46 Gallon Rectangle Refueling Tank |
| Part No. ATITTR46 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 16 1/2"
- B = 57"
- C = 12"
|

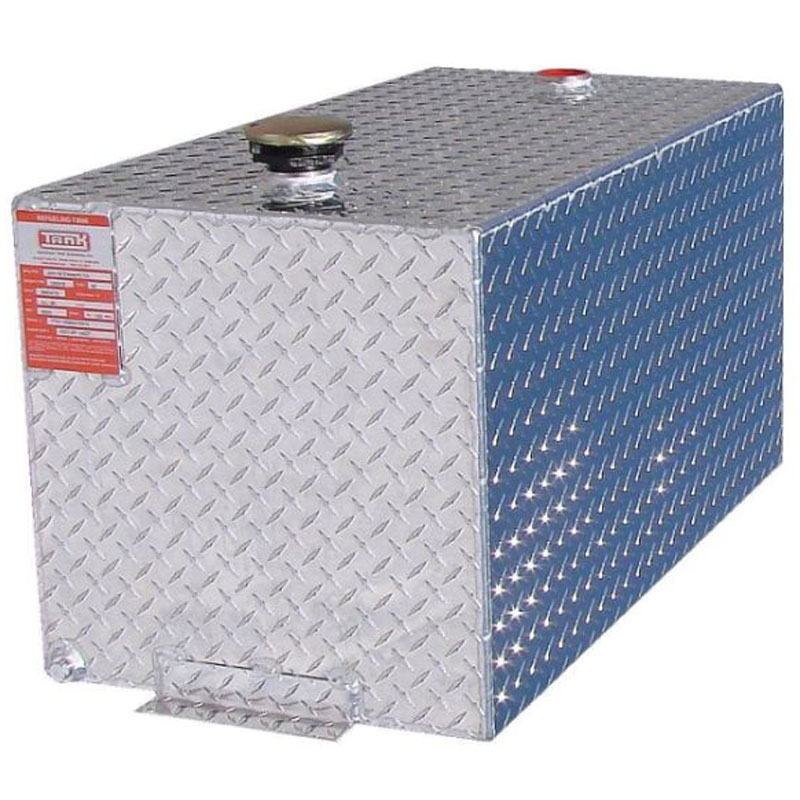

| 50 Gallon Rectangle Refueling Tank |
| Part No. ATITTR50 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 18 1/4"
- B = 36 1/4"
- C = 19 1/4"
|

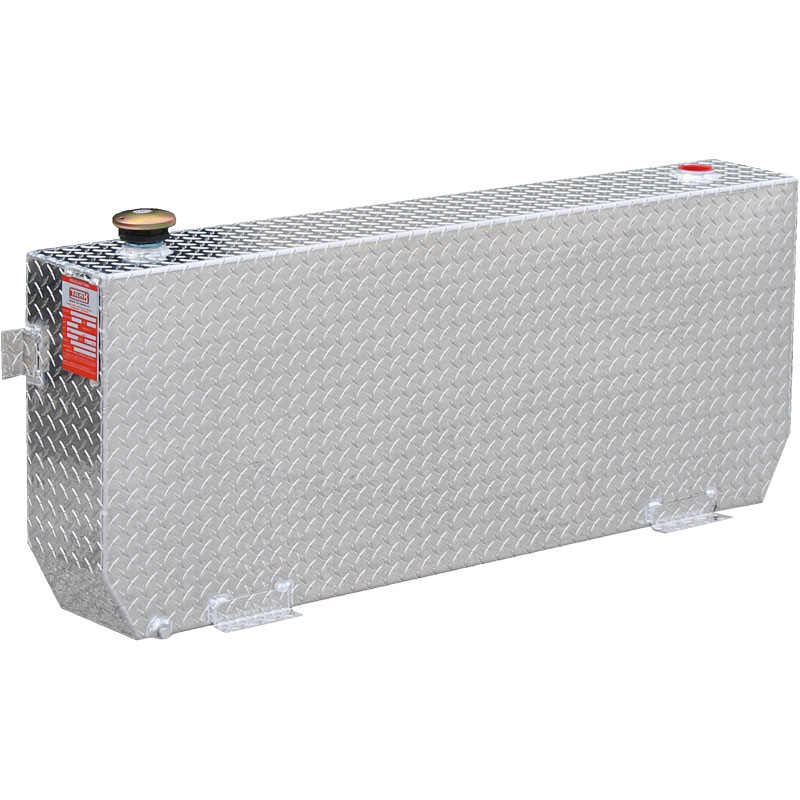

| 51 Gallon Rectangle Refueling Tank |
| Part No. ATITTR51 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) The sides of the 51 gallon tank taper in at the bottom. The bottom of the tank measures 55″. |
|
|
- A = 23 1/2"
- B = 60"
- C = 9"
|
| 55 Gallon Rectangle Refueling Tank |
| Part No. ATITTR55 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 23 1/2"
- B = 24 1/4"
- C = 24"
|
| 58 Gallon Rectangle Refueling Tank |
| Part No. ATITTR58 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) This 58 gallon rectangular refueling tank is notched on the bottom sides. The tank measures 51 inches across the bottom, 54 inches including the bottom tabs. |
|
|
|

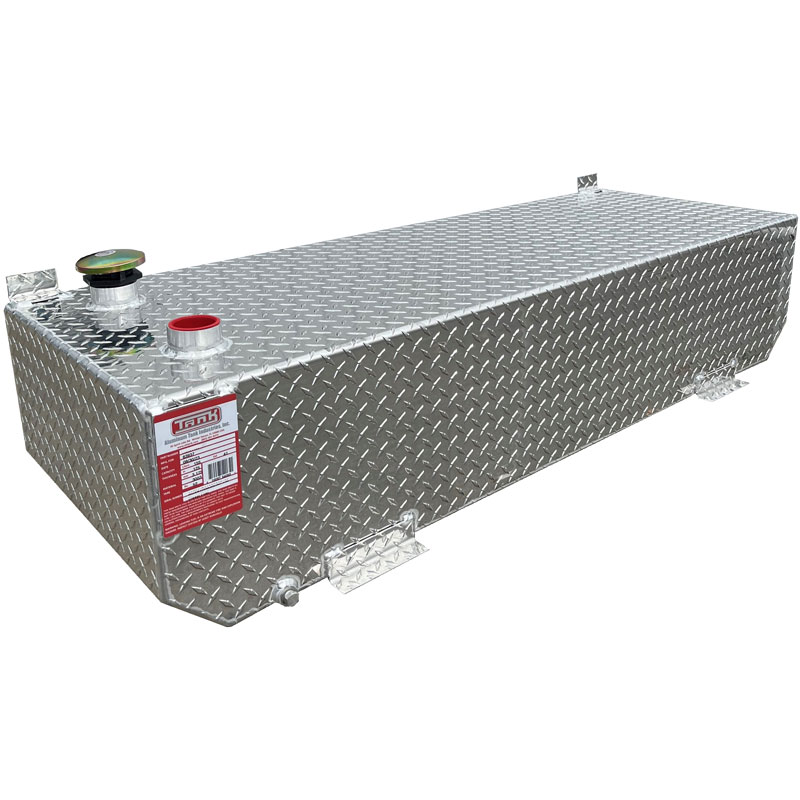

| 62 Gallon Rectangle Refueling Tank |
| Part No. ATITTR65 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) This 62 gallon rectangular refueling tank is angled across the bottom. The tank measures 54 inches across the bottom. |
|
|
|
| 77 Gallon Rectangle Refueling Tank |
| Part No. ATITTR77 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
|

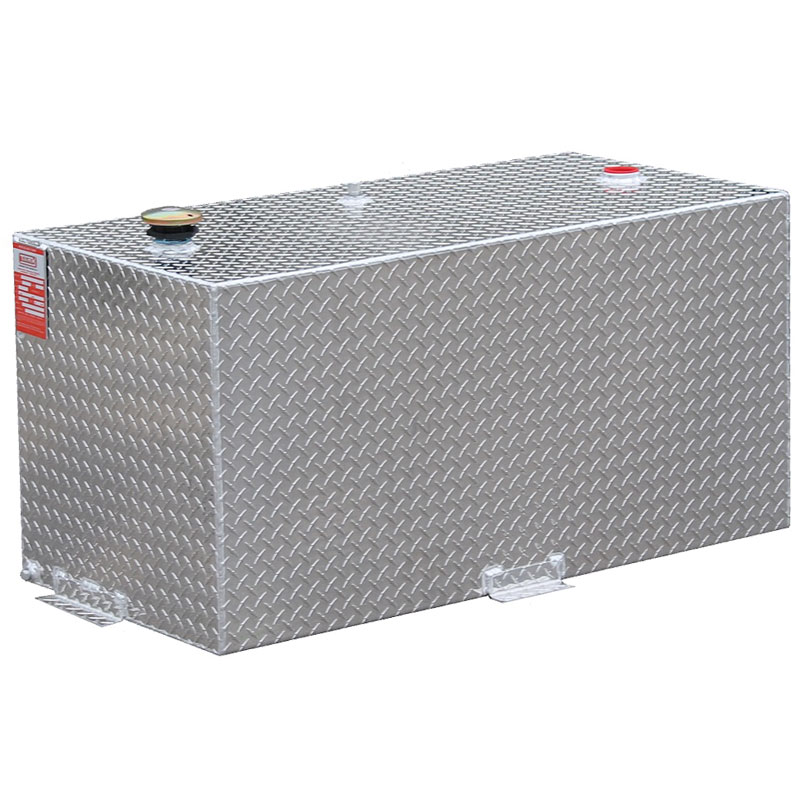

| 110 Gallon Rectangle Refueling Tank |
| Part No. ATITTR110 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 23 1/2"
- B = 48 1/2"
- C = 24"
|
Refueling Tanks, Wedge
The Wedge-Style Refueling Tank is built for professionals who need rugged, reliable fuel storage on the go. Crafted from heavy-duty diamond plate aluminum and DOT-approved for safe, legal fuel transport, this 60-gallon tank fits flatbeds and 5th wheel pickups with a smart 45° rear slope for better visibility and clearance. Dual 2″ NPT bungs let you configure your fill cap and pump on either side, making fueling fast and flexible.
Refueling Tank, Wedge
| 60 Gallon Wedge Refueling Tank |
| Part No. ATITTW60 |

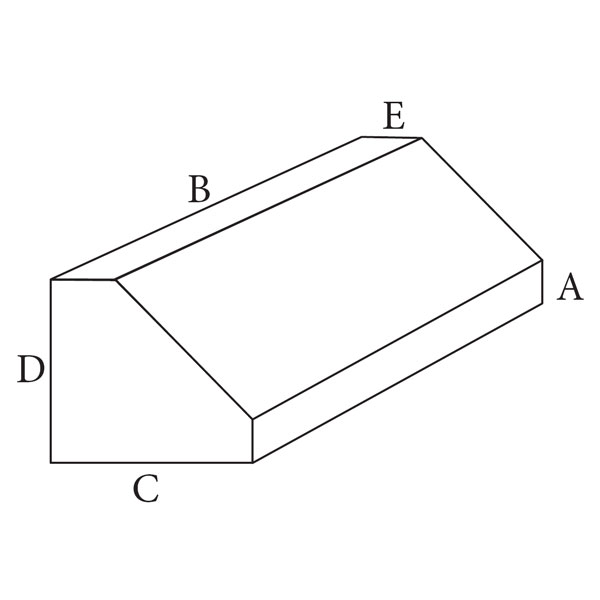

Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 4"
- B = 56"
- C = 20"
- D = 18"
- E = 6"
|
Refueling Tanks, Double Wall Rectangle
Available in 98 and 110 gallon capacities, Double Wall Refueling Tanks provide extra protection against leaks and spills while maximizing capacity in a compact, rectangle design. Each tank includes dual 2″ NPT bungs for flexible placement of the fuel fill cap and transfer pump. Constructed from rugged, fully welded diamond plate aluminum, Double Wall Tanks deliver dependable performance in trucks, trailers, or stationary setups, trusted by farmers, contractors, municipalities, and service professionals who demand equipment that lasts.
Refueling Tank, Double Wall Rectangle
| 98 Gallon Double Wall Rectangle Refueling Tank |
| Part No. ATITTR98DW |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
|

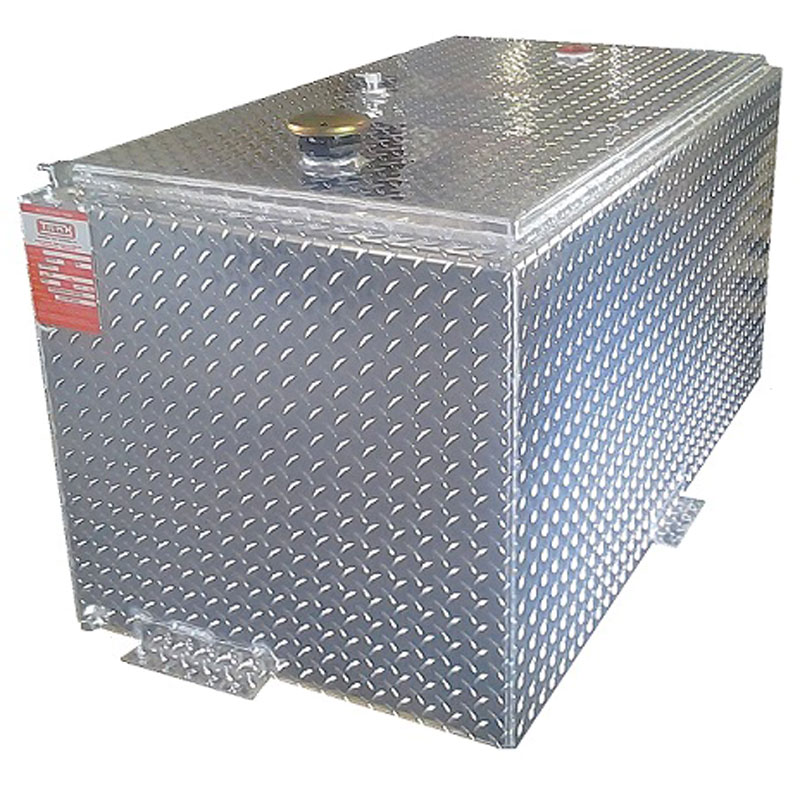

| 110 Gallon Double Wall Rectangle Refueling Tank |
| Part No. ATITTR110DW |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
|
Refueling Tanks, Split Tanks
Split Refueling Tanks are designed for professionals who need to transport and dispense two fuels safely and efficiently. Available in L-Shape sizes of 85 and 95 gallons and Rectangle sizes of 72 and 110 gallons, each tank divides its total capacity into two separate compartments to prevent cross-contamination. Constructed from rugged, fully welded diamond plate aluminum with dual 2″ NPT bungs to position the fuel fill cap and transfer pump on the side that works best for your setup.
Refueling Tank, Split Tanks
Split Refueling Tanks allow users to transport and refuel two separate fluids safely and legally. Ideal for gasoline, diesel, methanol, kerosene, aviation fuel, and more, these tanks allow you to carry two different fuels in one tank system without risk of cross-contamination.

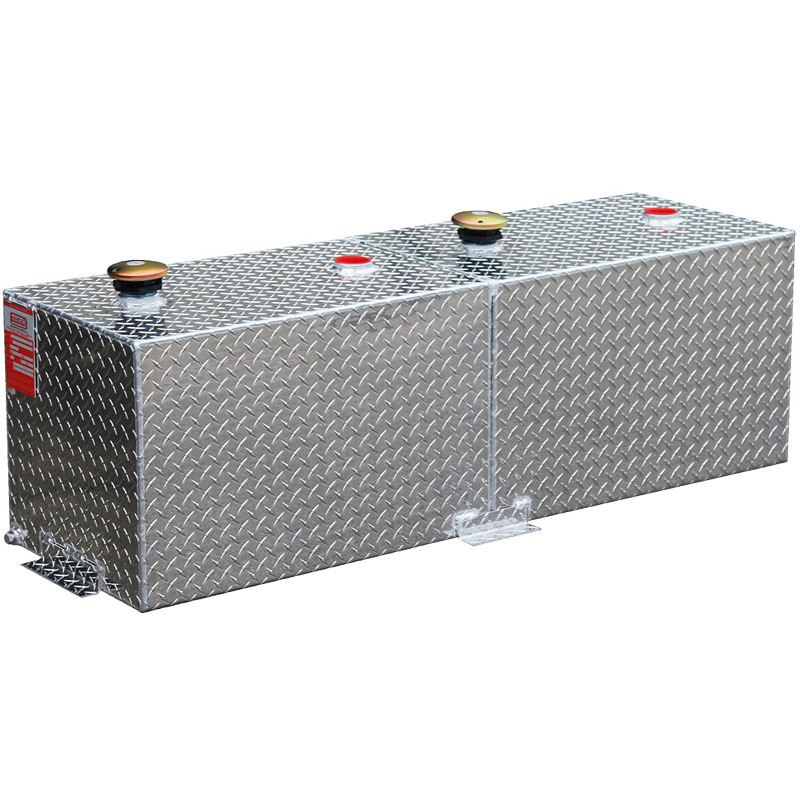

| 72 Gallon Split Rectangle Refueling Tank (36 Gallon/36 Gallon) |
| Part No. ATITTR72S |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
|

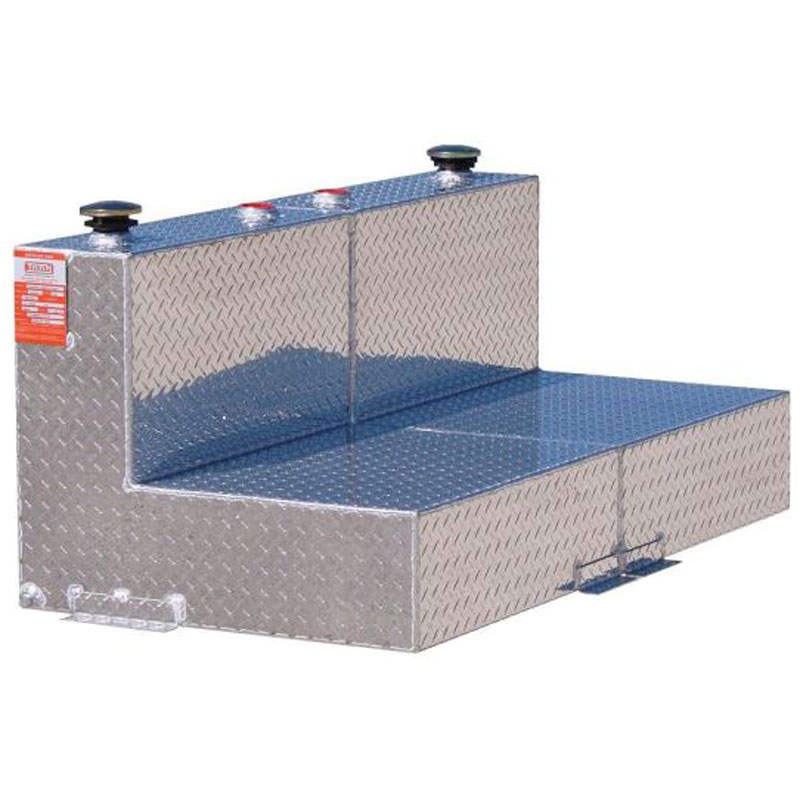

| 85 Gallon Split L Shaped Refueling Tank (42 Gallon/42 Gallon) |
| Part No. ATITTL85S |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 9"
- B = 57"
- C = 30"
- D = 24"
- E = 9"
- F = 15"
- G = 21"
|
| 95 Gallon Split L Shaped Refueling Tank (47 Gallon/47 Gallon) |
| Part No. ATITTL95S |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 9"
- B = 48 1/2"
- C = 33"
- D = 26"
- E = 11"
- F = 17"
- G = 22"
|
| 110 Gallon Split Rectangle Refueling Tank (55 Gallon/55 Gallon) |
| Part No. ATITTR110S |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height.) |
|
|
- A = 23 1/2"
- B = 48 1/2"
- C = 24"
|
Refueling Tanks and Toolbox Combos
Refueling Tank and Toolbox Combos provide a secure, all-in-one solution for fuel storage and tool organization. Built from rugged diamond plate aluminum, each combo features polished stainless locking handles, gas shocks for smooth lid operation, a reinforced three-layer lid, full aluminum piano hinge, and an aero-beveled design for strength and style. These combos deliver durable, reliable performance in demanding industrial and commercial applications.
Refueling Tank and Toolbox Combos

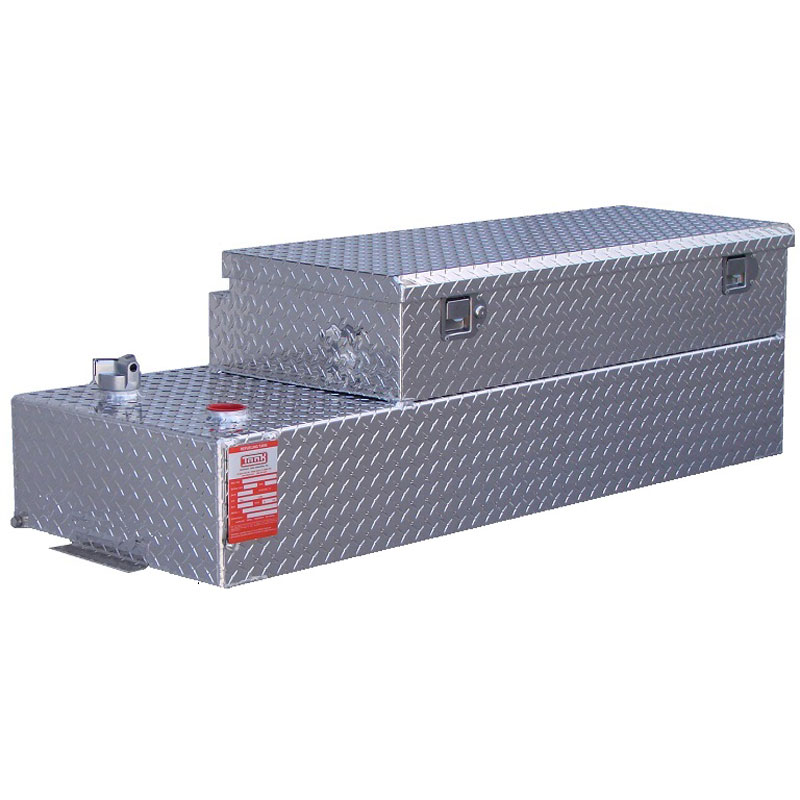

| 42 Gallon Rectangle Refueling Tank and Toolbox Combo |
| Part No. ATITTR42CB |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 21"
- B = 48 1/2"
- C = 19"
- Toolbox is 36" x 19" x 9"
|
| 47 Gallon Refueling Tank and Toolbox Combo |
| Part No. ATITTL50CB |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 18"
- B = 36 1/4"
- C = 29"
- Toolbox is 36" x 19" x 9"
|
| 58 Gallon Rectangle Refueling Tank and Toolbox Combo |
| Part No. ATITTR58CB9 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 21"
- B = 58"
- C = 21"
- Toolbox is 42" x 19" x 9"
|

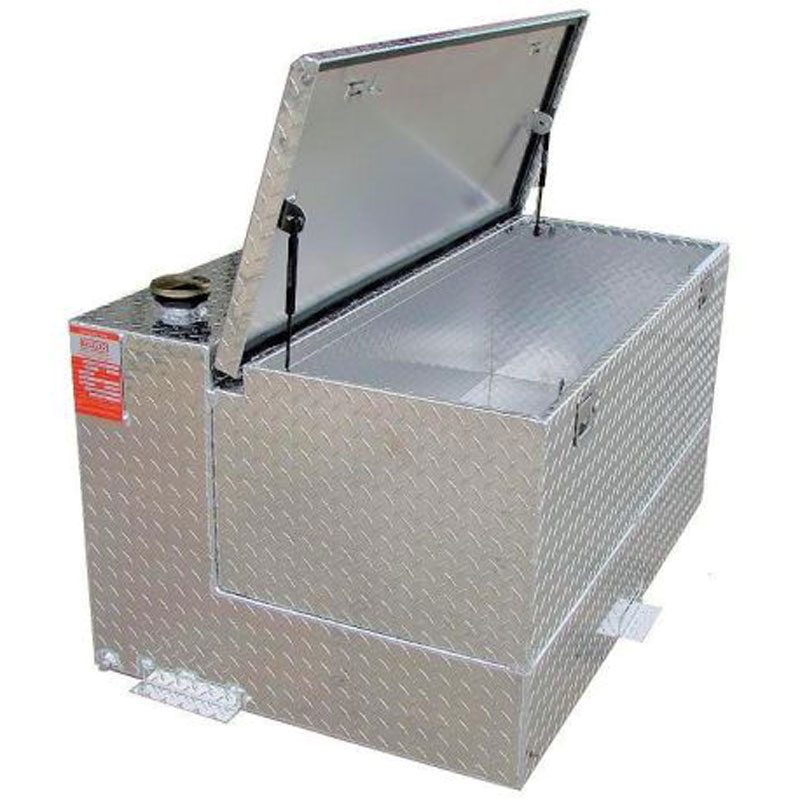

| 95 Gallon Refueling Tank and Toolbox Combo |
| Part No. ATITTL95CB |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 26"
- B = 48 1/2"
- C = 33"
- Toolbox is 48" x 22" x 17"
|
Severe Series Refueling Tanks
Severe Series Refueling Tanks are built for extreme conditions and heavy-duty use. Made from 50% thicker .190″ aluminum with internal pump bung support, they handle larger pumps and off-road work with ease. Each tank includes a lockable Spin Secure Cap, welded baffles, rollover-protected vent, and dual 2″ bungs for flexible pump placement. DOT-approved for transport with the pump attached, these tanks safely store gasoline, diesel, kerosene, aviation fuel, and methanol while delivering unmatched durability and reliability.
Severe Series Refueling Tanks
.190" HD Aluminum Tank
| 95 Gallon L Shaped Refueling Tank, Severe Series |
| Part No. ATISSL95 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 9"
- B = 48 1/2"
- C = 33"
- D = 26"
- E = 11"
- F = 17"
- G = 22"
- .190" HD Aluminum Tank
|
| 95 Gallon Severe Series Refueling Tank and Toolbox Combo, Severe Series |
| Part No. ATISSL95CB |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 26"
- B = 48 1/2"
- C = 33"
- Toolbox measures 48" x 22" x 17"
- .190" HD Aluminum Tank and .063 HD Toolbox
|
| 110 Gallon Rectangle Refueling Tank, Severe Series |
| Part No. ATISSR110 |
Dimensions (Note: Mounting Tabs Extend out 1-1/2". Add 2 1/2" for Cap Height. |
|
|
- A = 24"
- B = 48 1/2"
- C = 24"
- .190" HD Aluminum Tank
|
Refueling Tank Transfer Pumps (Optional)
Refueling Transfer Pumps make fueling fast and reliable. From 8 to 20 GPM 12V models and the Dual-Flo hand pump, each rugged, self-priming unit handles diesel, gasoline, kerosene, and blends with automatic or manual nozzles for dependable, low-maintenance performance. These pumps deliver dependable, low-maintenance performance for fleets, farms, and service professionals on the go.
Refueling Transfer Pumps
| Photo |
Part No. |
Product Name |
|

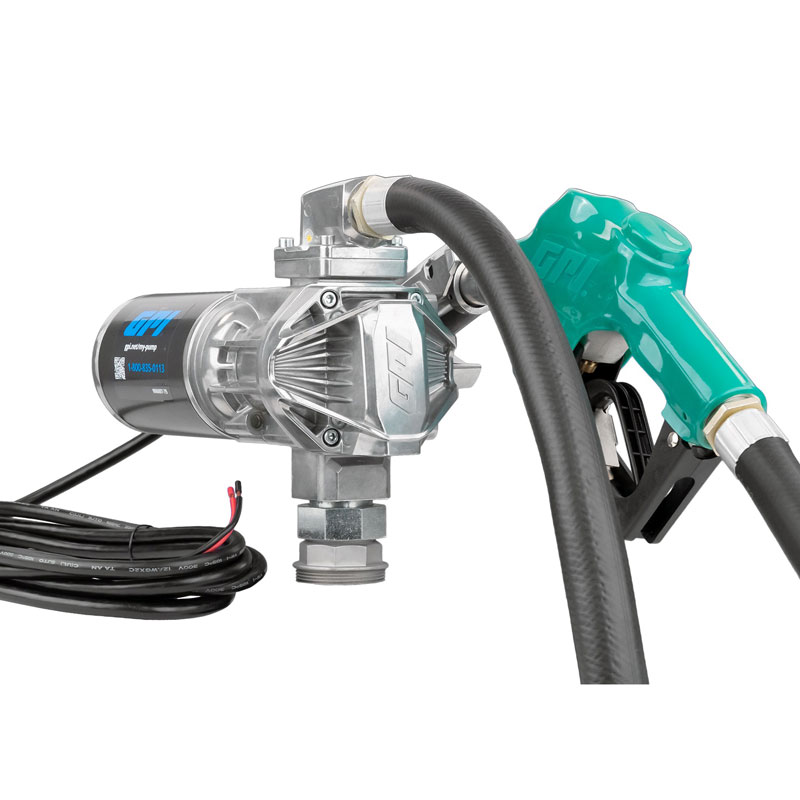

ATIBSG20012AD |
12V 20GPM Fuel Transfer Pump with Automatic Shut-Off Diesel Nozzle |
|

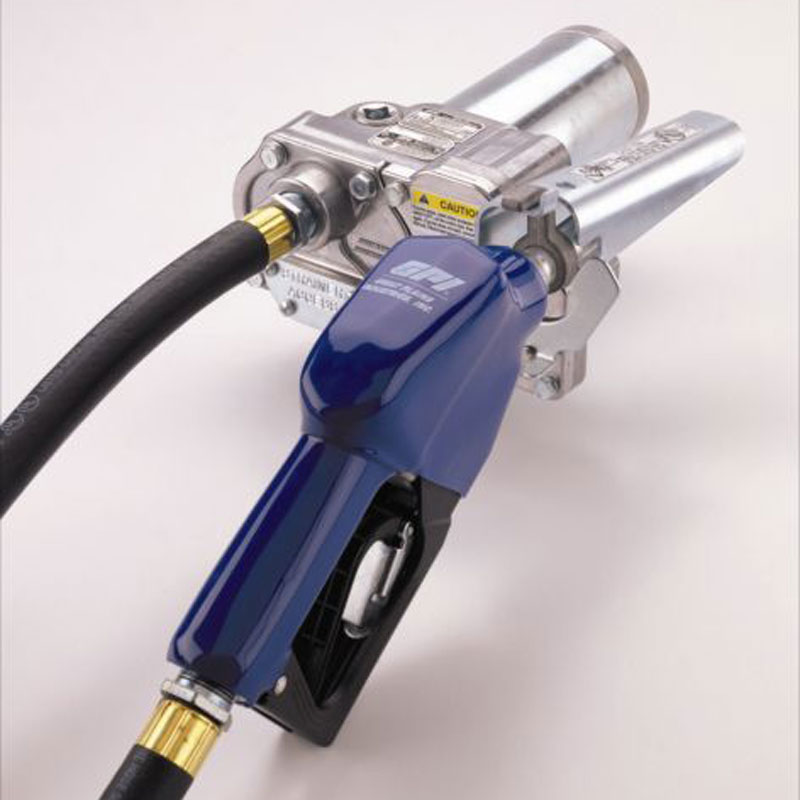

ATIBSM150SAU |
12V 15GPM Fuel Transfer Pump with Automatic Nozzle |
|

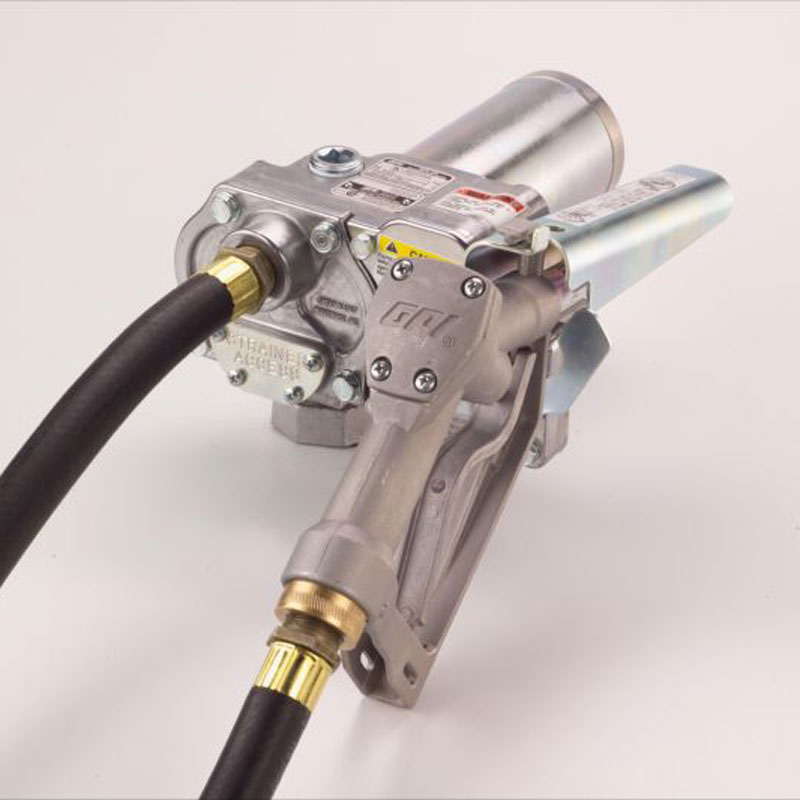

ATIBSM150SMU |
12V 15GPM Fuel Transfer Pump with Manual Nozzle |
|
ATIBSEZ8 |
12V 8GPM Fuel Transfer Pump with Manual Nozzle |
|

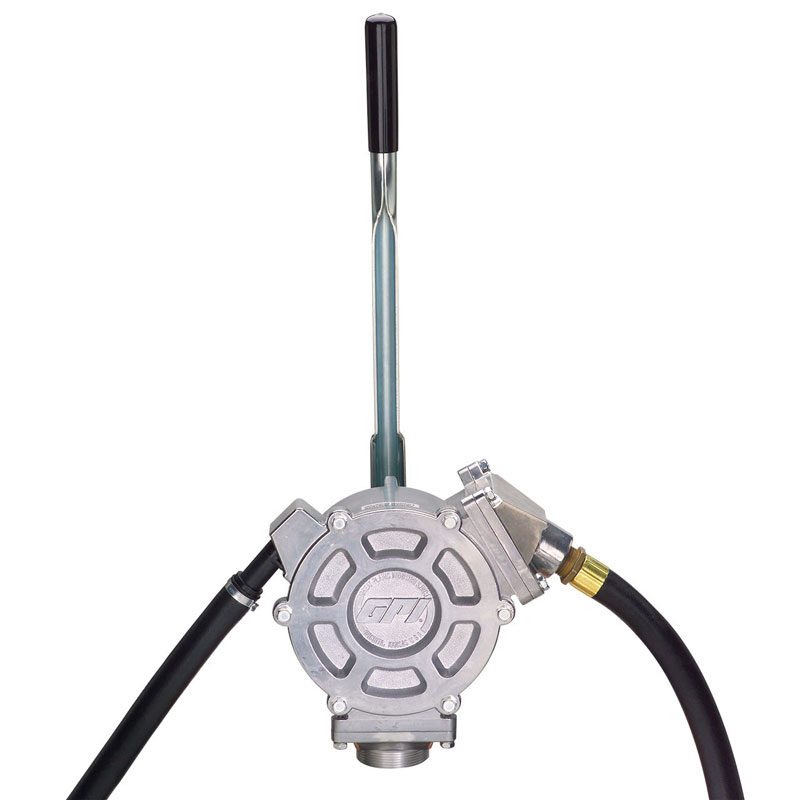

ATIBSHP100UL |
Deluxe Dual Flo Hand Pump, 50 Gallon Per 100 Strokes |
